Face Mill Holders FMH — specifications

Face Mill Holders FMH for indexable face milling cutters. Precision piloted design with driving keys for heavy-duty milling.

Standard:

DIN 6357

Shank types:

HSK-A, BT, SK / ISO

Manufacturer:

PTP CNC Toolings Pvt. Ltd., Belgaum, India

Ordering codes:

Full specification table for Face Mill Holders FMH
Ordering Code	Shank	Size	Bore / Tool Ø (d)	Body Ø (C)	Gauge Length (GPL)	H	Cutter Ø	Spindle Taper	Projection (L)	pcd
47HSKA50FMH1650	HSK-A	50	16 mm	34 mm	50 mm	17 mm	40 mm	—	—	—
47HSKA50FMH2260	HSK-A	50	22 mm	45 mm	60 mm	19 mm	50, 63 mm	—	—	—
47HSKA50FMH2760	HSK-A	50	27 mm	58 mm	60 mm	21 mm	80 mm	—	—	—
47HSKA50FMH3260	HSK-A	50	32 mm	78 mm	60 mm	24 mm	100 mm	—	—	—
47HSKA63FMH1645	HSK-A	63	16 mm	34 mm	45 mm	17 mm	40 mm	—	—	—
47HSKA63FMH2250	HSK-A	63	22 mm	45 mm	50 mm	19 mm	50, 63 mm	—	—	—
47HSKA63FMH2755	HSK-A	63	27 mm	58 mm	55 mm	21 mm	80 mm	—	—	—
47HSKA63FMH3260	HSK-A	63	32 mm	78 mm	60 mm	24 mm	100 mm	—	—	—
47HSKA63FMH4065	HSK-A	63	40 mm	88 mm	65 mm	27 mm	125 mm	—	—	—
47HSKA100FMH1655	HSK-A	100	16 mm	34 mm	55 mm	17 mm	40 mm	—	—	—
47HSKA100FMH2255	HSK-A	100	22 mm	45 mm	55 mm	19 mm	50, 63 mm	—	—	—
47HSKA100FMH2755	HSK-A	100	27 mm	58 mm	55 mm	21 mm	80 mm	—	—	—
47HSKA100FMH3260	HSK-A	100	32 mm	78 mm	60 mm	24 mm	100 mm	—	—	—
47HSKA100FMH4065	HSK-A	100	40 mm	88 mm	65 mm	27 mm	125 mm	—	—	—
47BT30FMH1630	BT	—	16 mm	34 mm	30 mm	17 mm	40 mm	30	17 mm	—
47ISO30FMH1630	SK / ISO	—	16 mm	34 mm	30 mm	17 mm	40 mm	30	17 mm	—
47BT30FMH2230	BT	—	22 mm	45 mm	30 mm	19 mm	50, 63 mm	30	19 mm	—
47ISO30FMH2230	SK / ISO	—	22 mm	45 mm	30 mm	19 mm	50, 63 mm	30	19 mm	—
47BT30FMH2745	BT	—	27 mm	58 mm	45 mm	21 mm	80 mm	30	21 mm	—
47ISO30FMH2745	SK / ISO	—	27 mm	58 mm	45 mm	21 mm	80 mm	30	21 mm	—
47BT40FMH1645	BT	—	16 mm	34 mm	45 mm	17 mm	40 mm	40	17 mm	—
47ISO40FMH1645	SK / ISO	—	16 mm	34 mm	45 mm	17 mm	40 mm	40	17 mm	—
47BT40FMH2245	BT	—	22 mm	45 mm	45 mm	19 mm	50, 63 mm	40	19 mm	—
47ISO40FMH2245	SK / ISO	—	22 mm	45 mm	45 mm	19 mm	50, 63 mm	40	19 mm	—
47BT40FMH2745	BT	—	27 mm	58 mm	45 mm	21 mm	80 mm	40	21 mm	—
47ISO40FMH2745	SK / ISO	—	27 mm	58 mm	45 mm	21 mm	80 mm	40	21 mm	—
47BT40FMH3260	BT	—	32 mm	78 mm	60 mm	24 mm	100 mm	40	24 mm	—
47ISO40FMH3260	SK / ISO	—	32 mm	78 mm	60 mm	24 mm	100 mm	40	24 mm	—
47BT40FMH4060	BT	—	40 mm	88 mm	60 mm	27 mm	125, 160 mm	40	27 mm	—
47ISO40FMH4060	SK / ISO	—	40 mm	88 mm	60 mm	27 mm	125, 160 mm	40	27 mm	—
47BT40FMH40F60	BT	—	40F	88 mm	60 mm	27 mm	125, 160 mm	40	27 mm	66.7
47ISO40FMH40F60	SK / ISO	—	40F	88 mm	60 mm	27 mm	125, 160 mm	40	27 mm	66.7
47BT50FMH1660	BT	—	16 mm	34 mm	60 mm	17 mm	40 mm	50	17 mm	—
47ISO50FMH1660	SK / ISO	—	16 mm	34 mm	60 mm	17 mm	40 mm	50	17 mm	—
47BT50FMH2260	BT	—	22 mm	45 mm	60 mm	19 mm	50, 63 mm	50	19 mm	—
47ISO50FMH2260	SK / ISO	—	22 mm	45 mm	60 mm	19 mm	50, 63 mm	50	19 mm	—
47BT50FMH2760	BT	—	27 mm	58 mm	60 mm	21 mm	80 mm	50	21 mm	—
47ISO50FMH2760	SK / ISO	—	27 mm	58 mm	60 mm	21 mm	80 mm	50	21 mm	—
47BT50FMH3260	BT	—	32 mm	78 mm	60 mm	24 mm	100 mm	50	24 mm	—
47ISO50FMH3260	SK / ISO	—	32 mm	78 mm	60 mm	24 mm	100 mm	50	24 mm	—
47BT50FMH4060	BT	—	40 mm	88 mm	60 mm	27 mm	125, 160 mm	50	27 mm	—
47ISO50FMH4060	SK / ISO	—	40 mm	88 mm	60 mm	27 mm	125, 160 mm	50	27 mm	—
47BT50FMH40F60	BT	—	40F	88 mm	60 mm	27 mm	125, 160 mm	50	27 mm	66.7
47ISO50FMH40F60	SK / ISO	—	40F	88 mm	60 mm	27 mm	125, 160 mm	50	27 mm	66.7
47BT50FMH6075	BT	—	60 mm	128 mm	75 mm	27 mm	250 mm	50	27 mm	101.6
47ISO50FMH6075	SK / ISO	—	60 mm	128 mm	75 mm	27 mm	250 mm	50	27 mm	101.6

Frequently asked questions

What is the Face Mill Holders FMH?

Face Mill Holders FMH (DIN 6357) is a precision CNC Tool Holders product manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned. Face Mill Holders FMH for indexable face milling cutters. Precision piloted design with driving keys for heavy-duty milling.

Which shank types are available for Face Mill Holders FMH?

Face Mill Holders FMH is available in HSK-A, BT, SK / ISO shanks. Across these shanks there are 46 catalogue ordering codes to choose from.

What standard does the Face Mill Holders FMH conform to?

The Face Mill Holders FMH conforms to DIN 6357. Every unit is MPT-tested (Magnetic Particle Testing) and proof-tested at 2.5× clamping force before dispatch.

Who manufactures the Face Mill Holders FMH and where?

Face Mill Holders FMH is manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned. Contact sales at +91-9538456478 or ptpcnc@ptpcnctoolings.com for pricing, DXF/STEP CAD files, and lead times.

+91 95384 56478 ptpcnc@ptpcnctoolings.com

Belgaum, India

PTPCNC

Toolings Pvt. Ltd.

Precision Tooling Since 1985

Get Quote

Face Mill Holders FMH

Name: Face Mill Holders FMH
Brand: PTP CNC Toolings
Availability: InStock

DIN 6357 · Cat. Pages 52-54

Also Made in Shanks: CAT ANSI/ASME B5.50 | ISO 12164-1 (DIN 69893-1) HSK | DIN 2080 - IS 2340

VariantAll FMH FMH WITH PCD

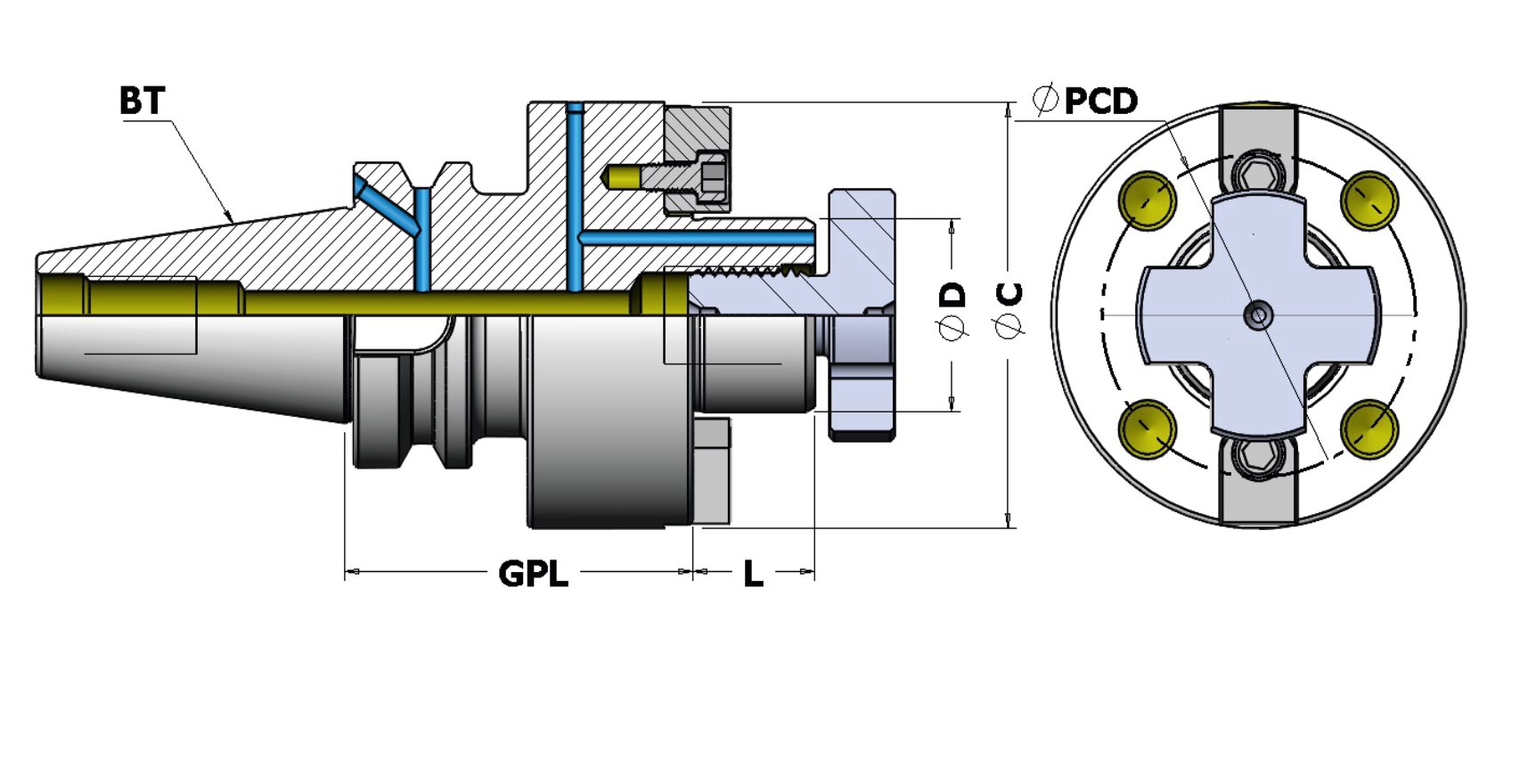

FMH WITH PCDTechnical Drawing

Drag to pan · scroll to zoom · double-click to fit

HSK-A Technical Drawing

HSK-A Face Mill Holders Ordering Table

Ordering Codes — Face Mill Holders FMH (HSK-A)

All dimensions in mm

0 codes

Stock	Actions

BT & SK/ISO Technical Drawing

BT & SK/ISO Face Mill Holders Full Ordering Codes

BT & SK/ISO Ordering Codes

MAS BT (ISO 7388-2-J) · DIN 69871 (ISO 7388-1-A)

3 codes

All dimensions in mm. Form: AD. FCC (Face Coolant Channel) made on demand.

Taper

Taper	BT Code	ISO/SK Code	d	C	H	L	PCD	Cutter Ø	GPL	FIG	Screws	Form	Stock
40	47BT40FMH40F60	47ISO40FMH40F60	40F	88	27	27	66.7	125, 160	60	FIG 2	2	AD	—
50	47BT50FMH40F60	47ISO50FMH40F60	40F	88	27	27	66.7	125, 160	60	FIG 2	2	AD	—
50	47BT50FMH6075	47ISO50FMH6075	60	128	27	27	101.6	250	75	---	—	AD	—

Specifications

taper

AT3 or Better

tir

TIR of Tool Receiver wrt Shank Taper - 0.005 max

balance

Pre-Balanced G6.3 @ 8000 rpm Standard

fine Balance

Fine Balanced G2.5 @ 15000 rpm On Demand

forms

Standard Forms Made - AD, AD+B

fcc

FCC - Face Coolant Channel - Made on Demand
