Shrink Fit Holders Slim SFS — specifications

Shrink Fit Slim Holders SFS for carbide cutters with h6 shank. Slim profile for reaching tight spaces and deep cavities. Requires Heat Shrink Machine.

Standard:

MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A)

Shank types:

BT, SK / ISO

Manufacturer:

PTP CNC Toolings Pvt. Ltd., Belgaum, India

Ordering codes:

Full specification table for Shrink Fit Holders Slim SFS
Ordering Code	Shank	Spindle Taper	Bore / Tool Ø (d)	Body Ø (d1)	Body Ø (C)	Gauge Length (GPL)	Screw Thread	Projection (L)
47BT30SFS0680	BT	30	6 mm	12 mm	18 mm	80 mm	M5	36 mm
47ISO30SFS0680	SK / ISO	30	6 mm	12 mm	18 mm	80 mm	M5	36 mm
47BT30SFS0880	BT	30	8 mm	14 mm	20 mm	80 mm	M6	36 mm
47ISO30SFS0880	SK / ISO	30	8 mm	14 mm	20 mm	80 mm	M6	36 mm
47BT30SFS1080	BT	30	10 mm	16 mm	22 mm	80 mm	M8	42 mm
47ISO30SFS1080	SK / ISO	30	10 mm	16 mm	22 mm	80 mm	M8	42 mm
47BT30SFS1280	BT	30	12 mm	18 mm	24 mm	80 mm	M10	47 mm
47ISO30SFS1280	SK / ISO	30	12 mm	18 mm	24 mm	80 mm	M10	47 mm
47BT30SFS1480	BT	30	14 mm	20 mm	26 mm	80 mm	M10	47 mm
47ISO30SFS1480	SK / ISO	30	14 mm	20 mm	26 mm	80 mm	M10	47 mm
47BT30SFS1680	BT	30	16 mm	22 mm	28 mm	80 mm	M12	50 mm
47ISO30SFS1680	SK / ISO	30	16 mm	22 mm	28 mm	80 mm	M12	50 mm
47BT30SFS1880	BT	30	18 mm	24 mm	30 mm	80 mm	M12	50 mm
47ISO30SFS1880	SK / ISO	30	18 mm	24 mm	30 mm	80 mm	M12	50 mm
47BT30SFS2080	BT	30	20 mm	28 mm	36 mm	80 mm	M16	52 mm
47ISO30SFS2080	SK / ISO	30	20 mm	28 mm	36 mm	80 mm	M16	52 mm
47BT40SFS0690	BT	40	6 mm	12 mm	18 mm	90 mm	M5	36 mm
47ISO40SFS0690	SK / ISO	40	6 mm	12 mm	18 mm	90 mm	M5	36 mm
47BT40SFS0890	BT	40	8 mm	14 mm	20 mm	90 mm	M6	36 mm
47ISO40SFS0890	SK / ISO	40	8 mm	14 mm	20 mm	90 mm	M6	36 mm
47BT40SFS1090	BT	40	10 mm	16 mm	22 mm	90 mm	M8	42 mm
47ISO40SFS1090	SK / ISO	40	10 mm	16 mm	22 mm	90 mm	M8	42 mm
47BT40SFS1290	BT	40	12 mm	18 mm	24 mm	90 mm	M10	47 mm
47ISO40SFS1290	SK / ISO	40	12 mm	18 mm	24 mm	90 mm	M10	47 mm
47BT40SFS1490	BT	40	14 mm	20 mm	26 mm	90 mm	M10	47 mm
47ISO40SFS1490	SK / ISO	40	14 mm	20 mm	26 mm	90 mm	M10	47 mm
47BT40SFS1690	BT	40	16 mm	22 mm	28 mm	90 mm	M12	50 mm
47ISO40SFS1690	SK / ISO	40	16 mm	22 mm	28 mm	90 mm	M12	50 mm
47BT40SFS1890	BT	40	18 mm	24 mm	30 mm	90 mm	M12	50 mm
47ISO40SFS1890	SK / ISO	40	18 mm	24 mm	30 mm	90 mm	M12	50 mm
47BT40SFS2090	BT	40	20 mm	28 mm	36 mm	90 mm	M16	52 mm
47ISO40SFS2090	SK / ISO	40	20 mm	28 mm	36 mm	90 mm	M16	52 mm
47BT50SFS06100	BT	50	6 mm	12 mm	18 mm	100 mm	M5	36 mm
47ISO50SFS06100	SK / ISO	50	6 mm	12 mm	18 mm	100 mm	M5	36 mm
47BT50SFS08100	BT	50	8 mm	14 mm	20 mm	100 mm	M6	36 mm
47ISO50SFS08100	SK / ISO	50	8 mm	14 mm	20 mm	100 mm	M6	36 mm
47BT50SFS10100	BT	50	10 mm	16 mm	22 mm	100 mm	M8	42 mm
47ISO50SFS10100	SK / ISO	50	10 mm	16 mm	22 mm	100 mm	M8	42 mm
47BT50SFS12100	BT	50	12 mm	18 mm	24 mm	100 mm	M10	47 mm
47ISO50SFS12100	SK / ISO	50	12 mm	18 mm	24 mm	100 mm	M10	47 mm
47BT50SFS14100	BT	50	14 mm	20 mm	26 mm	100 mm	M10	47 mm
47ISO50SFS14100	SK / ISO	50	14 mm	20 mm	26 mm	100 mm	M10	47 mm
47BT50SFS16100	BT	50	16 mm	22 mm	28 mm	100 mm	M12	50 mm
47ISO50SFS16100	SK / ISO	50	16 mm	22 mm	28 mm	100 mm	M12	50 mm
47BT50SFS18100	BT	50	18 mm	24 mm	30 mm	100 mm	M12	50 mm
47ISO50SFS18100	SK / ISO	50	18 mm	24 mm	30 mm	100 mm	M12	50 mm
47BT50SFS20100	BT	50	20 mm	28 mm	36 mm	100 mm	M16	52 mm
47ISO50SFS20100	SK / ISO	50	20 mm	28 mm	36 mm	100 mm	M16	52 mm

Frequently asked questions

What is the Shrink Fit Holders Slim SFS?

Shrink Fit Holders Slim SFS (MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A)) is a precision CNC Tool Holders product manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned. Shrink Fit Slim Holders SFS for carbide cutters with h6 shank. Slim profile for reaching tight spaces and deep cavities. Requires Heat Shrink Machine.

Which shank types are available for Shrink Fit Holders Slim SFS?

Shrink Fit Holders Slim SFS is available in BT, SK / ISO shanks. Across these shanks there are 48 catalogue ordering codes to choose from.

What standard does the Shrink Fit Holders Slim SFS conform to?

The Shrink Fit Holders Slim SFS conforms to MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A). Every unit is MPT-tested (Magnetic Particle Testing) and proof-tested at 2.5× clamping force before dispatch.

Who manufactures the Shrink Fit Holders Slim SFS and where?

Shrink Fit Holders Slim SFS is manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned. Contact sales at +91-9538456478 or ptpcnc@ptpcnctoolings.com for pricing, DXF/STEP CAD files, and lead times.

Shrink Fit Holders Slim SFS

MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A) · Cat. Pages 63-64

Also Made in Shanks: CAT ANSI/ASME B5.50 | ISO 12164-1 (DIN 69893-1) HSK | DIN 2080 - IS 2340

For Carbide Cutters with h6 Shank
Slim Profile for Deep Cavity Access
Requires Heat Shrink Machine
Available at PTP CNC Plant-1

Shrink Fit Holders Slim SFS

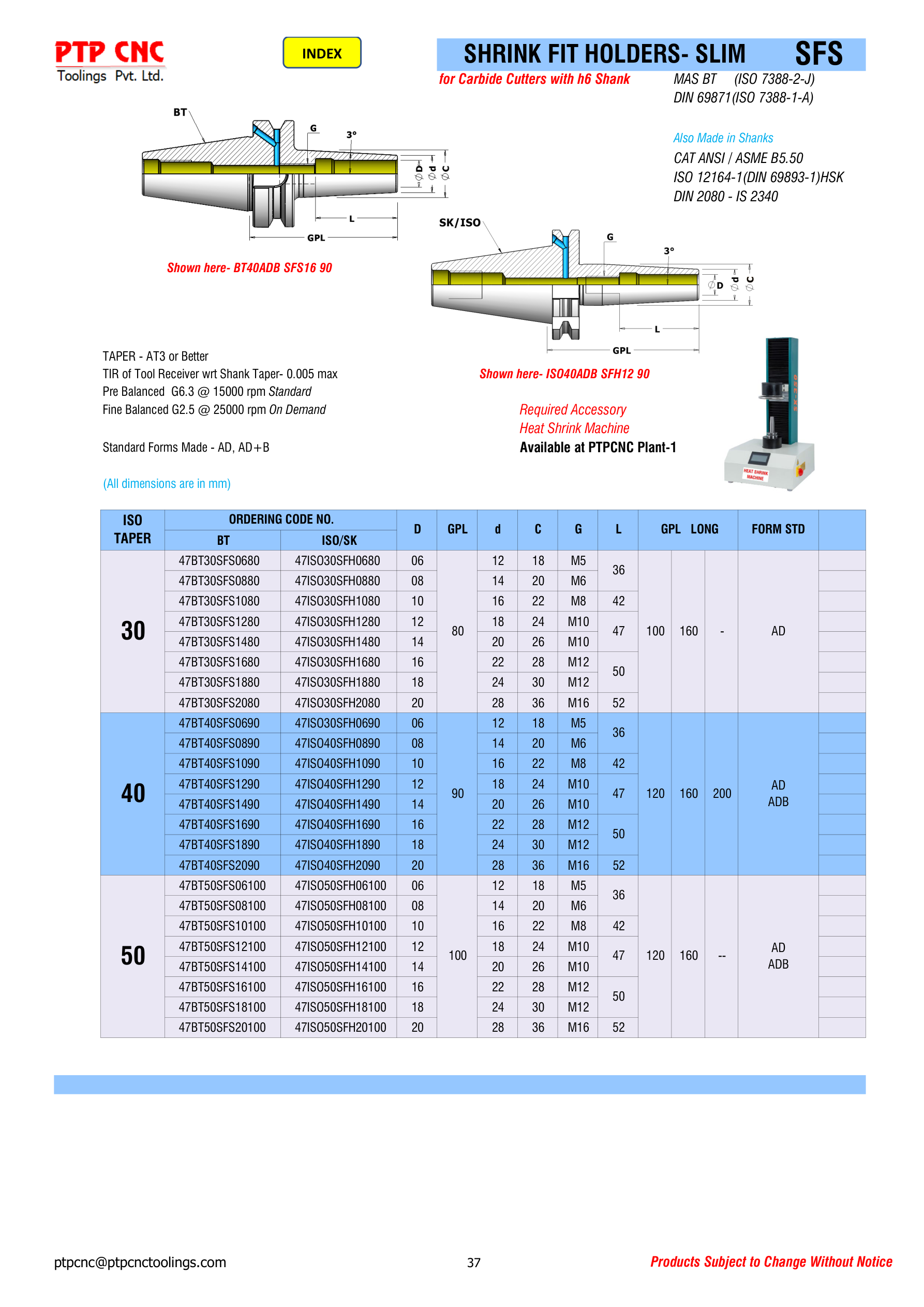

DrawingTechnical Drawing
