CAT

CAT Tool Holders — All Product Types

11 product types available in the CAT shank family. Click any diagram to open the full spec table and interactive view.

CAT

ER

01

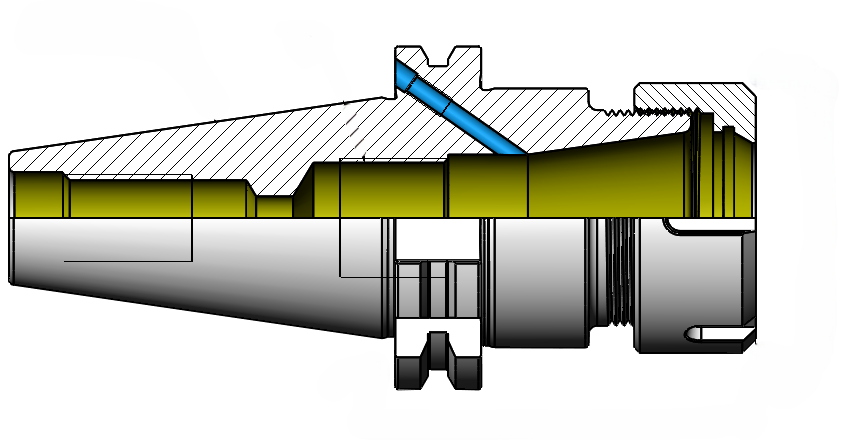

ER Collet Chucks

Precision ER collet chucks — DIN 6499, all common sizes

Cat. pages 45, 46

CAT

ER-M

02

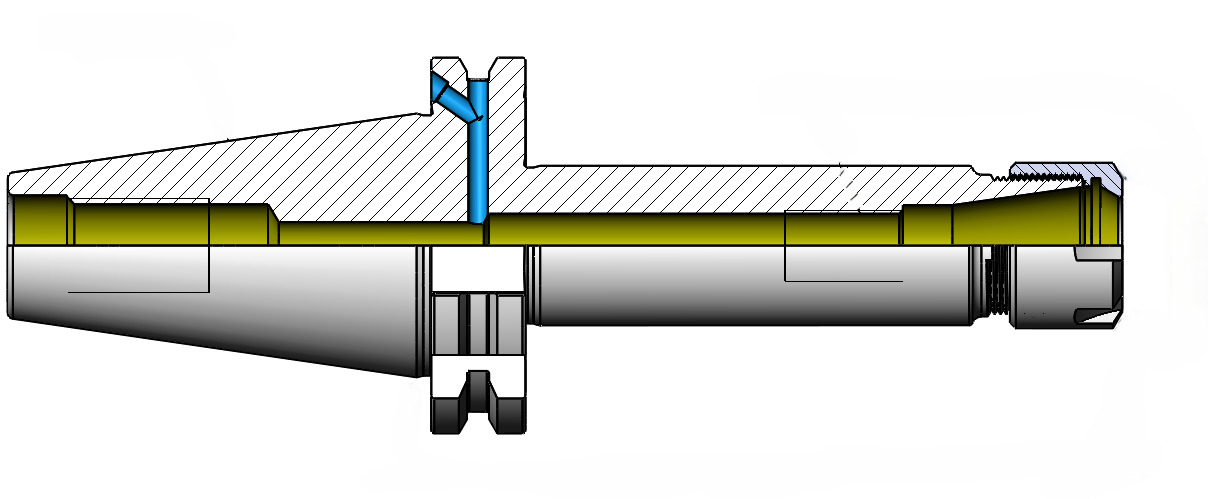

Mini Collet Chucks ER-M

Long mini-pencil ER chucks — for confined-space and small-tool work

Cat. pages 47, 48

CAT

WE

03

End Mill Holders WE

Weldon DIN 1835-B side-lock end-mill holders — DIN 6359

Cat. pages 49, 50, 51

CAT

FMH

04

Face Mill Holders FMH

Face / shell mill holders — DIN 6357

Cat. pages 52, 53, 54

CAT

CSMA

05

Combi Shell Mill Adapters CSMA

Combi shell mill adapters — DIN 6358 / IS:8615

Cat. pages 55

CAT

MTA

06

Morse Taper Adapters MTA

Morse taper drill adapters — DIN 6388 / IS:5927

Cat. pages 56, 57, 58

CAT

TMA

07

Threaded Mill Adapters TMA

Threaded mill adapters — DIN 6388 / IS:5927

Cat. pages 59, 60

CAT

SFH

08

Shrink-Fit Holders SFH

Shrink-fit holders for h6 carbide cutters

Cat. pages 61, 62

CAT

SFH SLIM

09

Shrink Fit Holders SFH SLIM

Slim profile shrink-fit holders for confined-space machining

Cat. pages 63, 64

CAT

BBB

10

Boring Bar Blanks BBB

Boring bar blanks — for custom boring-tool builds

Cat. pages 65, 66

CAT

HYDH

11

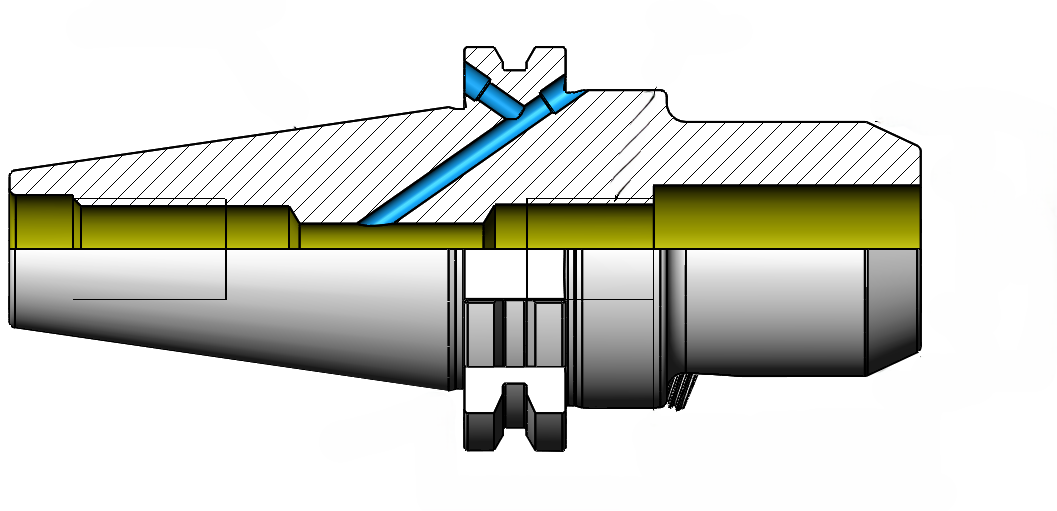

Hydrogrip Chucks HYDH (Heavy Duty)

Heavy-duty hydraulic chucks — TIR 0.003 max, high clamping force

Cat. pages 72, 73
