Combi Shell Mill Adapters CSMA

Name: Combi Shell Mill Adapters CSMA
Brand: PTP CNC Toolings
Availability: InStock

Combi Shell Mill Adapters CSMA — specifications

Combi Shell Mill Adapters CSMA for shell end mills. Compatible with DIN 6358 / IS:8615 standard cutter bores.

Standard:

DIN 6358 (IS:8615)

Shank types:

HSK-A, BT, SK / ISO

Manufacturer:

PTP CNC Toolings Pvt. Ltd., Belgaum, India

Ordering codes:

Full specification table for Combi Shell Mill Adapters CSMA
Ordering Code	Shank	Size	Bore / Tool Ø (d)	Body Ø (C)	H	Gauge Length (GPL)	Pilot Ø	Spindle Taper
47HSKA50CSMA1650	HSK-A	50	16 mm	32 mm	27 mm	50 mm	17 mm	—
47HSKA50CSMA2255	HSK-A	50	22 mm	40 mm	31 mm	55 mm	19 mm	—
47HSKA50CSMA2765	HSK-A	50	27 mm	48 mm	33 mm	65 mm	21 mm	—
47HSKA50CSMA3265	HSK-A	50	32 mm	58 mm	33 mm	65 mm	24 mm	—
47HSKA63CSMA1660	HSK-A	63	16 mm	32 mm	27 mm	60 mm	17 mm	—
47HSKA63CSMA2260	HSK-A	63	22 mm	40 mm	31 mm	60 mm	19 mm	—
47HSKA63CSMA2760	HSK-A	63	27 mm	48 mm	33 mm	60 mm	21 mm	—
47HSKA63CSMA3265	HSK-A	63	32 mm	58 mm	38 mm	65 mm	24 mm	—
47HSKA63CSMA4070	HSK-A	63	40 mm	70 mm	41 mm	70 mm	27 mm	—
47HSKA100CSMA1665	HSK-A	100	16 mm	32 mm	27 mm	65 mm	17 mm	—
47HSKA100CSMA2265	HSK-A	100	22 mm	40 mm	31 mm	65 mm	19 mm	—
47HSKA100CSMA2765	HSK-A	100	27 mm	48 mm	33 mm	65 mm	21 mm	—
47HSKA100CSMA3270	HSK-A	100	32 mm	58 mm	38 mm	70 mm	24 mm	—
47HSKA100CSMA4070	HSK-A	100	40 mm	70 mm	41 mm	70 mm	27 mm	—
47BT30CSMA1650	BT	—	16 mm	32 mm	27 mm	50 mm	17 mm	30
47ISO30CSMA1650	SK / ISO	—	16 mm	32 mm	27 mm	50 mm	17 mm	30
47BT30CSMA2250	BT	—	22 mm	40 mm	31 mm	50 mm	19 mm	30
47ISO30CSMA2250	SK / ISO	—	22 mm	40 mm	31 mm	50 mm	19 mm	30
47BT30CSMA2755	BT	—	27 mm	48 mm	33 mm	55 mm	21 mm	30
47ISO30CSMA2755	SK / ISO	—	27 mm	48 mm	33 mm	55 mm	21 mm	30
47BT40CSMA1660	BT	—	16 mm	32 mm	27 mm	60 mm	17 mm	40
47ISO40CSMA1660	SK / ISO	—	16 mm	32 mm	27 mm	60 mm	17 mm	40
47BT40CSMA2260	BT	—	22 mm	40 mm	31 mm	60 mm	19 mm	40
47ISO40CSMA2260	SK / ISO	—	22 mm	40 mm	31 mm	60 mm	19 mm	40
47BT40CSMA2760	BT	—	27 mm	48 mm	33 mm	60 mm	21 mm	40
47ISO40CSMA2760	SK / ISO	—	27 mm	48 mm	33 mm	60 mm	21 mm	40
47BT40CSMA3260	BT	—	32 mm	58 mm	38 mm	60 mm	24 mm	40
47ISO40CSMA3260	SK / ISO	—	32 mm	58 mm	38 mm	60 mm	24 mm	40
47BT40CSMA4060	BT	—	40 mm	70 mm	41 mm	60 mm	27 mm	40
47ISO40CSMA4060	SK / ISO	—	40 mm	70 mm	41 mm	60 mm	27 mm	40
47BT50CSMA1670	BT	—	16 mm	32 mm	27 mm	70 mm	17 mm	50
47ISO50CSMA1670	SK / ISO	—	16 mm	32 mm	27 mm	70 mm	17 mm	50
47BT50CSMA2270	BT	—	22 mm	40 mm	31 mm	70 mm	19 mm	50
47ISO50CSMA2270	SK / ISO	—	22 mm	40 mm	31 mm	70 mm	19 mm	50
47BT50CSMA2770	BT	—	27 mm	48 mm	33 mm	70 mm	21 mm	50
47ISO50CSMA2770	SK / ISO	—	27 mm	48 mm	33 mm	70 mm	21 mm	50
47BT50CSMA3270	BT	—	32 mm	58 mm	38 mm	70 mm	24 mm	50
47ISO50CSMA3270	SK / ISO	—	32 mm	58 mm	38 mm	70 mm	24 mm	50
47BT50CSMA4070	BT	—	40 mm	70 mm	41 mm	70 mm	27 mm	50
47ISO50CSMA4070	SK / ISO	—	40 mm	70 mm	41 mm	70 mm	27 mm	50

Frequently asked questions

What is the Combi Shell Mill Adapters CSMA?

Combi Shell Mill Adapters CSMA (DIN 6358 (IS:8615)) is a precision CNC Tool Holders product manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned. Combi Shell Mill Adapters CSMA for shell end mills. Compatible with DIN 6358 / IS:8615 standard cutter bores.

Which shank types are available for Combi Shell Mill Adapters CSMA?

Combi Shell Mill Adapters CSMA is available in HSK-A, BT, SK / ISO shanks. Across these shanks there are 40 catalogue ordering codes to choose from.

What standard does the Combi Shell Mill Adapters CSMA conform to?

The Combi Shell Mill Adapters CSMA conforms to DIN 6358 (IS:8615). Every unit is MPT-tested (Magnetic Particle Testing) and proof-tested at 2.5× clamping force before dispatch.

Who manufactures the Combi Shell Mill Adapters CSMA and where?

Combi Shell Mill Adapters CSMA is manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned. Contact sales at +91-9538456478 or ptpcnc@ptpcnctoolings.com for pricing, DXF/STEP CAD files, and lead times.

HSK-A Technical Drawing

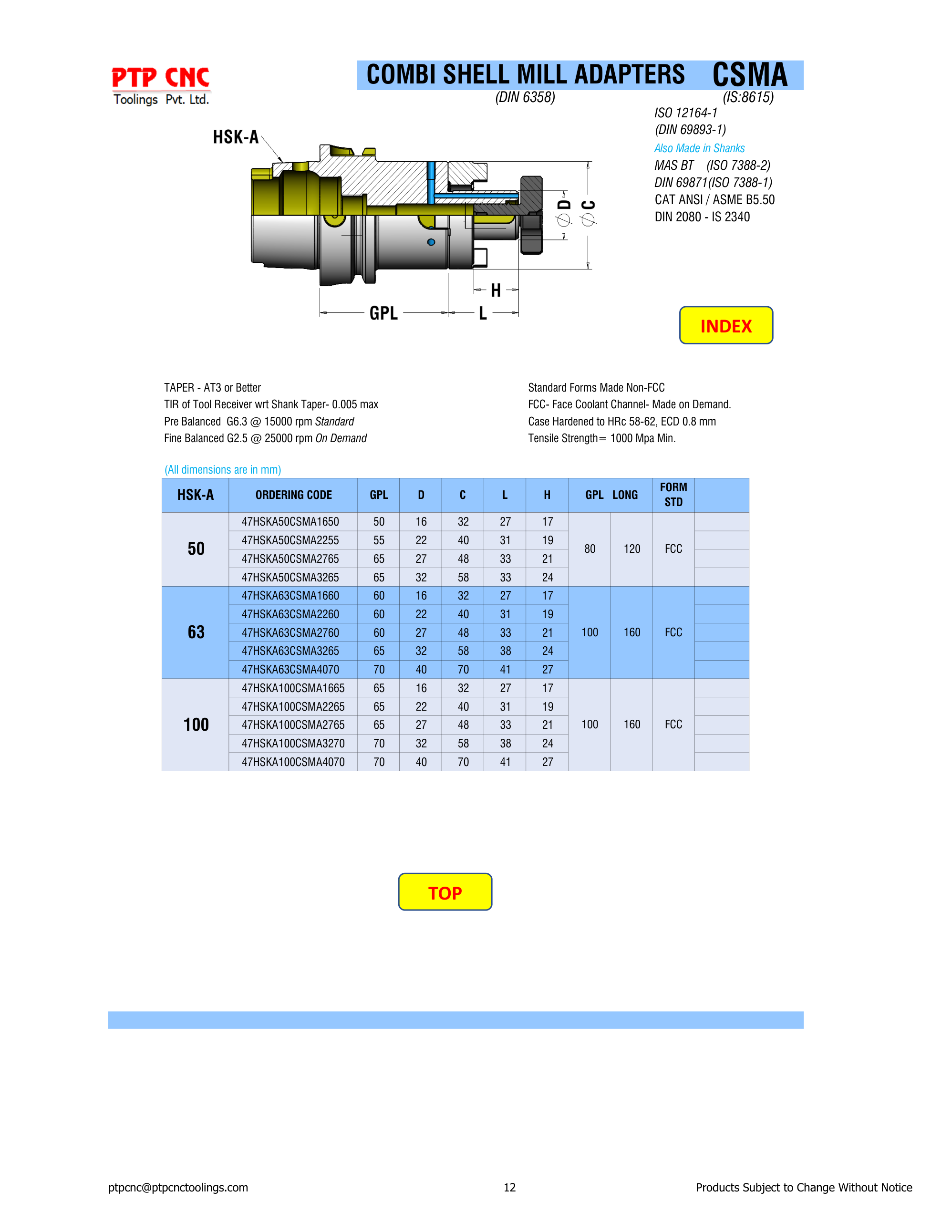

HSK-A Combi Shell Mill Ordering Table

Ordering Codes — Combi Shell Mill Adapters CSMA (HSK-A)

All dimensions in mm

14 codes

HSK Size

Ordering Code	Size	d	C	H	GPL	Pilot Ø	Stock
47HSKA50CSMA1650	HSK-A 50	16	32	27	50	17	—
47HSKA50CSMA2255	HSK-A 50	22	40	31	55	19	—
47HSKA50CSMA2765	HSK-A 50	27	48	33	65	21	—
47HSKA50CSMA3265	HSK-A 50	32	58	33	65	24	—
47HSKA63CSMA1660	HSK-A 63	16	32	27	60	17	—
47HSKA63CSMA2260	HSK-A 63	22	40	31	60	19	—
47HSKA63CSMA2760	HSK-A 63	27	48	33	60	21	—
47HSKA63CSMA3265	HSK-A 63	32	58	38	65	24	—
47HSKA63CSMA4070	HSK-A 63	40	70	41	70	27	—
47HSKA100CSMA1665	HSK-A 100	16	32	27	65	17	—
47HSKA100CSMA2265	HSK-A 100	22	40	31	65	19	—
47HSKA100CSMA2765	HSK-A 100	27	48	33	65	21	—
47HSKA100CSMA3270	HSK-A 100	32	58	38	70	24	—
47HSKA100CSMA4070	HSK-A 100	40	70	41	70	27	—

BT & SK/ISO Technical Drawing

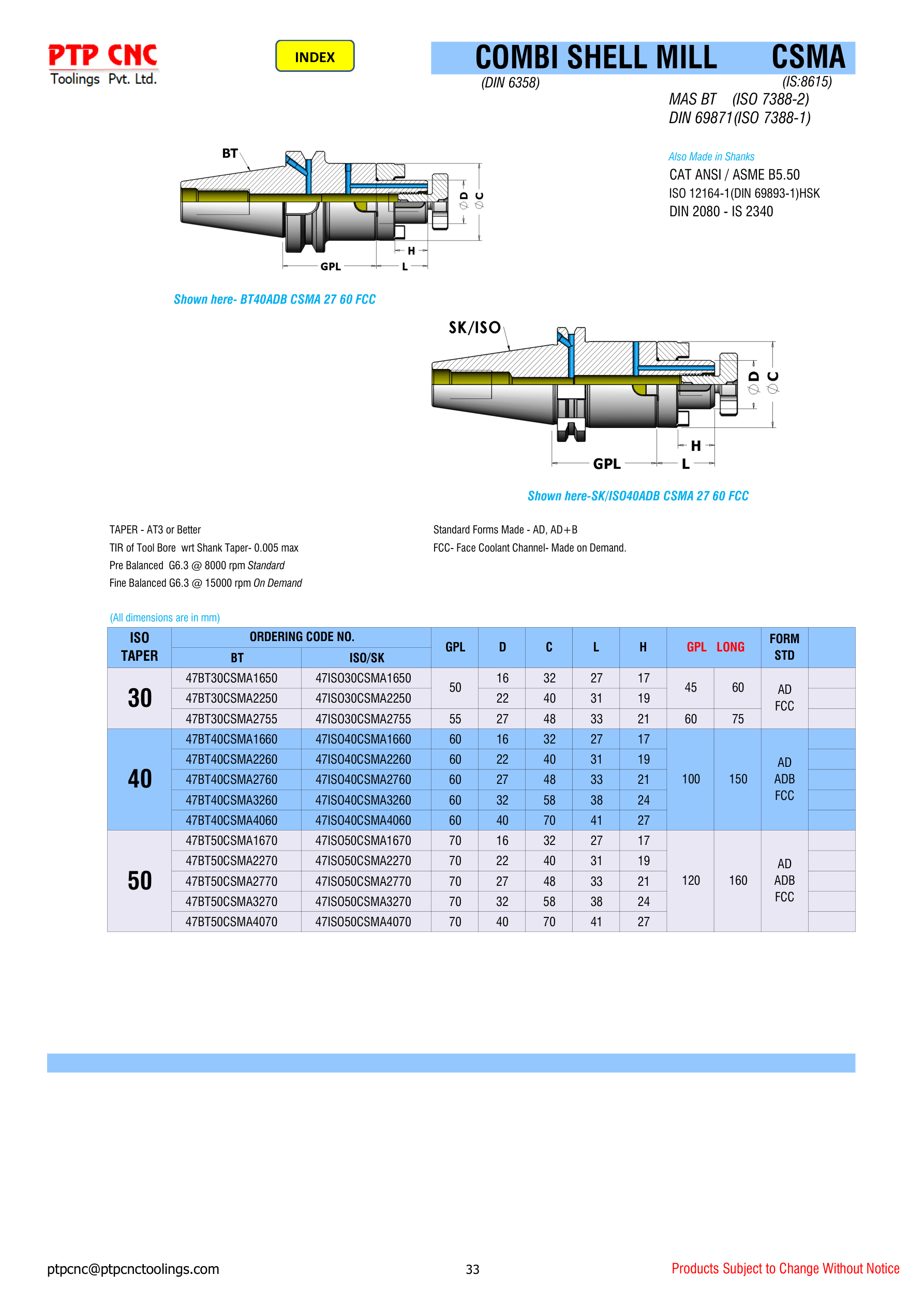

BT & SK/ISO Combi Shell Mill Full Ordering Codes

BT & SK/ISO Ordering Codes

MAS BT (ISO 7388-2-J) · DIN 69871 (ISO 7388-1-A)

13 codes

All dimensions in mm. Form: AD. FCC (Face Coolant Channel) made on demand.

Taper

Taper	BT Code	ISO/SK Code	d	C	H	Pilot Ø	GPL	Form	Stock
30	47BT30CSMA1650	47ISO30CSMA1650	16	32	27	17	50	AD	—
30	47BT30CSMA2250	47ISO30CSMA2250	22	40	31	19	50	AD	—
30	47BT30CSMA2755	47ISO30CSMA2755	27	48	33	21	55	AD	—
40	47BT40CSMA1660	47ISO40CSMA1660	16	32	27	17	60	AD	—
40	47BT40CSMA2260	47ISO40CSMA2260	22	40	31	19	60	AD	—
40	47BT40CSMA2760	47ISO40CSMA2760	27	48	33	21	60	AD	—
40	47BT40CSMA3260	47ISO40CSMA3260	32	58	38	24	60	AD	—
40	47BT40CSMA4060	47ISO40CSMA4060	40	70	41	27	60	AD	—
50	47BT50CSMA1670	47ISO50CSMA1670	16	32	27	17	70	AD	—
50	47BT50CSMA2270	47ISO50CSMA2270	22	40	31	19	70	AD	—
50	47BT50CSMA2770	47ISO50CSMA2770	27	48	33	21	70	AD	—
50	47BT50CSMA3270	47ISO50CSMA3270	32	58	38	24	70	AD	—
50	47BT50CSMA4070	47ISO50CSMA4070	40	70	41	27	70	AD	—

Specifications

taper

AT3 or Better

tir

TIR of Tool Receiver wrt Shank Taper - 0.005 max

balance

Pre-Balanced G6.3 @ 8000 rpm Standard

fine Balance

Fine Balanced G6.3 @ 15000 rpm On Demand

forms

Standard Forms Made - AD, AD+B

fcc

FCC - Face Coolant Channel - Made on Demand
