Threaded Mill Adapters TMA — specifications

Threaded Mill Adapters TMA for threaded shank cutters. Compact design with precise thread engagement for tap holders and thread mills.

Standard:

MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A)

Shank types:

HSK-A, BT, SK / ISO

Manufacturer:

PTP CNC Toolings Pvt. Ltd., Belgaum, India

Ordering codes:

100

Full specification table for Threaded Mill Adapters TMA
Ordering Code	Shank	Size	Bore / Tool Ø (d)	Gauge Length (GPL)	Body Ø (C)	G	Thread	Spindle Taper	Body Ø (d1)
46HSKA50TMA0650	HSK-A	50	6.5 mm	50 mm	11 mm	14.5 mm	M6	—	—
46HSKA50TMA0675	HSK-A	50	6.5 mm	75 mm	11 mm	16 mm	M8	—	—
46HSKA50TMA0850	HSK-A	50	8.5 mm	50 mm	13.5 mm	18.5 mm	M8	—	—
46HSKA50TMA0875	HSK-A	50	8.5 mm	75 mm	13.5 mm	20 mm	M6	—	—
46HSKA50TMA1050	HSK-A	50	10.5 mm	50 mm	18.5 mm	23 mm	M8	—	—
46HSKA50TMA1075	HSK-A	50	10.5 mm	75 mm	18.5 mm	24.5 mm	M8	—	—
46HSKA63TMA0650	HSK-A	63	6.5 mm	50 mm	11 mm	14.5 mm	M6	—	—
46HSKA63TMA0675	HSK-A	63	6.5 mm	75 mm	11 mm	16 mm	M6	—	—
46HSKA63TMA0850	HSK-A	63	8.5 mm	50 mm	13.5 mm	18.5 mm	M8	—	—
46HSKA63TMA0875	HSK-A	63	8.5 mm	75 mm	13.5 mm	20 mm	M8	—	—
46HSKA63TMA08100	HSK-A	63	8.5 mm	100 mm	13.5 mm	21.5 mm	M8	—	—
46HSKA63TMA1050	HSK-A	63	10.5 mm	50 mm	18.5 mm	23 mm	M10	—	—
46HSKA63TMA1075	HSK-A	63	10.5 mm	75 mm	18.5 mm	24.5 mm	M10	—	—
46HSKA63TMA10125	HSK-A	63	10.5 mm	125 mm	18.5 mm	27.5 mm	M10	—	—
46HSKA63TMA10175	HSK-A	63	10.5 mm	175 mm	18.5 mm	37 mm	M10	—	—
46HSKA63TMA1250	HSK-A	63	12.5 mm	50 mm	23 mm	28.5 mm	M12	—	—
46HSKA63TMA1275	HSK-A	63	12.5 mm	75 mm	23 mm	30 mm	M12	—	—
46HSKA63TMA12100	HSK-A	63	12.5 mm	100 mm	23 mm	31.5 mm	M12	—	—
46HSKA63TMA12125	HSK-A	63	12.5 mm	125 mm	23 mm	33 mm	M12	—	—
46HSKA63TMA12175	HSK-A	63	12.5 mm	175 mm	23 mm	42.5 mm	M12	—	—
46HSKA63TMA1650	HSK-A	63	17 mm	50 mm	30 mm	35.5 mm	M16	—	—
46HSKA63TMA1675	HSK-A	63	17 mm	75 mm	30 mm	37 mm	M16	—	—
46HSKA63TMA16100	HSK-A	63	17 mm	100 mm	30 mm	38.5 mm	M16	—	—
46HSKA63TMA16125	HSK-A	63	17 mm	125 mm	30 mm	40.5 mm	M16	—	—
46HSKA63TMA16175	HSK-A	63	17 mm	175 mm	30 mm	42.5 mm	M16	—	—
46HSKA100TMA895	HSK-A	100	8.5 mm	95 mm	13.5 mm	21.5 mm	M8	—	—
46HSKA100TMA1095	HSK-A	100	10.5 mm	95 mm	18.5 mm	23 mm	M10	—	—
46HSKA100TMA1295	HSK-A	100	12.5 mm	95 mm	23 mm	35 mm	M12	—	—
46HSKA100TMA12145	HSK-A	100	12.5 mm	145 mm	23 mm	41 mm	M12	—	—
46HSKA100TMA1695	HSK-A	100	17 mm	95 mm	30 mm	42.5 mm	M16	—	—
46HSKA100TMA16145	HSK-A	100	17 mm	145 mm	30 mm	49 mm	M16	—	—
46HSKA100TMA16195	HSK-A	100	17 mm	195 mm	30 mm	50 mm	M16	—	—
46HSKA100TMA16245	HSK-A	100	17 mm	245 mm	30 mm	55 mm	M16	—	—
46HSKA100TMA16295	HSK-A	100	17 mm	295 mm	30 mm	59.5 mm	M16	—	—
46BT30TMA0660	BT	—	6.5 mm	60 mm	14.5 mm	—	M6	30	11 mm
46ISO30TMA0660	SK / ISO	—	6.5 mm	60 mm	14.5 mm	—	M6	30	11 mm
46BT30TMA0685	BT	—	6.5 mm	85 mm	16 mm	—	M6	30	11 mm
46ISO30TMA0685	SK / ISO	—	6.5 mm	85 mm	16 mm	—	M6	30	11 mm
46BT30TMA0860	BT	—	8.5 mm	60 mm	18.5 mm	—	M8	30	13.5 mm
46ISO30TMA0860	SK / ISO	—	8.5 mm	60 mm	18.5 mm	—	M8	30	13.5 mm
46BT30TMA0885	BT	—	8.5 mm	85 mm	20 mm	—	M8	30	13.5 mm
46ISO30TMA0885	SK / ISO	—	8.5 mm	85 mm	20 mm	—	M8	30	13.5 mm
46BT30TMA1060	BT	—	10.5 mm	60 mm	23 mm	—	M10	30	18.5 mm
46ISO30TMA1060	SK / ISO	—	10.5 mm	60 mm	23 mm	—	M10	30	18.5 mm
46BT30TMA1085	BT	—	10.5 mm	85 mm	24.5 mm	—	M10	30	18.5 mm
46ISO30TMA1085	SK / ISO	—	10.5 mm	85 mm	24.5 mm	—	M10	30	18.5 mm
46BT40TMA0660	BT	—	6.5 mm	60 mm	14.5 mm	—	M6	40	11 mm
46ISO40TMA0660	SK / ISO	—	6.5 mm	60 mm	14.5 mm	—	M6	40	11 mm
46BT40TMA0685	BT	—	6.5 mm	85 mm	16 mm	—	M6	40	11 mm
46ISO40TMA0685	SK / ISO	—	6.5 mm	85 mm	16 mm	—	M6	40	11 mm
46BT40TMA0860	BT	—	8.5 mm	60 mm	18.5 mm	—	M8	40	13.5 mm
46ISO40TMA0860	SK / ISO	—	8.5 mm	60 mm	18.5 mm	—	M8	40	13.5 mm
46BT40TMA0885	BT	—	8.5 mm	85 mm	20 mm	—	M8	40	13.5 mm
46ISO40TMA0885	SK / ISO	—	8.5 mm	85 mm	20 mm	—	M8	40	13.5 mm
46BT40TMA08110	BT	—	8.5 mm	110 mm	21.5 mm	—	M8	40	13.5 mm
46ISO40TMA08110	SK / ISO	—	8.5 mm	110 mm	21.5 mm	—	M8	40	13.5 mm
46BT40TMA1060	BT	—	10.5 mm	60 mm	23 mm	—	M10	40	18.5 mm
46ISO40TMA1060	SK / ISO	—	10.5 mm	60 mm	23 mm	—	M10	40	18.5 mm
46BT40TMA1085	BT	—	10.5 mm	85 mm	24.5 mm	—	M10	40	18.5 mm
46ISO40TMA1085	SK / ISO	—	10.5 mm	85 mm	24.5 mm	—	M10	40	18.5 mm
46BT40TMA10135	BT	—	10.5 mm	135 mm	27.5 mm	—	M10	40	18.5 mm
46ISO40TMA10135	SK / ISO	—	10.5 mm	135 mm	27.5 mm	—	M10	40	18.5 mm
46BT40TMA10185	BT	—	10.5 mm	185 mm	37 mm	—	M10	40	18.5 mm
46ISO40TMA10185	SK / ISO	—	10.5 mm	185 mm	37 mm	—	M10	40	18.5 mm
46BT40TMA1260	BT	—	12.5 mm	60 mm	28.5 mm	—	M12	40	23 mm
46ISO40TMA1260	SK / ISO	—	12.5 mm	60 mm	28.5 mm	—	M12	40	23 mm
46BT40TMA1285	BT	—	12.5 mm	85 mm	30 mm	—	M12	40	23 mm
46ISO40TMA1285	SK / ISO	—	12.5 mm	85 mm	30 mm	—	M12	40	23 mm
46BT40TMA12110	BT	—	12.5 mm	110 mm	31.5 mm	—	M12	40	23 mm
46ISO40TMA12110	SK / ISO	—	12.5 mm	110 mm	31.5 mm	—	M12	40	23 mm
46BT40TMA12135	BT	—	12.5 mm	135 mm	33 mm	—	M12	40	23 mm
46ISO40TMA12135	SK / ISO	—	12.5 mm	135 mm	33 mm	—	M12	40	23 mm
46BT40TMA12185	BT	—	12.5 mm	185 mm	42.5 mm	—	M12	40	23 mm
46ISO40TMA12185	SK / ISO	—	12.5 mm	185 mm	42.5 mm	—	M12	40	23 mm
46BT40TMA1660	BT	—	17 mm	60 mm	35.5 mm	—	M16	40	30 mm
46ISO40TMA1660	SK / ISO	—	17 mm	60 mm	35.5 mm	—	M16	40	30 mm
46BT40TMA1685	BT	—	17 mm	85 mm	37 mm	—	M16	40	30 mm
46ISO40TMA1685	SK / ISO	—	17 mm	85 mm	37 mm	—	M16	40	30 mm
46BT40TMA16110	BT	—	17 mm	110 mm	38.5 mm	—	M16	40	30 mm
46ISO40TMA16110	SK / ISO	—	17 mm	110 mm	38.5 mm	—	M16	40	30 mm
46BT40TMA16135	BT	—	17 mm	135 mm	40.5 mm	—	M16	40	30 mm
46ISO40TMA16135	SK / ISO	—	17 mm	135 mm	40.5 mm	—	M16	40	30 mm
46BT40TMA16185	BT	—	17 mm	185 mm	50 mm	—	M16	40	30 mm
46ISO40TMA16185	SK / ISO	—	17 mm	185 mm	50 mm	—	M16	40	30 mm
46BT50TMA1295	BT	—	12.5 mm	95 mm	35 mm	—	M12	50	23 mm
46ISO50TMA1295	SK / ISO	—	12.5 mm	95 mm	35 mm	—	M12	50	23 mm
46BT50TMA12145	BT	—	12.5 mm	145 mm	41 mm	—	M12	50	23 mm
46ISO50TMA12145	SK / ISO	—	12.5 mm	145 mm	41 mm	—	M12	50	23 mm
46BT50TMA12195	BT	—	12.5 mm	195 mm	42.5 mm	—	M12	50	23 mm
46ISO50TMA12195	SK / ISO	—	12.5 mm	195 mm	42.5 mm	—	M12	50	23 mm
46BT50TMA1695	BT	—	17 mm	95 mm	42.5 mm	—	M16	50	30 mm
46ISO50TMA1695	SK / ISO	—	17 mm	95 mm	42.5 mm	—	M16	50	30 mm
46BT50TMA16145	BT	—	17 mm	145 mm	49 mm	—	M16	50	30 mm
46ISO50TMA16145	SK / ISO	—	17 mm	145 mm	49 mm	—	M16	50	30 mm
46BT50TMA16195	BT	—	17 mm	195 mm	50 mm	—	M16	50	30 mm
46ISO50TMA16195	SK / ISO	—	17 mm	195 mm	50 mm	—	M16	50	30 mm
46BT50TMA16245	BT	—	17 mm	245 mm	55 mm	—	M16	50	30 mm
46ISO50TMA16245	SK / ISO	—	17 mm	245 mm	55 mm	—	M16	50	30 mm
46BT50TMA16295	BT	—	17 mm	295 mm	59.5 mm	—	M16	50	30 mm
46ISO50TMA16295	SK / ISO	—	17 mm	295 mm	59.5 mm	—	M16	50	30 mm

Frequently asked questions

What is the Threaded Mill Adapters TMA?

Threaded Mill Adapters TMA (MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A)) is a precision CNC Tool Holders product manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned. Threaded Mill Adapters TMA for threaded shank cutters. Compact design with precise thread engagement for tap holders and thread mills.

Which shank types are available for Threaded Mill Adapters TMA?

Threaded Mill Adapters TMA is available in HSK-A, BT, SK / ISO shanks. Across these shanks there are 100 catalogue ordering codes to choose from.

What standard does the Threaded Mill Adapters TMA conform to?

The Threaded Mill Adapters TMA conforms to MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A). Every unit is MPT-tested (Magnetic Particle Testing) and proof-tested at 2.5× clamping force before dispatch.

Who manufactures the Threaded Mill Adapters TMA and where?

Threaded Mill Adapters TMA is manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned. Contact sales at +91-9538456478 or ptpcnc@ptpcnctoolings.com for pricing, DXF/STEP CAD files, and lead times.

+91 95384 56478 ptpcnc@ptpcnctoolings.com

Belgaum, India

Threaded Mill Adapters TMA

Name: Threaded Mill Adapters TMA
Brand: PTP CNC Toolings
Availability: InStock

MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A) · Cat. Pages 59-60

Also Made in Shanks: CAT ANSI/ASME B5.50 | ISO 12164-1 (DIN 69893-1) HSK | DIN 2080 - IS 2340

Threaded Mill Adapters TMA

DrawingTechnical Drawing

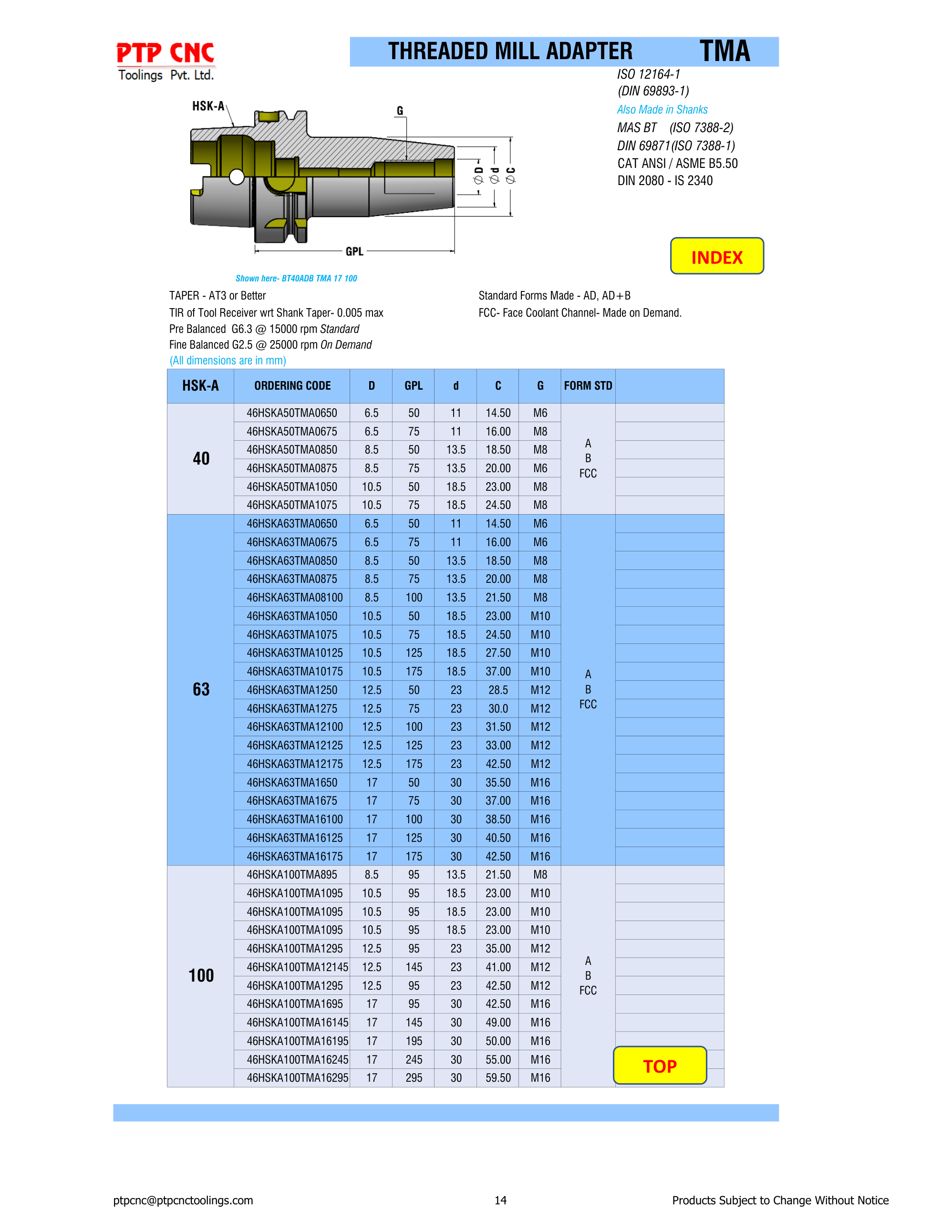

HSK-A Technical Drawing

Ordering Codes — Threaded Mill Adapters TMA (HSK-A)

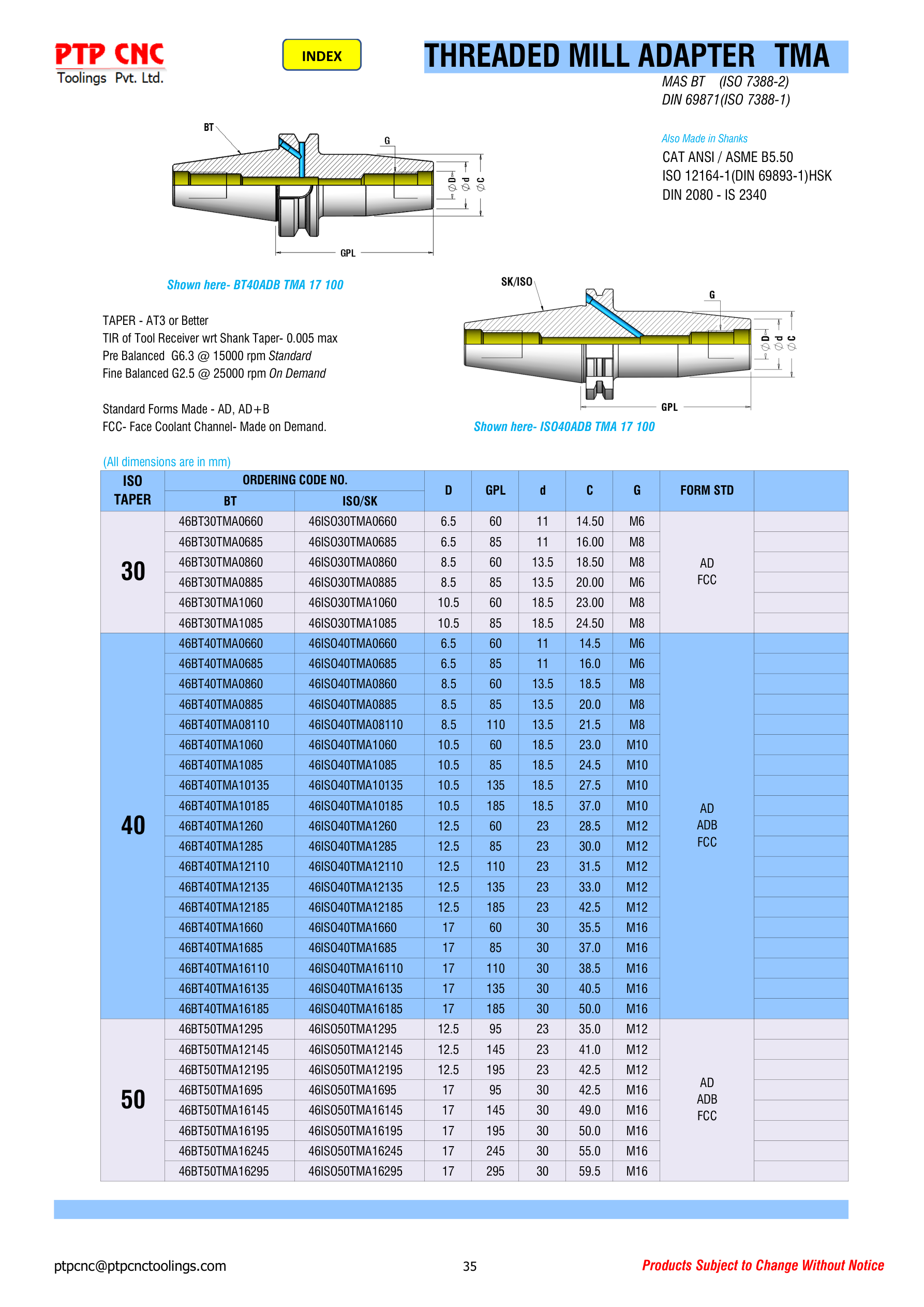

BT & SK/ISO Technical Drawing
