Hydraulic Chucks HYD — specifications

Hydraulic Chucks HYD for precision tool holding with superior vibration damping. Concentricity within 0.003 max for finishing and semi-finishing operations.

Standard:

MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A)

Shank types:

HSK-A, BT, SK / ISO

Manufacturer:

PTP CNC Toolings Pvt. Ltd., Belgaum, India

Ordering codes:

Full specification table for Hydraulic Chucks HYD
Ordering Code	Shank	Size	Bore / Tool Ø (d)	Gauge Length (GPL)	Body Ø (C)	Min. Clamping Length	Spindle Taper	Screw Thread	Projection (L)
47HSKA50HYD0675	HSK-A	50	6 mm	75 mm	26 mm	23 mm	—	—	—
47HSKA50HYD0875	HSK-A	50	8 mm	75 mm	28 mm	24 mm	—	—	—
47HSKA50HYD1080	HSK-A	50	10 mm	80 mm	30 mm	30 mm	—	—	—
47HSKA50HYD1285	HSK-A	50	12 mm	85 mm	32 mm	36 mm	—	—	—
47HSKA50HYD14100	HSK-A	50	14 mm	100 mm	34 mm	40 mm	—	—	—
47HSKA50HYD16100	HSK-A	50	16 mm	100 mm	38 mm	40 mm	—	—	—
47HSKA50HYD18100	HSK-A	50	18 mm	100 mm	40 mm	43 mm	—	—	—
47HSKA50HYD20100	HSK-A	50	20 mm	100 mm	42 mm	43 mm	—	—	—
47HSKA63HYD0680	HSK-A	63	6 mm	80 mm	26 mm	23 mm	—	—	—
47HSKA63HYD0880	HSK-A	63	8 mm	80 mm	28 mm	24 mm	—	—	—
47HSKA63HYD1080	HSK-A	63	10 mm	80 mm	30 mm	30 mm	—	—	—
47HSKA63HYD1290	HSK-A	63	12 mm	90 mm	32 mm	36 mm	—	—	—
47HSKA63HYD1490	HSK-A	63	14 mm	90 mm	34 mm	40 mm	—	—	—
47HSKA63HYD1690	HSK-A	63	16 mm	90 mm	38 mm	40 mm	—	—	—
47HSKA63HYD1895	HSK-A	63	18 mm	95 mm	40 mm	43 mm	—	—	—
47HSKA63HYD2095	HSK-A	63	20 mm	95 mm	42 mm	43 mm	—	—	—
47HSKA63HYD25105	HSK-A	63	25 mm	105 mm	53 mm	46 mm	—	—	—
47HSKA63HYD32110	HSK-A	63	32 mm	110 mm	60 mm	51 mm	—	—	—
47HSKA100HYD0690	HSK-A	100	6 mm	90 mm	42 mm	23 mm	—	—	—
47HSKA100HYD0890	HSK-A	100	8 mm	90 mm	50 mm	24 mm	—	—	—
47HSKA100HYD1095	HSK-A	100	10 mm	95 mm	50 mm	30 mm	—	—	—
47HSKA100HYD12100	HSK-A	100	12 mm	100 mm	50 mm	36 mm	—	—	—
47HSKA100HYD14100	HSK-A	100	14 mm	100 mm	50 mm	40 mm	—	—	—
47HSKA100HYD16105	HSK-A	100	16 mm	105 mm	50 mm	40 mm	—	—	—
47HSKA100HYD18105	HSK-A	100	18 mm	105 mm	50 mm	43 mm	—	—	—
47HSKA100HYD20105	HSK-A	100	20 mm	105 mm	50 mm	43 mm	—	—	—
47HSKA100HYD25115	HSK-A	100	25 mm	115 mm	50 mm	46 mm	—	—	—
47HSKA100HYD32120	HSK-A	100	32 mm	120 mm	50 mm	51 mm	—	—	—
47HSKA100HYD40125	HSK-A	100	40 mm	125 mm	72 mm	57 mm	—	—	—
47BT30HYD0675	BT	—	6 mm	75 mm	26 mm	—	30	M5	23 mm
47ISO30HYD0675	SK / ISO	—	6 mm	75 mm	26 mm	—	30	M5	23 mm
47BT30HYD0875	BT	—	8 mm	75 mm	28 mm	—	30	M6	24 mm
47ISO30HYD0875	SK / ISO	—	8 mm	75 mm	28 mm	—	30	M6	24 mm
47BT30HYD1080	BT	—	10 mm	80 mm	30 mm	—	30	M8	30 mm
47ISO30HYD1080	SK / ISO	—	10 mm	80 mm	30 mm	—	30	M8	30 mm
47BT30HYD1285	BT	—	12 mm	85 mm	32 mm	—	30	M10	36 mm
47ISO30HYD1285	SK / ISO	—	12 mm	85 mm	32 mm	—	30	M10	36 mm
47BT30HYD14100	BT	—	14 mm	100 mm	34 mm	—	30	M10	40 mm
47ISO30HYD14100	SK / ISO	—	14 mm	100 mm	34 mm	—	30	M10	40 mm
47BT30HYD16100	BT	—	16 mm	100 mm	38 mm	—	30	M12	40 mm
47ISO30HYD16100	SK / ISO	—	16 mm	100 mm	38 mm	—	30	M12	40 mm
47BT30HYD18100	BT	—	18 mm	100 mm	40 mm	—	30	M12	43 mm
47ISO30HYD18100	SK / ISO	—	18 mm	100 mm	40 mm	—	30	M12	43 mm
47BT30HYD20100	BT	—	20 mm	100 mm	42 mm	—	30	M16	43 mm
47ISO30HYD20100	SK / ISO	—	20 mm	100 mm	42 mm	—	30	M16	43 mm
47BT40HYD0680	BT	—	6 mm	80 mm	26 mm	—	40	M5	23 mm
47ISO40HYD0680	SK / ISO	—	6 mm	80 mm	26 mm	—	40	M5	23 mm
47BT40HYD0880	BT	—	8 mm	80 mm	28 mm	—	40	M6	24 mm
47ISO40HYD0880	SK / ISO	—	8 mm	80 mm	28 mm	—	40	M6	24 mm
47BT40HYD1080	BT	—	10 mm	80 mm	30 mm	—	40	M8	30 mm
47ISO40HYD1080	SK / ISO	—	10 mm	80 mm	30 mm	—	40	M8	30 mm
47BT40HYD1290	BT	—	12 mm	90 mm	32 mm	—	40	M10	36 mm
47ISO40HYD1290	SK / ISO	—	12 mm	90 mm	32 mm	—	40	M10	36 mm
47BT40HYD1490	BT	—	14 mm	90 mm	34 mm	—	40	M10	40 mm
47ISO40HYD1490	SK / ISO	—	14 mm	90 mm	34 mm	—	40	M10	40 mm
47BT40HYD1690	BT	—	16 mm	90 mm	38 mm	—	40	M12	40 mm
47ISO40HYD1690	SK / ISO	—	16 mm	90 mm	38 mm	—	40	M12	40 mm
47BT40HYD1895	BT	—	18 mm	95 mm	40 mm	—	40	M12	43 mm
47ISO40HYD1895	SK / ISO	—	18 mm	95 mm	40 mm	—	40	M12	43 mm
47BT40HYD2095	BT	—	20 mm	95 mm	42 mm	—	40	M16	43 mm
47ISO40HYD2095	SK / ISO	—	20 mm	95 mm	42 mm	—	40	M16	43 mm
47BT40HYD25105	BT	—	25 mm	105 mm	53 mm	—	40	M16	46 mm
47ISO40HYD25105	SK / ISO	—	25 mm	105 mm	53 mm	—	40	M16	46 mm
47BT40HYD32110	BT	—	32 mm	110 mm	60 mm	—	40	M16	51 mm
47ISO40HYD32110	SK / ISO	—	32 mm	110 mm	60 mm	—	40	M16	51 mm
47BT50HYD0690	BT	—	6 mm	90 mm	42 mm	—	50	M10	23 mm
47ISO50HYD0690	SK / ISO	—	6 mm	90 mm	42 mm	—	50	M10	23 mm
47BT50HYD0890	BT	—	8 mm	90 mm	50 mm	—	50	M16	24 mm
47ISO50HYD0890	SK / ISO	—	8 mm	90 mm	50 mm	—	50	M16	24 mm
47BT50HYD1095	BT	—	10 mm	95 mm	50 mm	—	50	M16	30 mm
47ISO50HYD1095	SK / ISO	—	10 mm	95 mm	50 mm	—	50	M16	30 mm
47BT50HYD12100	BT	—	12 mm	100 mm	50 mm	—	50	M16	36 mm
47ISO50HYD12100	SK / ISO	—	12 mm	100 mm	50 mm	—	50	M16	36 mm
47BT50HYD14100	BT	—	14 mm	100 mm	50 mm	—	50	M16	40 mm
47ISO50HYD14100	SK / ISO	—	14 mm	100 mm	50 mm	—	50	M16	40 mm
47BT50HYD16105	BT	—	16 mm	105 mm	50 mm	—	50	M16	40 mm
47ISO50HYD16105	SK / ISO	—	16 mm	105 mm	50 mm	—	50	M16	40 mm
47BT50HYD18105	BT	—	18 mm	105 mm	50 mm	—	50	M16	43 mm
47ISO50HYD18105	SK / ISO	—	18 mm	105 mm	50 mm	—	50	M16	43 mm
47BT50HYD20105	BT	—	20 mm	105 mm	50 mm	—	50	M16	43 mm
47ISO50HYD20105	SK / ISO	—	20 mm	105 mm	50 mm	—	50	M16	43 mm
47BT50HYD25115	BT	—	25 mm	115 mm	50 mm	—	50	M16	46 mm
47ISO50HYD25115	SK / ISO	—	25 mm	115 mm	50 mm	—	50	M16	46 mm
47BT50HYD32120	BT	—	32 mm	120 mm	50 mm	—	50	M16	51 mm
47ISO50HYD32120	SK / ISO	—	32 mm	120 mm	50 mm	—	50	M16	51 mm
47BT50HYD40125	BT	—	40 mm	125 mm	72 mm	—	50	M16	57 mm
47ISO50HYD40125	SK / ISO	—	40 mm	125 mm	72 mm	—	50	M16	57 mm

Frequently asked questions

What is the Hydraulic Chucks HYD?

Hydraulic Chucks HYD (MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A)) is a precision CNC Tool Holders product manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned. Hydraulic Chucks HYD for precision tool holding with superior vibration damping. Concentricity within 0.003 max for finishing and semi-finishing operations.

Which shank types are available for Hydraulic Chucks HYD?

Hydraulic Chucks HYD is available in HSK-A, BT, SK / ISO shanks. Across these shanks there are 87 catalogue ordering codes to choose from.

What standard does the Hydraulic Chucks HYD conform to?

The Hydraulic Chucks HYD conforms to MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A). Every unit is MPT-tested (Magnetic Particle Testing) and proof-tested at 2.5× clamping force before dispatch.

Who manufactures the Hydraulic Chucks HYD and where?

Hydraulic Chucks HYD is manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned. Contact sales at +91-9538456478 or ptpcnc@ptpcnctoolings.com for pricing, DXF/STEP CAD files, and lead times.

+91 95384 56478 ptpcnc@ptpcnctoolings.com

Belgaum, India

Hydraulic Chucks HYD

Name: Hydraulic Chucks HYD
Brand: PTP CNC Toolings
Availability: InStock

MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A) · Cat. Pages 75-76

Also Made in Shanks: CAT ANSI/ASME B5.50 | ISO 12164-1 (DIN 69893-1) HSK | DIN 2080 - IS 2340

Hydraulic Chucks HYD

DrawingTechnical Drawing

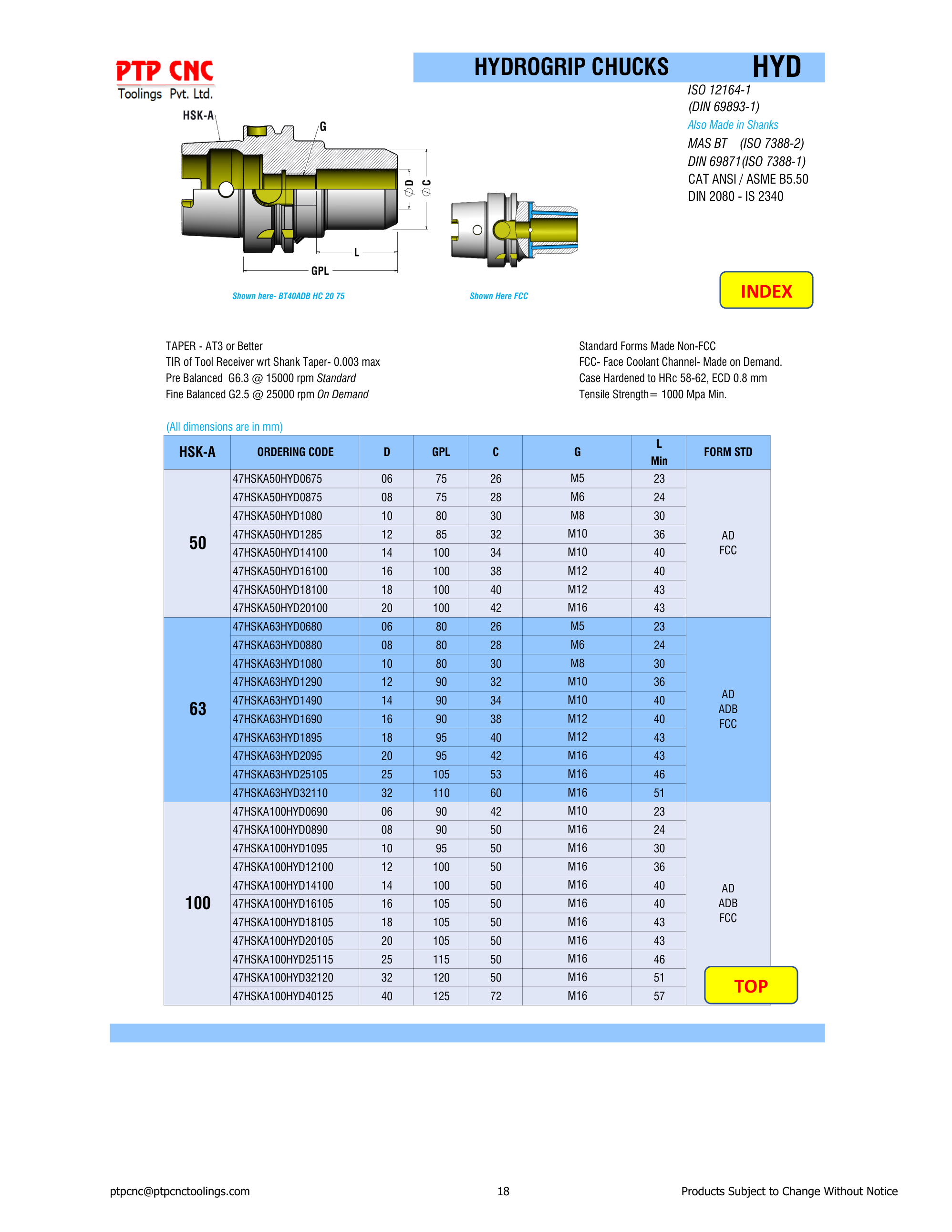

HSK-A Technical Drawing

Ordering Codes — Hydraulic Chucks HYD (HSK-A)

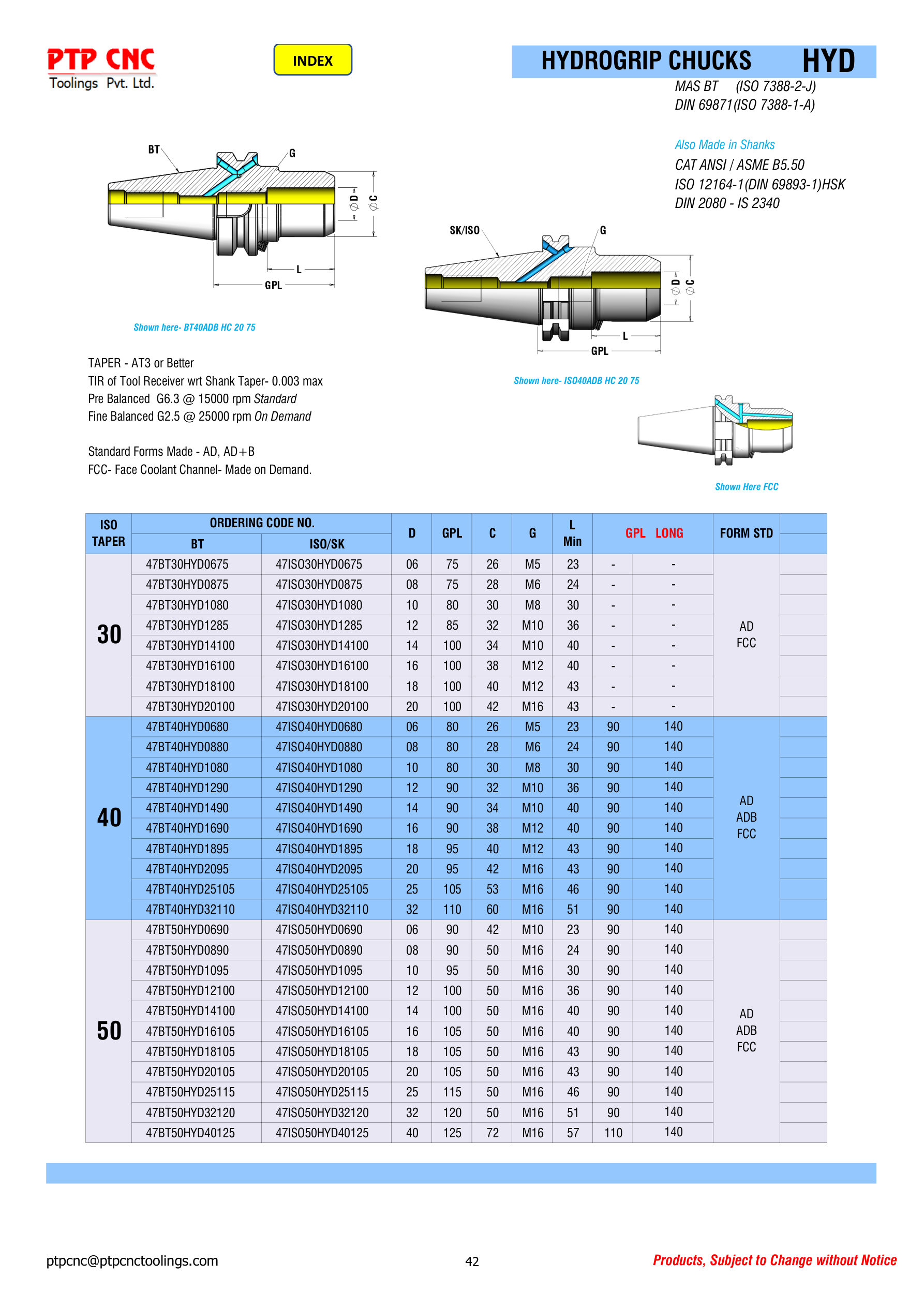

BT & SK/ISO Technical Drawing

BT & SK/ISO Ordering Codes

Specifications

Hydraulic Chucks HYD

DrawingTechnical Drawing

HSK-A Technical Drawing

Ordering Codes — Hydraulic Chucks HYD (HSK-A)

BT & SK/ISO Technical Drawing

BT & SK/ISO Ordering Codes

Specifications

Ordering Code	Size	d	GPL	C	L min	Stock
47HSKA50HYD0675	HSK-A 50	6	75	26	23	—
47HSKA50HYD0875	HSK-A 50	8	75	28	24	—
47HSKA50HYD1080	HSK-A 50	10	80	30	30	—
47HSKA50HYD1285	HSK-A 50	12	85	32	36	—
47HSKA50HYD14100	HSK-A 50	14	100	34	40	—
47HSKA50HYD16100	HSK-A 50	16	100	38	40	—
47HSKA50HYD18100	HSK-A 50	18	100	40	43	—
47HSKA50HYD20100	HSK-A 50	20	100	42	43	—
47HSKA63HYD0680	HSK-A 63	6	80	26	23	—
47HSKA63HYD0880	HSK-A 63	8	80	28	24	—
47HSKA63HYD1080	HSK-A 63	10	80	30	30	—
47HSKA63HYD1290	HSK-A 63	12	90	32	36	—
47HSKA63HYD1490	HSK-A 63	14	90	34	40	—
47HSKA63HYD1690	HSK-A 63	16	90	38	40	—
47HSKA63HYD1895	HSK-A 63	18	95	40	43	—
47HSKA63HYD2095	HSK-A 63	20	95	42	43	—
47HSKA63HYD25105	HSK-A 63	25	105	53	46	—
47HSKA63HYD32110	HSK-A 63	32	110	60	51	—
47HSKA100HYD0690	HSK-A 100	6	90	42	23	—
47HSKA100HYD0890	HSK-A 100	8	90	50	24	—
47HSKA100HYD1095	HSK-A 100	10	95	50	30	—
47HSKA100HYD12100	HSK-A 100	12	100	50	36	—
47HSKA100HYD14100	HSK-A 100	14	100	50	40	—
47HSKA100HYD16105	HSK-A 100	16	105	50	40	—
47HSKA100HYD18105	HSK-A 100	18	105	50	43	—
47HSKA100HYD20105	HSK-A 100	20	105	50	43	—
47HSKA100HYD25115	HSK-A 100	25	115	50	46	—
47HSKA100HYD32120	HSK-A 100	32	120	50	51	—
47HSKA100HYD40125	HSK-A 100	40	125	72	57	—
