Precision tools made effortless
Mini ER-M clamping nuts for use with Mini ER-M collet chucks. Compact design for small-diameter tool clamping. DIN 6499 standard.

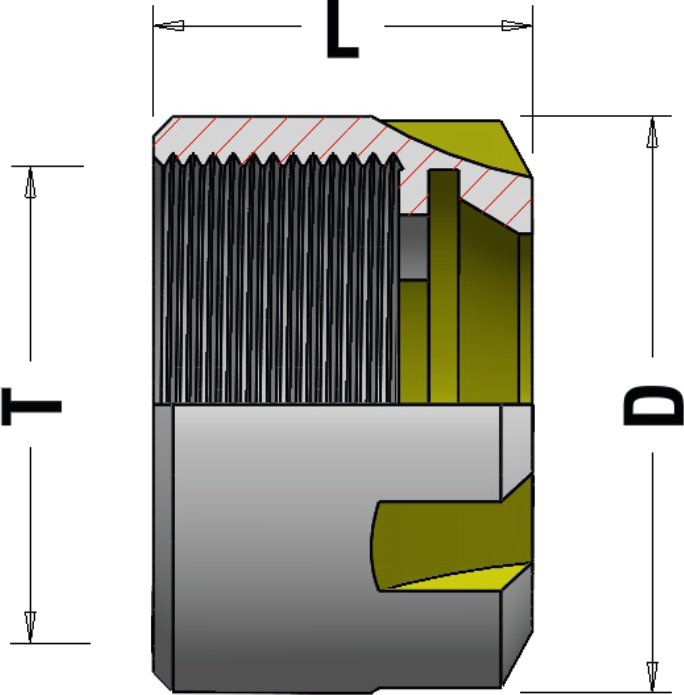

| Ordering Code | Shank | ER Size | Bore / Tool Ø (d) | Projection (L) | Thread |
|---|---|---|---|---|---|
| 36CCNER8M | — | 8 | 12 mm | 11 mm | M10x0.75P |
| 36CCNER11M | — | 11 | 16 mm | 11.5 mm | M13x0.75P |
| 36CCNER16M | — | 16 | 22 mm | 17.5 mm | M18x1.0P |
| 36CCNER20M | — | 20 | 28 mm | 19 mm | M24x1.0P |
| 36CCNER25M | — | 25 | 35 mm | 20 mm | M30x1.0P |
ER Clamping Nuts - Mini (ER-M) (DIN 6499) is a precision CNC ER Clamping Nuts & Accessories product manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned. Mini ER-M clamping nuts for use with Mini ER-M collet chucks. Compact design for small-diameter tool clamping. DIN 6499 standard.
The ER Clamping Nuts - Mini (ER-M) conforms to DIN 6499. Every unit is MPT-tested (Magnetic Particle Testing) and proof-tested at 2.5× clamping force before dispatch.
ER Clamping Nuts - Mini (ER-M) is manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned. Contact sales at +91-9538456478 or ptpcnc@ptpcnctoolings.com for pricing, DXF/STEP CAD files, and lead times.
HSK ER Clamping Nuts Ordering Table
All dimensions in mm
