End Mill Holders WE — specifications

End Mill Holders with Weldon flat clamping (DIN 1835-B). Robust side-lock design for secure milling tool retention.

Standard:

DIN 6359 (Weldon DIN 1835-B)

Shank types:

HSK-A, BT, SK / ISO

Manufacturer:

PTP CNC Toolings Pvt. Ltd., Belgaum, India

Ordering codes:

Full specification table for End Mill Holders WE
Ordering Code	Shank	Size	Bore / Tool Ø (d)	Body Ø (C)	Gauge Length (GPL)	Screw Thread	Spindle Taper	Projection (L)	Length L1
47HSKA50WE0665	HSK-A	50	6 mm	25 mm	65 mm	M6	—	—	—
47HSKA50WE0865	HSK-A	50	8 mm	28 mm	65 mm	M8	—	—	—
47HSKA50WE1065	HSK-A	50	10 mm	35 mm	65 mm	M10	—	—	—
47HSKA50WE1280	HSK-A	50	12 mm	42 mm	80 mm	M10	—	—	—
47HSKA50WE1480	HSK-A	50	14 mm	44 mm	80 mm	M10	—	—	—
47HSKA50WE1680	HSK-A	50	16 mm	48 mm	80 mm	M12	—	—	—
47HSKA50WE1880	HSK-A	50	18 mm	50 mm	80 mm	M12	—	—	—
47HSKA50WE2080	HSK-A	50	20 mm	52 mm	80 mm	M16	—	—	—
47HSKA63WE0665	HSK-A	63	6 mm	25 mm	65 mm	M6	—	—	—
47HSKA63WE0865	HSK-A	63	8 mm	28 mm	65 mm	M8	—	—	—
47HSKA63WE1065	HSK-A	63	10 mm	35 mm	65 mm	M10	—	—	—
47HSKA63WE1280	HSK-A	63	12 mm	42 mm	80 mm	M10	—	—	—
47HSKA63WE1480	HSK-A	63	14 mm	44 mm	80 mm	M10	—	—	—
47HSKA63WE1680	HSK-A	63	16 mm	48 mm	80 mm	M12	—	—	—
47HSKA63WE1880	HSK-A	63	18 mm	50 mm	80 mm	M12	—	—	—
47HSKA63WE2080	HSK-A	63	20 mm	52 mm	80 mm	M16	—	—	—
47HSKA63WE25110	HSK-A	63	25 mm	65 mm	110 mm	M18x2	—	—	—
47HSKA63WE32110	HSK-A	63	32 mm	72 mm	110 mm	M20x2	—	—	—
47HSKA63WE40125	HSK-A	63	40 mm	80 mm	125 mm	M24x2	—	—	—
47HSKA100WE0680	HSK-A	100	6 mm	25 mm	80 mm	M6	—	—	—
47HSKA100WE0880	HSK-A	100	8 mm	28 mm	80 mm	M8	—	—	—
47HSKA100WE1080	HSK-A	100	10 mm	35 mm	80 mm	M10	—	—	—
47HSKA100WE12100	HSK-A	100	12 mm	42 mm	100 mm	M10	—	—	—
47HSKA100WE14100	HSK-A	100	14 mm	44 mm	100 mm	M10	—	—	—
47HSKA100WE16100	HSK-A	100	16 mm	48 mm	100 mm	M12	—	—	—
47HSKA100WE18100	HSK-A	100	18 mm	50 mm	100 mm	M12	—	—	—
47HSKA100WE20100	HSK-A	100	20 mm	52 mm	100 mm	M16	—	—	—
47HSKA100WE25100	HSK-A	100	25 mm	65 mm	100 mm	M18x2	—	—	—
47HSKA100WE32120	HSK-A	100	32 mm	72 mm	120 mm	M20x2	—	—	—
47HSKA100WE40120	HSK-A	100	40 mm	80 mm	120 mm	M24x2	—	—	—
47HSKA100WE50130	HSK-A	100	50 mm	100 mm	130 mm	M24x2	—	—	—
47BT30WE0660	BT	—	6 mm	25 mm	60 mm	M6	30	18 mm	—
47ISO30WE0660	SK / ISO	—	6 mm	25 mm	60 mm	M6	30	18 mm	—
47BT30WE0860	BT	—	8 mm	28 mm	60 mm	M8	30	18 mm	—
47ISO30WE0860	SK / ISO	—	8 mm	28 mm	60 mm	M8	30	18 mm	—
47BT30WE1060	BT	—	10 mm	35 mm	60 mm	M10	30	20 mm	—
47ISO30WE1060	SK / ISO	—	10 mm	35 mm	60 mm	M10	30	20 mm	—
47BT30WE1260	BT	—	12 mm	42 mm	60 mm	M12	30	22.5 mm	—
47ISO30WE1260	SK / ISO	—	12 mm	42 mm	60 mm	M12	30	22.5 mm	—
47BT30WE1460	BT	—	14 mm	44 mm	60 mm	M12	30	22.5 mm	—
47ISO30WE1460	SK / ISO	—	14 mm	44 mm	60 mm	M12	30	22.5 mm	—
47BT30WE1660	BT	—	16 mm	48 mm	60 mm	M14	30	24 mm	—
47ISO30WE1660	SK / ISO	—	16 mm	48 mm	60 mm	M14	30	24 mm	—
47BT30WE1860	BT	—	18 mm	50 mm	60 mm	M14	30	24 mm	—
47ISO30WE1860	SK / ISO	—	18 mm	50 mm	60 mm	M14	30	24 mm	—
47BT30WE2075	BT	—	20 mm	52 mm	75 mm	M16	30	25 mm	—
47ISO30WE2075	SK / ISO	—	20 mm	52 mm	75 mm	M16	30	25 mm	—
47BT40WE0650	BT	—	6 mm	25 mm	50 mm	M6	40	18 mm	—
47ISO40WE0650	SK / ISO	—	6 mm	25 mm	50 mm	M6	40	18 mm	—
47BT40WE0850	BT	—	8 mm	28 mm	50 mm	M8	40	18 mm	—
47ISO40WE0850	SK / ISO	—	8 mm	28 mm	50 mm	M8	40	18 mm	—
47BT40WE1063	BT	—	10 mm	35 mm	63 mm	M10	40	20 mm	—
47ISO40WE1063	SK / ISO	—	10 mm	35 mm	63 mm	M10	40	20 mm	—
47BT40WE1263	BT	—	12 mm	42 mm	63 mm	M12	40	22.5 mm	—
47ISO40WE1263	SK / ISO	—	12 mm	42 mm	63 mm	M12	40	22.5 mm	—
47BT40WE1463	BT	—	14 mm	44 mm	63 mm	M12	40	22.5 mm	—
47ISO40WE1463	SK / ISO	—	14 mm	44 mm	63 mm	M12	40	22.5 mm	—
47BT40WE1663	BT	—	16 mm	48 mm	63 mm	M14	40	24 mm	—
47ISO40WE1663	SK / ISO	—	16 mm	48 mm	63 mm	M14	40	24 mm	—
47BT40WE1863	BT	—	18 mm	50 mm	63 mm	M14	40	24 mm	—
47ISO40WE1863	SK / ISO	—	18 mm	50 mm	63 mm	M14	40	24 mm	—
47BT40WE2063	BT	—	20 mm	52 mm	63 mm	M16	40	25 mm	—
47ISO40WE2063	SK / ISO	—	20 mm	52 mm	63 mm	M16	40	25 mm	—
47BT40WE25100	BT	—	25 mm	65 mm	100 mm	M18x2	40	24 mm	25 mm
47ISO40WE25100	SK / ISO	—	25 mm	65 mm	100 mm	M18x2	40	24 mm	25 mm
47BT40WE32100	BT	—	32 mm	72 mm	100 mm	M20x2	40	24 mm	28 mm
47ISO40WE32100	SK / ISO	—	32 mm	72 mm	100 mm	M20x2	40	24 mm	28 mm
47BT40WE40115	BT	—	40 mm	80 mm	115 mm	M20x2	40	30 mm	32 mm
47ISO40WE40115	SK / ISO	—	40 mm	80 mm	115 mm	M20x2	40	30 mm	32 mm
47BT50WE0663	BT	—	6 mm	25 mm	63 mm	M6	50	18 mm	—
47ISO50WE0663	SK / ISO	—	6 mm	25 mm	63 mm	M6	50	18 mm	—
47BT50WE0863	BT	—	8 mm	28 mm	63 mm	M8	50	18 mm	—
47ISO50WE0863	SK / ISO	—	8 mm	28 mm	63 mm	M8	50	18 mm	—
47BT50WE1080	BT	—	10 mm	35 mm	80 mm	M10	50	20 mm	—
47ISO50WE1080	SK / ISO	—	10 mm	35 mm	80 mm	M10	50	20 mm	—
47BT50WE1280	BT	—	12 mm	42 mm	80 mm	M12	50	22.5 mm	—
47ISO50WE1280	SK / ISO	—	12 mm	42 mm	80 mm	M12	50	22.5 mm	—
47BT50WE1480	BT	—	14 mm	44 mm	80 mm	M12	50	22.5 mm	—
47ISO50WE1480	SK / ISO	—	14 mm	44 mm	80 mm	M12	50	22.5 mm	—
47BT50WE1680	BT	—	16 mm	48 mm	80 mm	M14	50	24 mm	—
47ISO50WE1680	SK / ISO	—	16 mm	48 mm	80 mm	M14	50	24 mm	—
47BT50WE1880	BT	—	18 mm	50 mm	80 mm	M14	50	24 mm	—
47ISO50WE1880	SK / ISO	—	18 mm	50 mm	80 mm	M14	50	24 mm	—
47BT50WE2080	BT	—	20 mm	52 mm	80 mm	M16	50	25 mm	—
47ISO50WE2080	SK / ISO	—	20 mm	52 mm	80 mm	M16	50	25 mm	—
47BT50WE25100	BT	—	25 mm	65 mm	100 mm	M18x2	50	24 mm	25 mm
47ISO50WE25100	SK / ISO	—	25 mm	65 mm	100 mm	M18x2	50	24 mm	25 mm
47BT50WE32105	BT	—	32 mm	72 mm	105 mm	M20x2	50	24 mm	28 mm
47ISO50WE32105	SK / ISO	—	32 mm	72 mm	105 mm	M20x2	50	24 mm	28 mm
47BT50WE40115	BT	—	40 mm	80 mm	115 mm	M20x2	50	30 mm	32 mm
47ISO50WE40115	SK / ISO	—	40 mm	80 mm	115 mm	M20x2	50	30 mm	32 mm
47BT50WE50125	BT	—	50 mm	100 mm	125 mm	M24x2	50	40 mm	40 mm
47ISO50WE50125	SK / ISO	—	50 mm	100 mm	125 mm	M24x2	50	40 mm	40 mm

Frequently asked questions

What is the End Mill Holders WE?

End Mill Holders WE (DIN 6359 (Weldon DIN 1835-B)) is a precision CNC Tool Holders product manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned. End Mill Holders with Weldon flat clamping (DIN 1835-B). Robust side-lock design for secure milling tool retention.

Which shank types are available for End Mill Holders WE?

End Mill Holders WE is available in HSK-A, BT, SK / ISO shanks. Across these shanks there are 93 catalogue ordering codes to choose from.

What standard does the End Mill Holders WE conform to?

The End Mill Holders WE conforms to DIN 6359 (Weldon DIN 1835-B). Every unit is MPT-tested (Magnetic Particle Testing) and proof-tested at 2.5× clamping force before dispatch.

Who manufactures the End Mill Holders WE and where?

End Mill Holders WE is manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned. Contact sales at +91-9538456478 or ptpcnc@ptpcnctoolings.com for pricing, DXF/STEP CAD files, and lead times.

+91 95384 56478 ptpcnc@ptpcnctoolings.com

Belgaum, India

End Mill Holders WE

Name: End Mill Holders WE
Brand: PTP CNC Toolings
Availability: InStock

DIN 6359 (Weldon DIN 1835-B) · Cat. Pages 49-51

Also Made in Shanks: CAT ANSI/ASME B5.50 | ISO 12164-1 (DIN 69893-1) HSK | DIN 2080 - IS 2340

Weldon ØAll Ø6 Ø8 Ø10 Ø12 Ø14 Ø16 Ø18 Ø20 Ø25 Ø32 Ø40 Ø50

End Mill Holders WE

DrawingTechnical Drawing

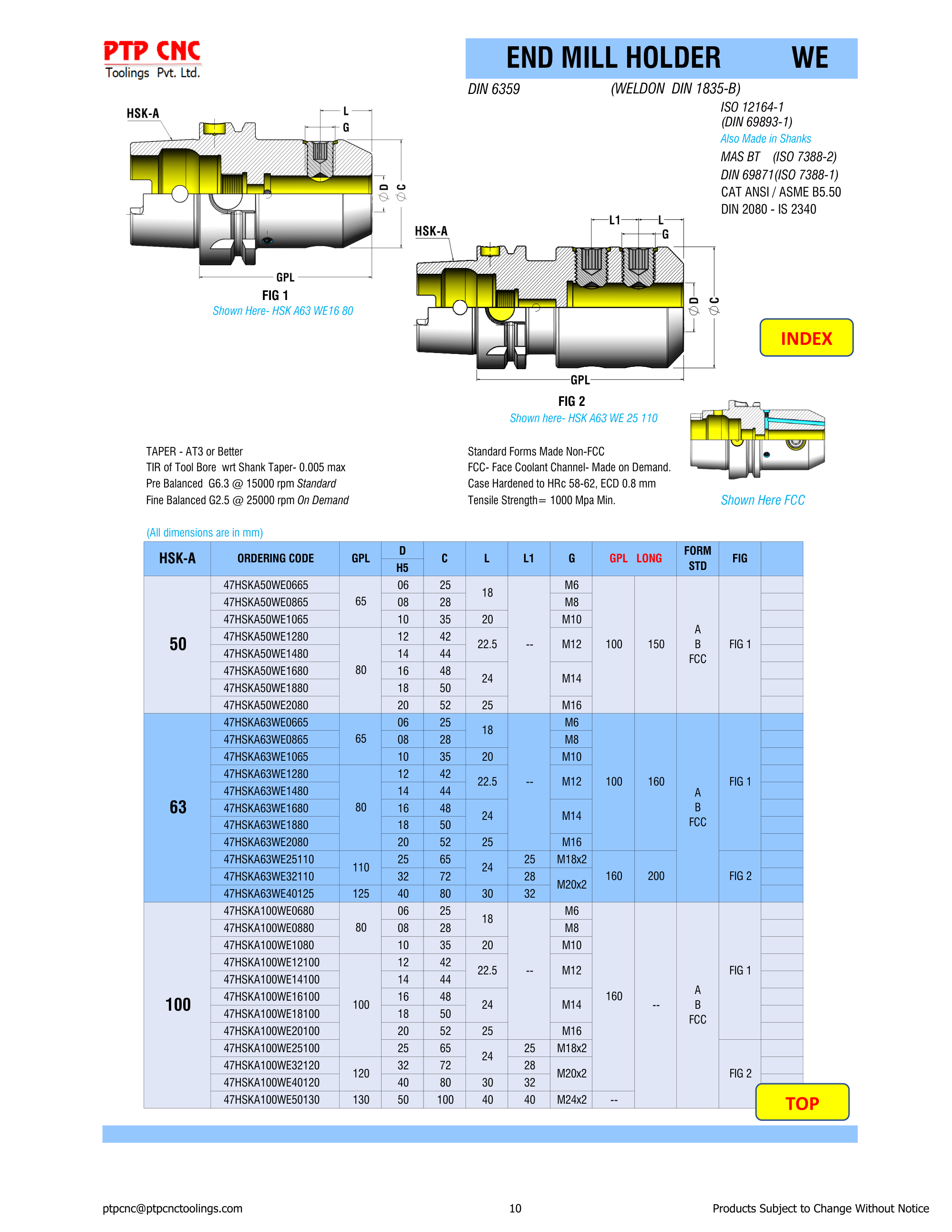

HSK-A Technical Drawing

Ordering Codes — End Mill Holders WE (HSK-A)

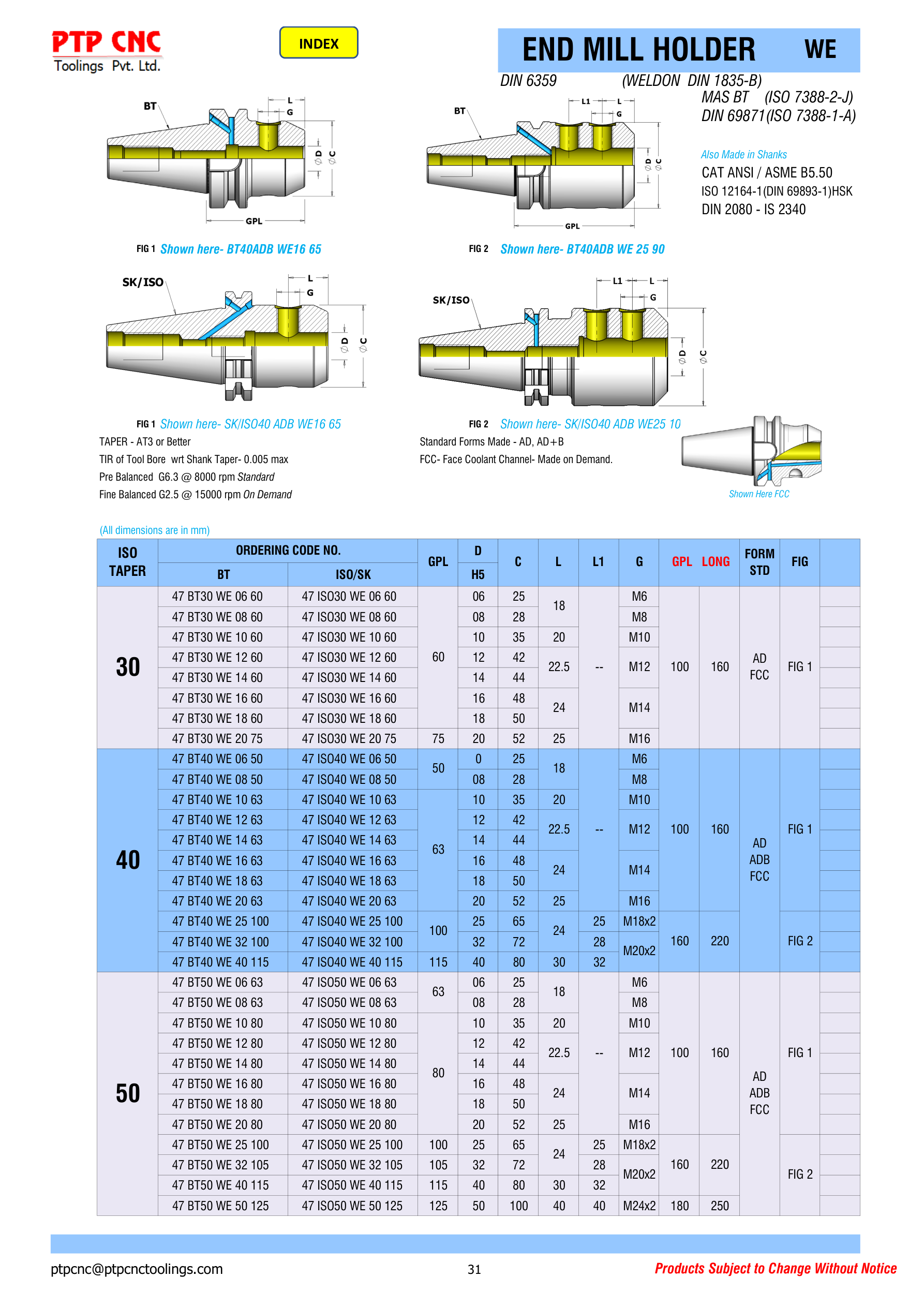

BT & SK/ISO Technical Drawing

BT & SK/ISO Ordering Codes

Specifications

End Mill Holders WE

DrawingTechnical Drawing

HSK-A Technical Drawing

Ordering Codes — End Mill Holders WE (HSK-A)

BT & SK/ISO Technical Drawing

BT & SK/ISO Ordering Codes

Specifications

Ordering Code	Size	d	C	GPL	Thread	Form	Stock
47HSKA50WE0665	HSK-A 50	6	25	65	M6	AD	—
47HSKA50WE0865	HSK-A 50	8	28	65	M8	AD	—
47HSKA50WE1065	HSK-A 50	10	35	65	M10	AD	—
47HSKA50WE1280	HSK-A 50	12	42	80	M10	AD	—
47HSKA50WE1480	HSK-A 50	14	44	80	M10	AD	—
47HSKA50WE1680	HSK-A 50	16	48	80	M12	AD	—
47HSKA50WE1880	HSK-A 50	18	50	80	M12	AD	—
47HSKA50WE2080	HSK-A 50	20	52	80	M16	AD	—
47HSKA63WE0665	HSK-A 63	6	25	65	M6	AD	—
47HSKA63WE0865	HSK-A 63	8	28	65	M8	AD	—
47HSKA63WE1065	HSK-A 63	10	35	65	M10	AD	—
47HSKA63WE1280	HSK-A 63	12	42	80	M10	AD	—
47HSKA63WE1480	HSK-A 63	14	44	80	M10	AD	—
47HSKA63WE1680	HSK-A 63	16	48	80	M12	AD	—
47HSKA63WE1880	HSK-A 63	18	50	80	M12	AD	—
47HSKA63WE2080	HSK-A 63	20	52	80	M16	AD	—
47HSKA63WE25110	HSK-A 63	25	65	110	M18x2	AD	—
47HSKA63WE32110	HSK-A 63	32	72	110	M20x2	AD	—
47HSKA63WE40125	HSK-A 63	40	80	125	M24x2	AD	—
47HSKA100WE0680	HSK-A 100	6	25	80	M6	AD	—
47HSKA100WE0880	HSK-A 100	8	28	80	M8	AD	—
47HSKA100WE1080	HSK-A 100	10	35	80	M10	AD	—
47HSKA100WE12100	HSK-A 100	12	42	100	M10	AD	—
47HSKA100WE14100	HSK-A 100	14	44	100	M10	AD	—
47HSKA100WE16100	HSK-A 100	16	48	100	M12	AD	—
47HSKA100WE18100	HSK-A 100	18	50	100	M12	AD	—
47HSKA100WE20100	HSK-A 100	20	52	100	M16	AD	—
47HSKA100WE25100	HSK-A 100	25	65	100	M18x2	AD	—
47HSKA100WE32120	HSK-A 100	32	72	120	M20x2	AD	—
47HSKA100WE40120	HSK-A 100	40	80	120	M24x2	AD	—
47HSKA100WE50130	HSK-A 100	50	100	130	M24x2	AD	—

Taper	BT Code	ISO/SK Code	d	C	L	L1	GPL	Thread	FIG	Screws	Form	Stock
30	47BT30WE0660	47ISO30WE0660	6	25	18	---	60	M6	FIG 1	1	AD	—
30	47BT30WE0860	47ISO30WE0860	8	28	18	---	60	M8	FIG 1	1	AD	—
30	47BT30WE1060	47ISO30WE1060	10	35	20	---	60	M10	FIG 1	1	AD	—
30	47BT30WE1260	47ISO30WE1260	12	42	22.5	---	60	M12	FIG 1	1	AD	—
30	47BT30WE1460	47ISO30WE1460	14	44	22.5	---	60	M12	FIG 1	1	AD	—
30	47BT30WE1660	47ISO30WE1660	16	48	24	---	60	M14	FIG 1	1	AD	—
30	47BT30WE1860	47ISO30WE1860	18	50	24	---	60	M14	FIG 1	1	AD	—
30	47BT30WE2075	47ISO30WE2075	20	52	25	---	75	M16	FIG 1	1	AD	—
40	47BT40WE0650	47ISO40WE0650	6	25	18	---	50	M6	FIG 1	1	AD	—
40	47BT40WE0850	47ISO40WE0850	8	28	18	---	50	M8	FIG 1	1	AD	—
40	47BT40WE1063	47ISO40WE1063	10	35	20	---	63	M10	FIG 1	1	AD	—
40	47BT40WE1263	47ISO40WE1263	12	42	22.5	---	63	M12	FIG 1	1	AD	—
40	47BT40WE1463	47ISO40WE1463	14	44	22.5	---	63	M12	FIG 1	1	AD	—
40	47BT40WE1663	47ISO40WE1663	16	48	24	---	63	M14	FIG 1	1	AD	—
40	47BT40WE1863	47ISO40WE1863	18	50	24	---	63	M14	FIG 1	1	AD	—
40	47BT40WE2063	47ISO40WE2063	20	52	25	---	63	M16	FIG 1	1	AD	—
40	47BT40WE25100	47ISO40WE25100	25	65	24	25	100	M18x2	FIG 2	2	AD	—
40	47BT40WE32100	47ISO40WE32100	32	72	24	28	100	M20x2	FIG 2	2	AD	—
40	47BT40WE40115	47ISO40WE40115	40	80	30	32	115	M20x2	FIG 2	2	AD	—
50	47BT50WE0663	47ISO50WE0663	6	25	18	---	63	M6	FIG 1	1	AD	—
50	47BT50WE0863	47ISO50WE0863	8	28	18	---	63	M8	FIG 1	1	AD	—
50	47BT50WE1080	47ISO50WE1080	10	35	20	---	80	M10	FIG 1	1	AD	—
50	47BT50WE1280	47ISO50WE1280	12	42	22.5	---	80	M12	FIG 1	1	AD	—
50	47BT50WE1480	47ISO50WE1480	14	44	22.5	---	80	M12	FIG 1	1	AD	—
50	47BT50WE1680	47ISO50WE1680	16	48	24	---	80	M14	FIG 1	1	AD	—
50	47BT50WE1880	47ISO50WE1880	18	50	24	---	80	M14	FIG 1	1	AD	—
50	47BT50WE2080	47ISO50WE2080	20	52	25	---	80	M16	FIG 1	1	AD	—
50	47BT50WE25100	47ISO50WE25100	25	65	24	25	100	M18x2	FIG 2	2	AD	—
50	47BT50WE32105	47ISO50WE32105	32	72	24	28	105	M20x2	FIG 2	2	AD	—
50	47BT50WE40115	47ISO50WE40115	40	80	30	32	115	M20x2	FIG 2	2	AD	—
50	47BT50WE50125	47ISO50WE50125	50	100	40	40	125	M24x2	FIG 2	2	AD	—
