Coolant Tubes
Through-spindle coolant delivery tubes for HSK-A tool holders

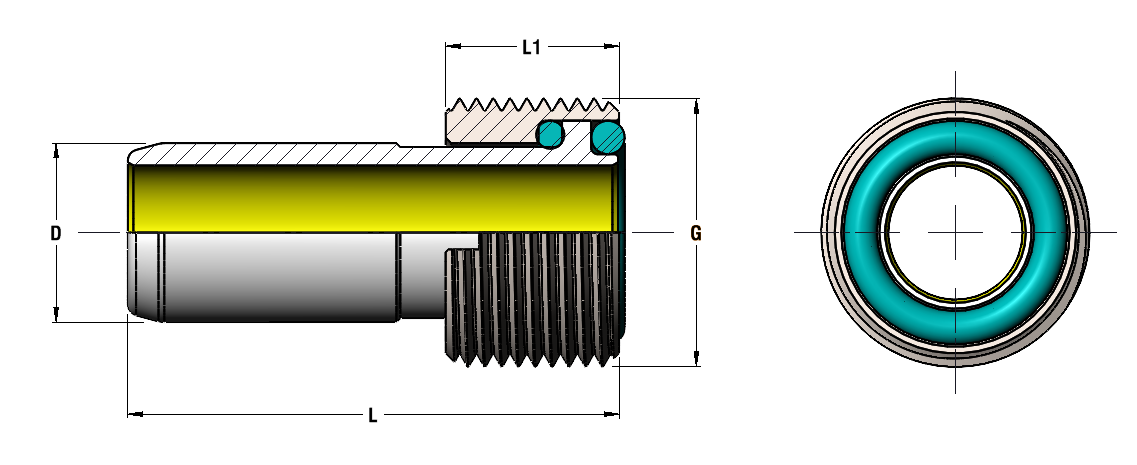

HSK-ATechnical Drawing
LOverall lengthL1Thread lengthGThreadDTube outside Ø
Ordering Codes
Coolant Tubes — HSK-A
4 codes| Ordering Code | Product Name | L | L1 | G | D |
|---|---|---|---|---|---|
| 47CTHA040 | Coolant tube HSK-A40 | — | — | — | — |
| 47CTHA050 | Coolant tube HSK-A50 | 33 | 9.5 | M16X1 | Ø10 |
| 47CTHA063 | Coolant tube HSK-A63 | 36.5 | 11.5 | M18X1 | Ø12 |
| 47CTHA100 | Coolant tube HSK-A100 | 44 | 15.5 | M24X1.5 | Ø16 |
All dimensions in mm. Dimensions for HSK-A40 available on request.
