Pull Studs
HP Retention Knob Technology
Why PTP CNC pull studs out-perform commodity retention knobs — material grade, heat-treatment discipline, MPT (Magnetic Particle Testing) inspection, and seal-ring engineering.
Material & Strength
- · Material: Carburizing Alloy Steel with certified purity
- · Tensile strength: 1400-1800 N/mm²
- · Proof tested: At force of at least 2.5 times the Clamping Force on machine
- · Threads: Rolled, Tough & Wear Resistant, 15-20% Stronger
- · Bore: Soft & Super Finished
Inspection & Standards
- · Grinding: CNC Ground with IPG & Auto-Dressing for Precision
- · Testing: MPT — Magnetic Particle Testing, on each Pull Stud
- · Marking: Each marked with Code No., Traceability & Proof Test confirmation
- · Standards: Meet & Exceed ANSI, ISO, DIN, JIS, JMTBA
Coolant O-Ring Types
Y
Groove type
T
Taper type
Z
Counter bore type
F
Face type
From the catalogue

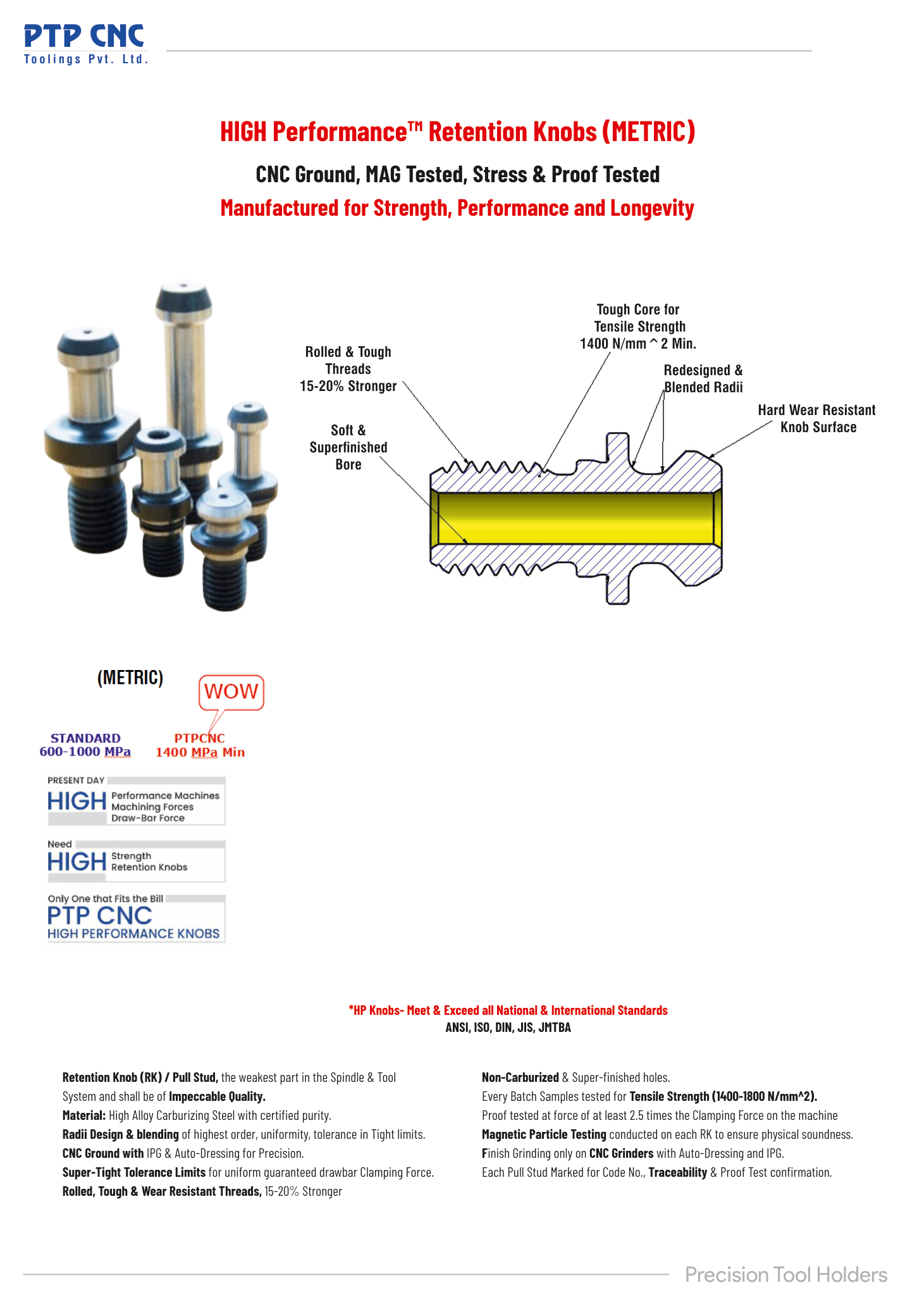

HP Retention Knob Technology (1/2)
1 / 2
