BT

BT Tool Holders — All Product Types

12 product types available in the BT shank family. Click any diagram to open the full spec table and interactive view.

BT

ER

01

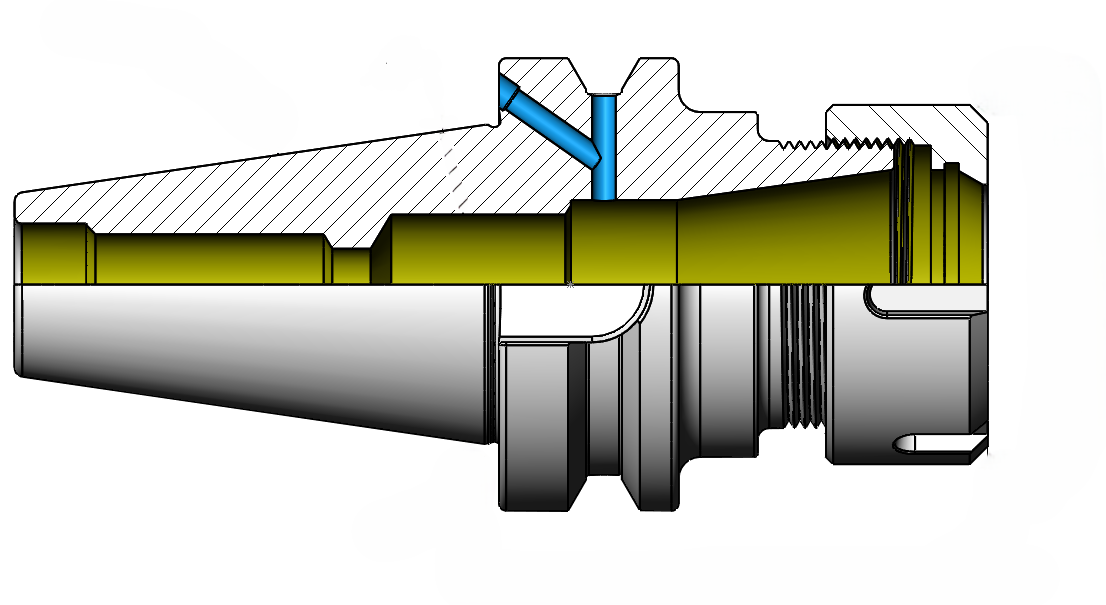

ER Collet Chucks

Precision ER collet chucks — DIN 6499, all common sizes

Cat. pages 45, 46

BT

ER-M

02

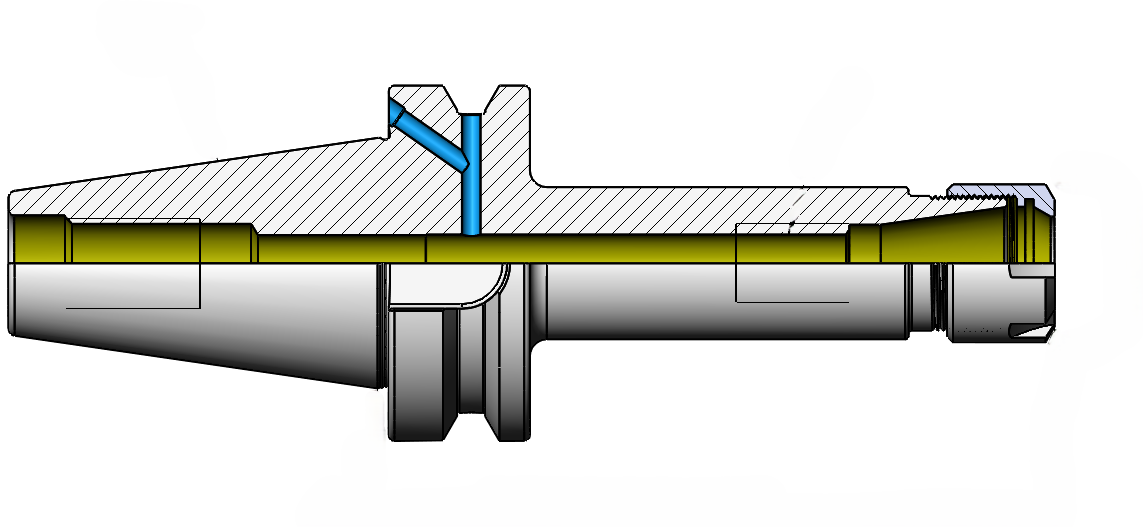

Mini Collet Chucks ER-M

Long mini-pencil ER chucks — for confined-space and small-tool work

Cat. pages 47, 48

BT

WE

03

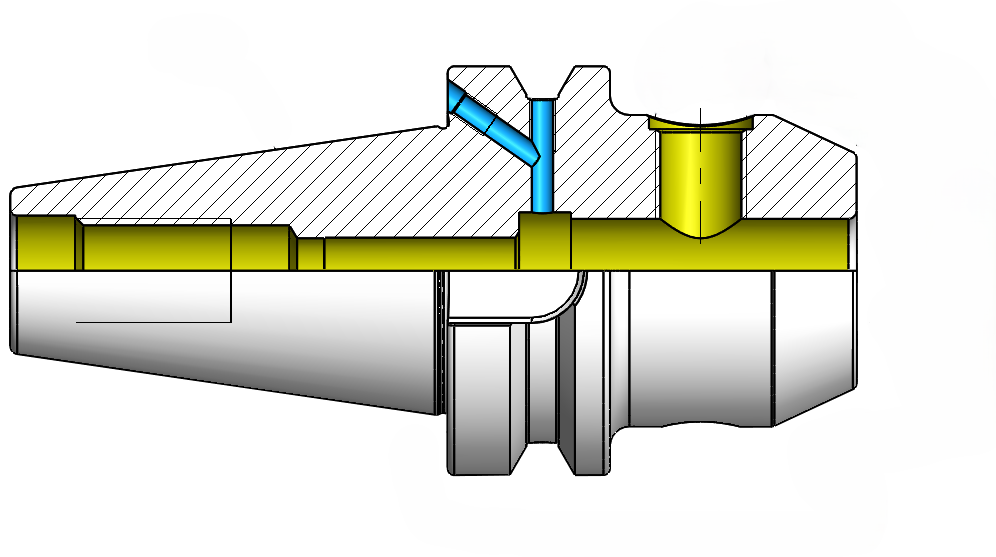

End Mill Holders WE

Weldon DIN 1835-B side-lock end-mill holders — DIN 6359

Cat. pages 49, 50, 51

BT

FMH

04

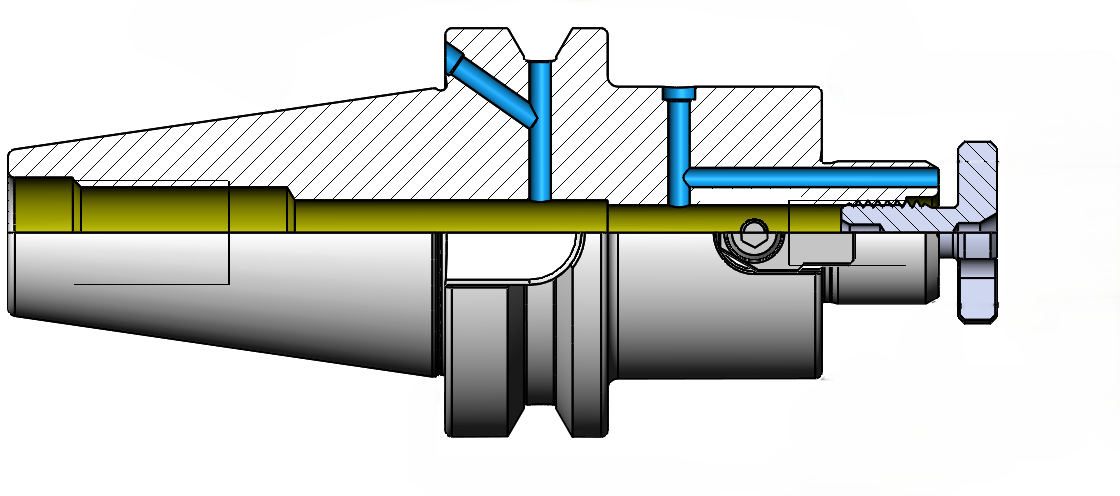

Face Mill Holders FMH

Face / shell mill holders — DIN 6357

Cat. pages 52, 53, 54

BT

CSMA

05

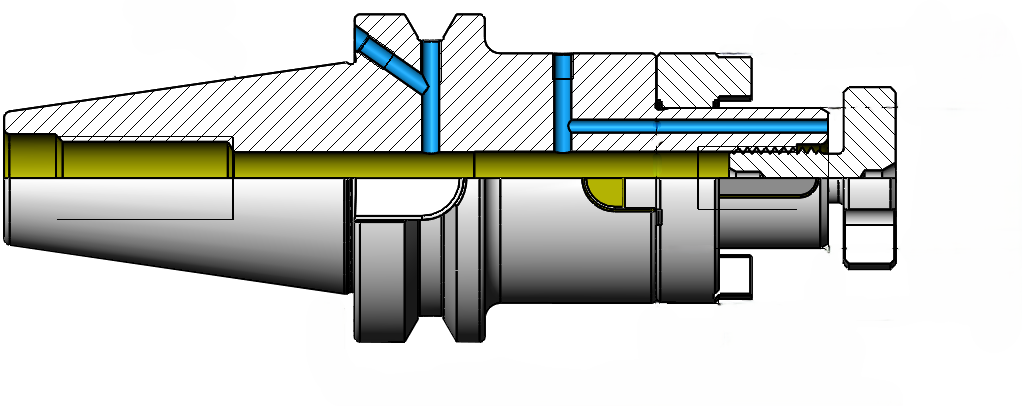

Combi Shell Mill Adapters CSMA

Combi shell mill adapters — DIN 6358 / IS:8615

Cat. pages 55

BT

MTA

06

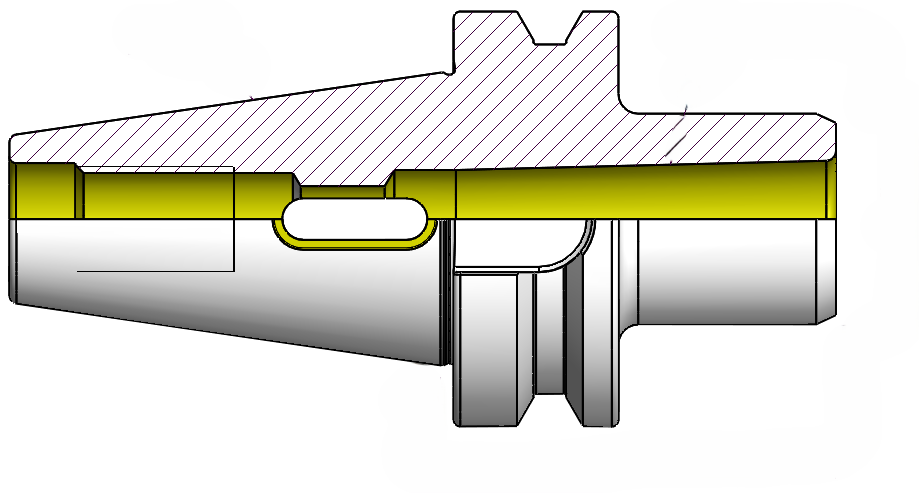

Morse Taper Adapters MTA

Morse taper drill adapters — DIN 6388 / IS:5927

Cat. pages 56, 57, 58

BT

TMA

07

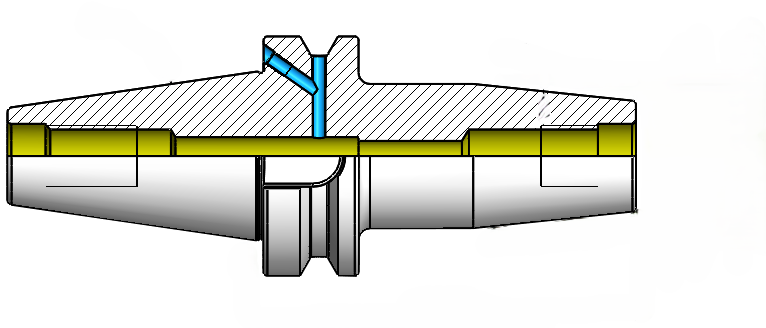

Threaded Mill Adapters TMA

Threaded mill adapters — DIN 6388 / IS:5927

Cat. pages 59, 60

BT

SFH

08

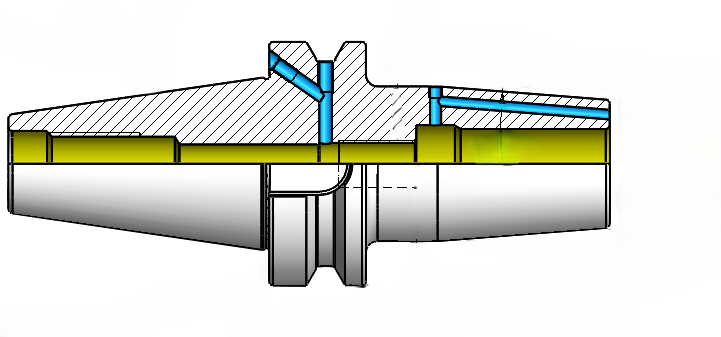

Shrink-Fit Holders SFH

Shrink-fit holders for h6 carbide cutters

Cat. pages 61, 62

BT

SFH SLIM

09

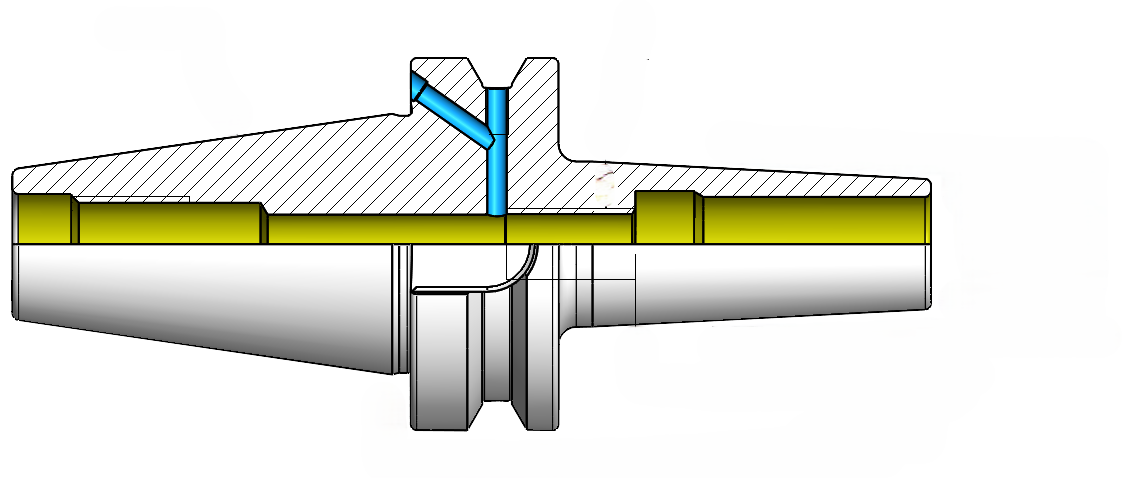

Shrink Fit Holders SFH SLIM

Slim profile shrink-fit holders for confined-space machining

Cat. pages 63, 64

BT

BBB

10

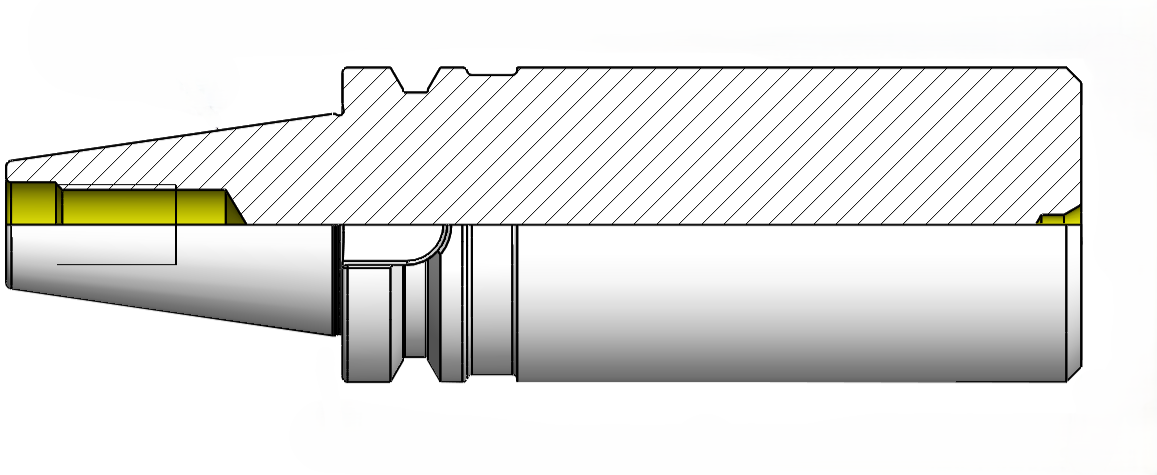

Boring Bar Blanks BBB

Boring bar blanks — for custom boring-tool builds

Cat. pages 65, 66

BT

HYDH

11

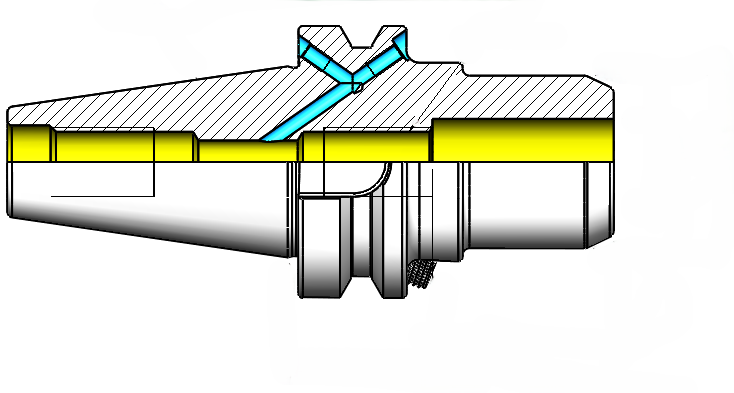

Hydrogrip Chucks HYDH (Heavy Duty)

Heavy-duty hydraulic chucks — TIR 0.003 max, high clamping force

Cat. pages 72, 73

BT

HYD

12

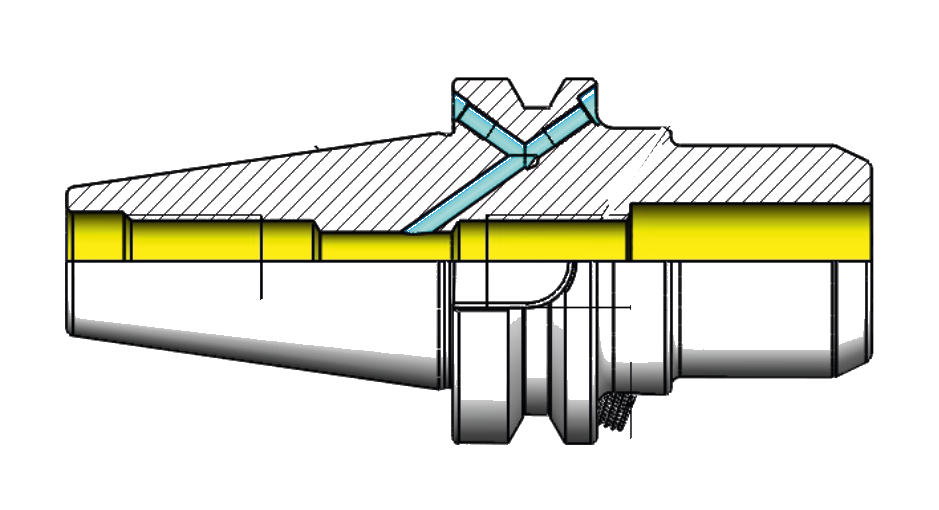

Hydraulic Chucks HYD

Standard hydraulic chucks — TIR 0.003 max

Cat. pages 75, 76
