Face Mill Holders (FMH) · BT shank
47BT40FMH40F60
47BT40FMH40F60 — Face Mill Holders (FMH), BT shank (ISO / DIN). Spindle Taper 40, Bore / Tool Ø (d) 40F, Body Ø (C) 88 mm, H 27 mm, Gauge Length (GPL) 60 mm. Precision-manufactured by PTP CNC Toolings, Belgaum, India. ISO 9001 certified, proof-tested at 2.5× clamping force. Request a quote and CAD files.
About 47BT40FMH40F60
47BT40FMH40F60 is a Face Mill Holders (FMH) with a BT shank that mounts shell-type face and side-and-face mills on a pilot with drive keys for face milling, conforming to ISO / DIN. It is designed to fit machining centres with BT spindle tapers (MAS-BT 7388-2-J / ISO 7388-2). It is precision-manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned, and proof-tested at 2.5× clamping force before dispatch.

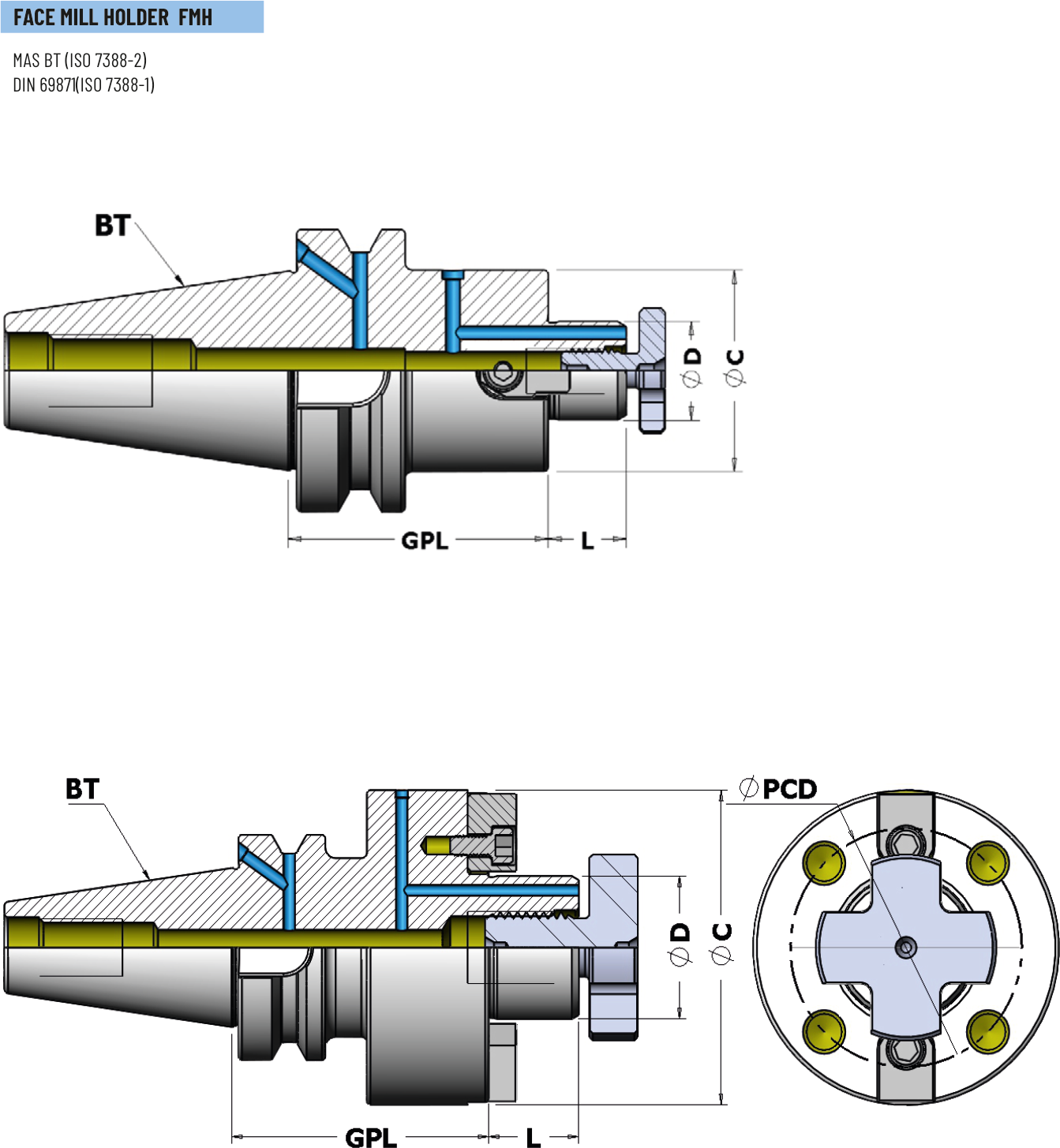

Key dimensions for 47BT40FMH40F60: a spindle taper of 40, a bore / tool ø of 40F, a body ø of 88 mm, a h of 27 mm, a gauge length of 60 mm, a cutter ø of 125, 160 mm. Full specifications are listed in the table below; request DXF/STEP CAD files for exact geometry.
47BT40FMH40F60 belongs to the Face Mill Holders (FMH) series. Adjacent sizes and configurations in the same series include 47BT30FMH2745, 47BT40FMH1645, 47BT30FMH2230, 47BT40FMH2245 — compare their dimensions to select the correct BT model for your spindle and tool diameter.
Specifications
| Ordering Code | 47BT40FMH40F60 |
|---|---|
| Product | Face Mill Holders (FMH) |
| Shank Type | BT |
| Standard | ISO / DIN |
| Spindle Taper | 40 |
| Bore / Tool Ø (d) | 40F |
| Body Ø (C) | 88 mm |
| H | 27 mm |
| Gauge Length (GPL) | 60 mm |
| Cutter Ø | 125, 160 mm |
| pcd | 66.7 |
| Projection (L) | 27 mm |
Frequently asked questions
What are the specifications of 47BT40FMH40F60?
47BT40FMH40F60 is a Face Mill Holders (FMH) with a BT shank, conforming to ISO / DIN. Key specifications — Spindle Taper: 40; Bore / Tool Ø (d): 40F; Body Ø (C): 88 mm; H: 27 mm; Gauge Length (GPL): 60 mm; Cutter Ø: 125, 160 mm.
What is 47BT40FMH40F60?
47BT40FMH40F60 is the ordering code for a Face Mill Holders (FMH) from PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned.
What machines is 47BT40FMH40F60 compatible with?
47BT40FMH40F60 fits machining centres with BT spindle tapers (MAS-BT 7388-2-J / ISO 7388-2). Confirm your spindle taper and drawbar before ordering. PTP can supply matching pull studs and accessories.
How do I order 47BT40FMH40F60?
Request a quote for 47BT40FMH40F60 from PTP CNC Toolings by phone (+91-9538456478), email (ptpcnc@ptpcnctoolings.com), or WhatsApp. CAD files (DXF/STEP) are available on request.
