Collet Chucks ER — specifications

Precision ER Collet Chucks for high-speed machining. Available in all major shank types.

Standard:

MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A)

Shank types:

HSK-A, BT, SK / ISO

Manufacturer:

PTP CNC Toolings Pvt. Ltd., Belgaum, India

Ordering codes:

144

Full specification table for Collet Chucks ER
Ordering Code	Shank	Size	Collet	Clamping Range	Nut Thread	Bore / Tool Ø (d)	Gauge Length (GPL)	Spindle Taper	gplLong
47HSKA50ER1680	HSK-A	50	ER 16	1-10 mm	M10x1	28 mm	80 mm	—	—
47HSKA50ER16100	HSK-A	50	ER 16	1-10 mm	M10x1	28 mm	100 mm	—	—
47HSKA50ER16150	HSK-A	50	ER 16	1-10 mm	M10x1	28 mm	150 mm	—	—
47HSKA50ER20150	HSK-A	50	ER 20	1-13 mm	M12x1.5	32 mm	150 mm	—	—
47HSKA50ER25100	HSK-A	50	ER 25	1-16 mm	M18x1.5	42 mm	100 mm	—	—
47HSKA50ER32100	HSK-A	50	ER 32	2-20 mm	M22x1.5	50 mm	100 mm	—	—
47HSKA63ER1680	HSK-A	63	ER 16	1-10 mm	M10x1	28 mm	80 mm	—	—
47HSKA63ER16100	HSK-A	63	ER 16	1-10 mm	M10x1	28 mm	100 mm	—	—
47HSKA63ER20100	HSK-A	63	ER 20	1-13 mm	M12x1.5	34 mm	100 mm	—	—
47HSKA63ER20150	HSK-A	63	ER 20	1-13 mm	M12x1.5	34 mm	150 mm	—	—
47HSKA63ER25100	HSK-A	63	ER 25	1-16 mm	M18x1.5	42 mm	100 mm	—	—
47HSKA63ER25150	HSK-A	63	ER 25	1-16 mm	M18x1.5	42 mm	150 mm	—	—
47HSKA63ER32100	HSK-A	63	ER 32	2-20 mm	M22x1.5	50 mm	100 mm	—	—
47HSKA63ER32150	HSK-A	63	ER 32	2-20 mm	M22x1.5	50 mm	150 mm	—	—
47HSKA63ER40120	HSK-A	63	ER 40	3-26 mm	M30x1.5	63 mm	120 mm	—	—
47HSKA63ER40150	HSK-A	63	ER 40	3-26 mm	M30x1.5	63 mm	150 mm	—	—
47HSKA100ER16100	HSK-A	100	ER 16	1-10 mm	M10x1	28 mm	100 mm	—	—
47HSKA100ER16160	HSK-A	100	ER 16	1-10 mm	M10x1	28 mm	160 mm	—	—
47HSKA100ER20100	HSK-A	100	ER 20	1-13 mm	M12x1.5	32 mm	100 mm	—	—
47HSKA100ER20160	HSK-A	100	ER 20	1-13 mm	M12x1.5	32 mm	160 mm	—	—
47HSKA100ER25100	HSK-A	100	ER 25	1-16 mm	M18x1.5	42 mm	100 mm	—	—
47HSKA100ER25160	HSK-A	100	ER 25	1-16 mm	M18x1.5	42 mm	160 mm	—	—
47HSKA100ER32120	HSK-A	100	ER 32	2-20 mm	M22x1.5	50 mm	120 mm	—	—
47HSKA100ER32180	HSK-A	100	ER 32	2-20 mm	M22x1.5	50 mm	180 mm	—	—
47HSKA100ER40120	HSK-A	100	ER 40	3-26 mm	M30x1.5	63 mm	120 mm	—	—
47HSKA100ER40180	HSK-A	100	ER 40	3-26 mm	M30x1.5	63 mm	180 mm	—	—
47BT30ER1660	BT	—	ER16	1-10 mm	M10x1	28 mm	60 mm	30	—
47ISO30ER1660	SK / ISO	—	ER16	1-10 mm	M10x1	28 mm	60 mm	30	—
47BT30ER16100	BT	—	ER16	1-10 mm	M10x1	28 mm	100 mm	30	—
47ISO30ER16100	SK / ISO	—	ER16	1-10 mm	M10x1	28 mm	100 mm	30	—
47BT30ER2060	BT	—	ER20	1-13 mm	M12x1.5	32 mm	60 mm	30	—
47ISO30ER2060	SK / ISO	—	ER20	1-13 mm	M12x1.5	32 mm	60 mm	30	—
47BT30ER20100	BT	—	ER20	1-13 mm	M12x1.5	32 mm	100 mm	30	120
47ISO30ER20100	SK / ISO	—	ER20	1-13 mm	M12x1.5	32 mm	100 mm	30	120
47BT30ER2560	BT	—	ER25	1-16 mm	M18x1.5	42 mm	60 mm	30	—
47ISO30ER2560	SK / ISO	—	ER25	1-16 mm	M18x1.5	42 mm	60 mm	30	—
47BT30ER25100	BT	—	ER25	1-16 mm	M18x1.5	42 mm	100 mm	30	—
47ISO30ER25100	SK / ISO	—	ER25	1-16 mm	M18x1.5	42 mm	100 mm	30	—
47BT30ER3260	BT	—	ER32	2-20 mm	M22x1.5	50 mm	60 mm	30	—
47ISO30ER3260	SK / ISO	—	ER32	2-20 mm	M22x1.5	50 mm	60 mm	30	—
47BT30ER32100	BT	—	ER32	2-20 mm	M22x1.5	50 mm	100 mm	30	—
47ISO30ER32100	SK / ISO	—	ER32	2-20 mm	M22x1.5	50 mm	100 mm	30	—
47BT40ER1670	BT	—	ER16	1-10 mm	M10x1	28 mm	70 mm	40	—
47ISO40ER1670	SK / ISO	—	ER16	1-10 mm	M10x1	28 mm	70 mm	40	—
47BT40ER16100	BT	—	ER16	1-10 mm	M10x1	28 mm	100 mm	40	—
47ISO40ER16100	SK / ISO	—	ER16	1-10 mm	M10x1	28 mm	100 mm	40	—
47BT40ER2070	BT	—	ER20	1-13 mm	M12x1.5	34 mm	70 mm	40	—
47ISO40ER2070	SK / ISO	—	ER20	1-13 mm	M12x1.5	34 mm	70 mm	40	—
47BT40ER20100	BT	—	ER20	1-13 mm	M12x1.5	34 mm	100 mm	40	—
47ISO40ER20100	SK / ISO	—	ER20	1-13 mm	M12x1.5	34 mm	100 mm	40	—
47BT40ER2570	BT	—	ER25	1-16 mm	M18x1.5	42 mm	70 mm	40	150
47ISO40ER2570	SK / ISO	—	ER25	1-16 mm	M18x1.5	42 mm	70 mm	40	150
47BT40ER25100	BT	—	ER25	1-16 mm	M18x1.5	42 mm	100 mm	40	—
47ISO40ER25100	SK / ISO	—	ER25	1-16 mm	M18x1.5	42 mm	100 mm	40	—
47BT40ER3270	BT	—	ER32	2-20 mm	M22x1.5	50 mm	70 mm	40	200
47ISO40ER3270	SK / ISO	—	ER32	2-20 mm	M22x1.5	50 mm	70 mm	40	200
47BT40ER32100	BT	—	ER32	2-20 mm	M22x1.5	50 mm	100 mm	40	—
47ISO40ER32100	SK / ISO	—	ER32	2-20 mm	M22x1.5	50 mm	100 mm	40	—
47BT40ER4080	BT	—	ER40	3-26 mm	M30x1.5	63 mm	80 mm	40	—
47ISO40ER4080	SK / ISO	—	ER40	3-26 mm	M30x1.5	63 mm	80 mm	40	—
47BT40ER40100	BT	—	ER40	3-26 mm	M30x1.5	63 mm	100 mm	40	—
47ISO40ER40100	SK / ISO	—	ER40	3-26 mm	M30x1.5	63 mm	100 mm	40	—
47BT40ER50100	BT	—	ER50	10-34 mm	M30x1.5	78 mm	100 mm	40	—
47ISO40ER50100	SK / ISO	—	ER50	10-34 mm	M30x1.5	78 mm	100 mm	40	—
47BT40ER50160	BT	—	ER50	10-34 mm	M30x1.5	78 mm	160 mm	40	250
47ISO40ER50160	SK / ISO	—	ER50	10-34 mm	M30x1.5	78 mm	160 mm	40	250
47BT50ER1680	BT	—	ER16	1-10 mm	M10x1	28 mm	80 mm	50	—
47ISO50ER1680	SK / ISO	—	ER16	1-10 mm	M10x1	28 mm	80 mm	50	—
47BT50ER16100	BT	—	ER16	1-10 mm	M10x1	28 mm	100 mm	50	—
47ISO50ER16100	SK / ISO	—	ER16	1-10 mm	M10x1	28 mm	100 mm	50	—
47BT50ER2080	BT	—	ER20	1-13 mm	M12x1.5	34 mm	80 mm	50	—
47ISO50ER2080	SK / ISO	—	ER20	1-13 mm	M12x1.5	34 mm	80 mm	50	—
47BT50ER20100	BT	—	ER20	1-13 mm	M12x1.5	34 mm	100 mm	50	—
47ISO50ER20100	SK / ISO	—	ER20	1-13 mm	M12x1.5	34 mm	100 mm	50	—
47BT50ER2580	BT	—	ER25	1-16 mm	M18x1.5	42 mm	80 mm	50	160
47ISO50ER2580	SK / ISO	—	ER25	1-16 mm	M18x1.5	42 mm	80 mm	50	160
47BT50ER25100	BT	—	ER25	1-16 mm	M18x1.5	42 mm	100 mm	50	—
47ISO50ER25100	SK / ISO	—	ER25	1-16 mm	M18x1.5	42 mm	100 mm	50	—
47BT50ER3280	BT	—	ER32	2-20 mm	M22x1.5	50 mm	80 mm	50	200
47ISO50ER3280	SK / ISO	—	ER32	2-20 mm	M22x1.5	50 mm	80 mm	50	200
47BT50ER32100	BT	—	ER32	2-20 mm	M22x1.5	50 mm	100 mm	50	—
47ISO50ER32100	SK / ISO	—	ER32	2-20 mm	M22x1.5	50 mm	100 mm	50	—
47BT50ER4080	BT	—	ER40	3-26 mm	M30x1.5	63 mm	80 mm	50	—
47ISO50ER4080	SK / ISO	—	ER40	3-26 mm	M30x1.5	63 mm	80 mm	50	—
47BT50ER40100	BT	—	ER40	3-26 mm	M30x1.5	63 mm	100 mm	50	—
47ISO50ER40100	SK / ISO	—	ER40	3-26 mm	M30x1.5	63 mm	100 mm	50	—
47BT50ER50100	BT	—	ER50	10-34 mm	M30x1.5	78 mm	100 mm	50	—
47ISO50ER50100	SK / ISO	—	ER50	10-34 mm	M30x1.5	78 mm	100 mm	50	—
47BT50ER50160	BT	—	ER50	10-34 mm	M30x1.5	78 mm	160 mm	50	—
47ISO50ER50160	SK / ISO	—	ER50	10-34 mm	M30x1.5	78 mm	160 mm	50	—
47BT30ER20150	BT	—	ER20	1-13 mm	M12x1.5	34 mm	150 mm	30	—
47ISO30ER20150	SK / ISO	—	ER20	1-13 mm	M12x1.5	34 mm	150 mm	30	—
47BT30ER25150	BT	—	ER25	1-16 mm	M18x1.5	42 mm	150 mm	30	—
47ISO30ER25150	SK / ISO	—	ER25	1-16 mm	M18x1.5	42 mm	150 mm	30	—
47BT40ER16200	BT	—	ER16	1-10 mm	M10x1	28 mm	200 mm	40	—
47ISO40ER16200	SK / ISO	—	ER16	1-10 mm	M10x1	28 mm	200 mm	40	—
47BT40ER20150	BT	—	ER20	1-13 mm	M12x1.5	34 mm	150 mm	40	—
47ISO40ER20150	SK / ISO	—	ER20	1-13 mm	M12x1.5	34 mm	150 mm	40	—
47BT40ER20200	BT	—	ER20	1-13 mm	M12x1.5	34 mm	200 mm	40	—
47ISO40ER20200	SK / ISO	—	ER20	1-13 mm	M12x1.5	34 mm	200 mm	40	—
47BT40ER25150	BT	—	ER25	1-16 mm	M18x1.5	42 mm	150 mm	40	—
47ISO40ER25150	SK / ISO	—	ER25	1-16 mm	M18x1.5	42 mm	150 mm	40	—
47BT40ER25200	BT	—	ER25	1-16 mm	M18x1.5	42 mm	200 mm	40	—
47ISO40ER25200	SK / ISO	—	ER25	1-16 mm	M18x1.5	42 mm	200 mm	40	—
47BT50ER16200	BT	—	ER16	1-10 mm	M10x1	28 mm	200 mm	50	—
47ISO50ER16200	SK / ISO	—	ER16	1-10 mm	M10x1	28 mm	200 mm	50	—
47BT50ER20150	BT	—	ER20	1-13 mm	M12x1.5	34 mm	150 mm	50	—
47ISO50ER20150	SK / ISO	—	ER20	1-13 mm	M12x1.5	34 mm	150 mm	50	—
47BT50ER20200	BT	—	ER20	1-13 mm	M12x1.5	34 mm	200 mm	50	—
47ISO50ER20200	SK / ISO	—	ER20	1-13 mm	M12x1.5	34 mm	200 mm	50	—
47BT50ER25150	BT	—	ER25	1-16 mm	M18x1.5	42 mm	150 mm	50	—
47ISO50ER25150	SK / ISO	—	ER25	1-16 mm	M18x1.5	42 mm	150 mm	50	—
47BT50ER25200	BT	—	ER25	1-16 mm	M18x1.5	42 mm	200 mm	50	—
47ISO50ER25200	SK / ISO	—	ER25	1-16 mm	M18x1.5	42 mm	200 mm	50	—
47BT50ER32150	BT	—	ER32	2-20 mm	M22x1.5	48 mm	150 mm	50	—
47ISO50ER32150	SK / ISO	—	ER32	2-20 mm	M22x1.5	48 mm	150 mm	50	—
47BT50ER32200	BT	—	ER32	2-20 mm	M22x1.5	48 mm	200 mm	50	—
47ISO50ER32200	SK / ISO	—	ER32	2-20 mm	M22x1.5	48 mm	200 mm	50	—
47BT40ER16150	BT	—	ER16	1-10 mm	M10x1	28 mm	150 mm	40	—
47ISO40ADER16150	SK / ISO	—	ER16	1-10 mm	M10x1	28 mm	150 mm	40	—
47BT40ER32150	BT	—	ER32	2-20 mm	M22x1.5	50 mm	150 mm	40	—
47ISO40ADER32150	SK / ISO	—	ER32	2-20 mm	M22x1.5	50 mm	150 mm	40	—
47BT40ER32250	BT	—	ER32	2-20 mm	M22x1.5	50 mm	250 mm	40	—
47ISO40ADER32250	SK / ISO	—	ER32	2-20 mm	M22x1.5	50 mm	250 mm	40	—
47BT40ER40150	BT	—	ER40	3-26 mm	M30x1.5	63 mm	150 mm	40	—
47ISO40ADER40150	SK / ISO	—	ER40	3-26 mm	M30x1.5	63 mm	150 mm	40	—
47BT40ER40200	BT	—	ER40	3-26 mm	M30x1.5	63 mm	200 mm	40	—
47ISO40ADER40200	SK / ISO	—	ER40	3-26 mm	M30x1.5	63 mm	200 mm	40	—
47BT50ER16150	BT	—	ER16	1-10 mm	M10x1	28 mm	150 mm	50	—
47ISO50ADER16150	SK / ISO	—	ER16	1-10 mm	M10x1	28 mm	150 mm	50	—
47BT50ER16250	BT	—	ER16	1-10 mm	M10x1	28 mm	250 mm	50	—
47ISO50ADER16250	SK / ISO	—	ER16	1-10 mm	M10x1	28 mm	250 mm	50	—
47BT50ER25250	BT	—	ER25	1-16 mm	M18x1.5	42 mm	250 mm	50	—
47ISO50ADER25250	SK / ISO	—	ER25	1-16 mm	M18x1.5	42 mm	250 mm	50	—
47BT50ER25260	BT	—	ER25	1-16 mm	M18x1.5	42 mm	260 mm	50	—
47ISO50ADER25260	SK / ISO	—	ER25	1-16 mm	M18x1.5	42 mm	260 mm	50	—
47BT50ER25300	BT	—	ER25	1-16 mm	M18x1.5	42 mm	300 mm	50	—
47ISO50ADER25300	SK / ISO	—	ER25	1-16 mm	M18x1.5	42 mm	300 mm	50	—
47BT50ER32200	BT	—	ER32	2-20 mm	M22x1.5	48 mm	200 mm	50	—
47ISO50ADER32200	SK / ISO	—	ER32	2-20 mm	M22x1.5	48 mm	200 mm	50	—
47BT50ER32250	BT	—	ER32	2-20 mm	M22x1.5	48 mm	250 mm	50	—
47ISO50ADER32250	SK / ISO	—	ER32	2-20 mm	M22x1.5	48 mm	250 mm	50	—
47BT50ER32300	BT	—	ER32	2-20 mm	M22x1.5	48 mm	300 mm	50	—
47ISO50ADER32300	SK / ISO	—	ER32	2-20 mm	M22x1.5	48 mm	300 mm	50	—

Frequently asked questions

What is the Collet Chucks ER?

Collet Chucks ER (MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A)) is a precision CNC Tool Holders product manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned. Precision ER Collet Chucks for high-speed machining. Available in all major shank types.

Which shank types are available for Collet Chucks ER?

Collet Chucks ER is available in HSK-A, BT, SK / ISO shanks. Across these shanks there are 144 catalogue ordering codes to choose from.

What standard does the Collet Chucks ER conform to?

The Collet Chucks ER conforms to MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A). Every unit is MPT-tested (Magnetic Particle Testing) and proof-tested at 2.5× clamping force before dispatch.

Who manufactures the Collet Chucks ER and where?

Collet Chucks ER is manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned. Contact sales at +91-9538456478 or ptpcnc@ptpcnctoolings.com for pricing, DXF/STEP CAD files, and lead times.

+91 95384 56478 ptpcnc@ptpcnctoolings.com

Belgaum, India

PTPCNC

Toolings Pvt. Ltd.

Precision Tooling Since 1985

Get Quote

CAT shank

Collet Chucks ER

Name: Collet Chucks ER
Brand: PTP CNC Toolings
Availability: InStock

MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A) · Cat. Pages 45-46

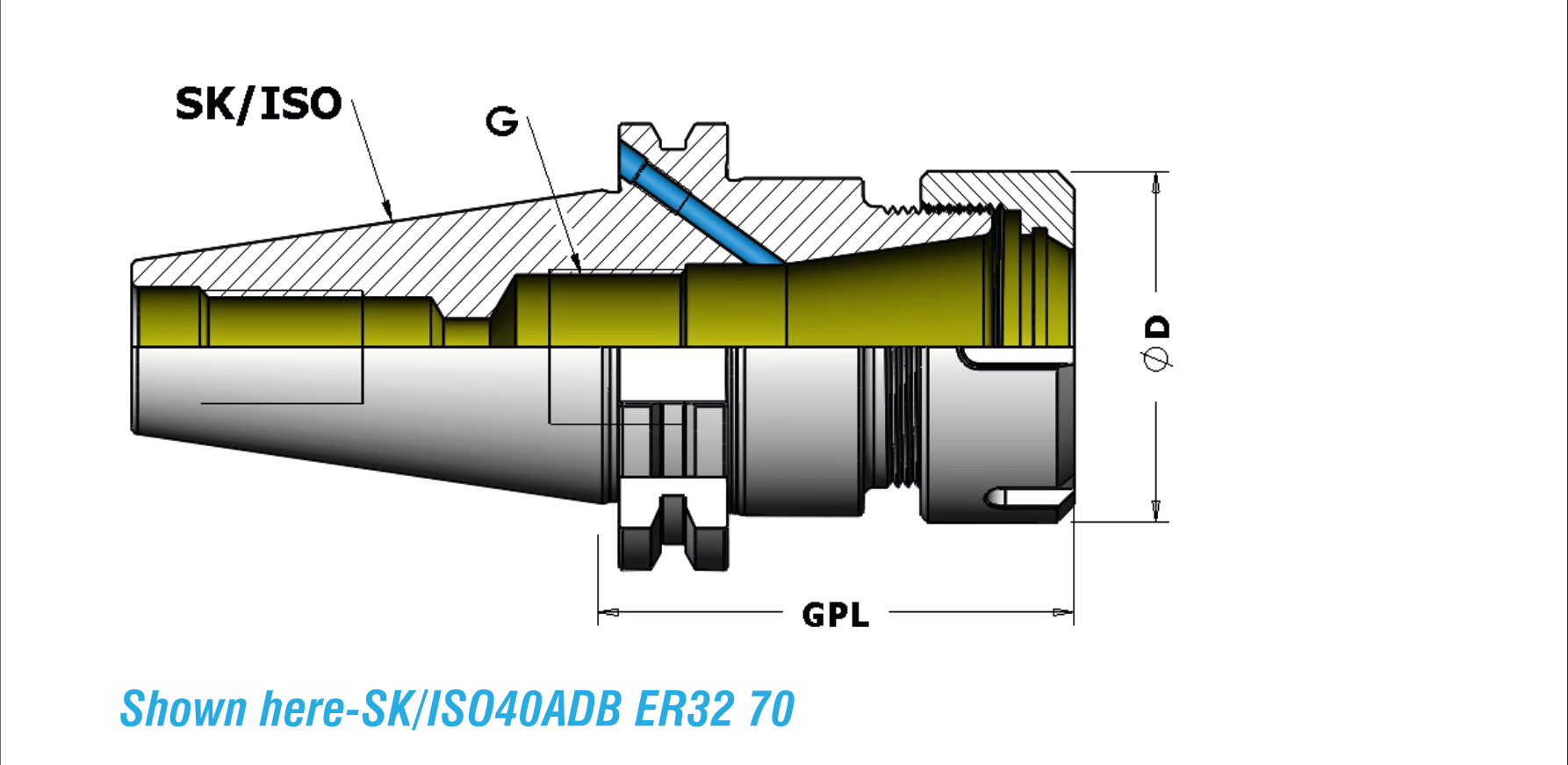

CATTechnical Drawing

Drag to pan · scroll to zoom · double-click to fit

CAT Ordering Codes

CAT ANSI/ASME B5.50

59 codes

All dimensions in mm. Form: AD. FCC (Face Coolant Channel) made on demand.

Taper

Taper	CAT Code	Collet	Range	d	GPL	Nut Thread	Form	Stock
30	47CAT30ER1660	ER16	1-10	28	60	M10x1	AD	—
30	47CAT30ER16100	ER16	1-10	28	100	M10x1	AD	—
30	47CAT30ER2060	ER20	1-13	32	60	M12x1.5	AD	—
30	47CAT30ER20100	ER20	1-13	32	100	M12x1.5	AD	—
30	47CAT30ER20150	ER20	1-13	34	150	M12x1.5	AD	—
30	47CAT30ER2560	ER25	1-16	42	60	M18x1.5	AD	—
30	47CAT30ER25100	ER25	1-16	42	100	M18x1.5	AD	—
30	47CAT30ER25150	ER25	1-16	42	150	M18x1.5	AD	—
30	47CAT30ER3260	ER32	2-20	50	60	M22x1.5	AD	—
30	47CAT30ER32100	ER32	2-20	50	100	M22x1.5	AD	—
40	47CAT40ER1670	ER16	1-10	28	70	M10x1	AD	—
40	47CAT40ER16100	ER16	1-10	28	100	M10x1	AD	—
40	47CAT40ADER16150	ER16	1-10	28	150	M10x1	AD	—
40	47CAT40ER16200	ER16	1-10	28	200	M10x1	AD	—
40	47CAT40ER2070	ER20	1-13	34	70	M12x1.5	AD	—
40	47CAT40ER20100	ER20	1-13	34	100	M12x1.5	AD	—
40	47CAT40ER20150	ER20	1-13	34	150	M12x1.5	AD	—
40	47CAT40ER20200	ER20	1-13	34	200	M12x1.5	AD	—
40	47CAT40ER2570	ER25	1-16	42	70	M18x1.5	AD	—
40	47CAT40ER25100	ER25	1-16	42	100	M18x1.5	AD	—
40	47CAT40ER25150	ER25	1-16	42	150	M18x1.5	AD	—
40	47CAT40ER25200	ER25	1-16	42	200	M18x1.5	AD	—
40	47CAT40ER3270	ER32	2-20	50	70	M22x1.5	AD	—
40	47CAT40ER32100	ER32	2-20	50	100	M22x1.5	AD	—
40	47CAT40ADER32150	ER32	2-20	50	150	M22x1.5	AD	—
40	47CAT40ADER32250	ER32	2-20	50	250	M22x1.5	AD	—
40	47CAT40ER4080	ER40	3-26	63	80	M30x1.5	AD	—
40	47CAT40ER40100	ER40	3-26	63	100	M30x1.5	AD	—
40	47CAT40ADER40150	ER40	3-26	63	150	M30x1.5	AD	—
40	47CAT40ADER40200	ER40	3-26	63	200	M30x1.5	AD	—
40	47CAT40ER50100	ER50	10-34	78	100	M30x1.5	AD	—
40	47CAT40ER50160	ER50	10-34	78	160	M30x1.5	AD	—
50	47CAT50ER1680	ER16	1-10	28	80	M10x1	AD	—
50	47CAT50ER16100	ER16	1-10	28	100	M10x1	AD	—
50	47CAT50ADER16150	ER16	1-10	28	150	M10x1	AD	—
50	47CAT50ER16200	ER16	1-10	28	200	M10x1	AD	—
50	47CAT50ADER16250	ER16	1-10	28	250	M10x1	AD	—
50	47CAT50ER2080	ER20	1-13	34	80	M12x1.5	AD	—
50	47CAT50ER20100	ER20	1-13	34	100	M12x1.5	AD	—
50	47CAT50ER20150	ER20	1-13	34	150	M12x1.5	AD	—
50	47CAT50ER20200	ER20	1-13	34	200	M12x1.5	AD	—
50	47CAT50ER2580	ER25	1-16	42	80	M18x1.5	AD	—
50	47CAT50ER25100	ER25	1-16	42	100	M18x1.5	AD	—
50	47CAT50ER25150	ER25	1-16	42	150	M18x1.5	AD	—
50	47CAT50ER25200	ER25	1-16	42	200	M18x1.5	AD	—
50	47CAT50ADER25250	ER25	1-16	42	250	M18x1.5	AD	—
50	47CAT50ADER25260	ER25	1-16	42	260	M18x1.5	AD	—
50	47CAT50ADER25300	ER25	1-16	42	300	M18x1.5	AD	—
50	47CAT50ER32150	ER32	2-20	48	150	M22x1.5	AD	—
50	47CAT50ER32200	ER32	2-20	48	200	M22x1.5	AD	—
50	47CAT50ADER32200	ER32	2-20	48	200	M22x1.5	AD	—
50	47CAT50ADER32250	ER32	2-20	48	250	M22x1.5	AD	—
50	47CAT50ADER32300	ER32	2-20	48	300	M22x1.5	AD	—
50	47CAT50ER3280	ER32	2-20	50	80	M22x1.5	AD	—
50	47CAT50ER32100	ER32	2-20	50	100	M22x1.5	AD	—
50	47CAT50ER4080	ER40	3-26	63	80	M30x1.5	AD	—
50	47CAT50ER40100	ER40	3-26	63	100	M30x1.5	AD	—
50	47CAT50ER50100	ER50	10-34	78	100	M30x1.5	AD	—
50	47CAT50ER50160	ER50	10-34	78	160	M30x1.5	AD	—

Specifications

taper

AT3 or Better

tir

TIR of Tool Receiver wrt Shank Taper - 0.005 max

balance

Pre-Balanced G6.3 @ 15000 rpm Standard

fine Balance

Fine Balanced G2.5 @ 25000 rpm On Demand

forms

Standard Forms Made - AD, AD+B

fcc

FCC - Face Coolant Channel - Made on Demand

AVAILABLE SHANKS

MAS BT (ISO 7388-2-J)DIN 69871 (ISO 7388-1-A)CAT ANSI/ASME B5.50ISO 12164-1 (DIN 69893-1) HSKDIN 2080 - IS 2340
