Combi Shell Mill Adapters (CSMA) · HSK-A shank
47HSKA100CSMA1665
47HSKA100CSMA1665 — Combi Shell Mill Adapters (CSMA), HSK-A shank (ISO / DIN). Size 100, Bore / Tool Ø (d) 16 mm, Body Ø (C) 32 mm, H 27 mm, Gauge Length (GPL) 65 mm. Precision-manufactured by PTP CNC Toolings, Belgaum, India. ISO 9001 certified, proof-tested at 2.5× clamping force. Request a quote and CAD files.
About 47HSKA100CSMA1665
47HSKA100CSMA1665 is a Combi Shell Mill Adapters (CSMA) with a HSK-A shank that is a combi shell-mill arbor that drives face and shell mills across a range of bore sizes, conforming to ISO / DIN. It is designed to fit high-speed machining centres with HSK-A hollow-taper spindles (DIN 69893-1 / ISO 12164-1). It is precision-manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned, and proof-tested at 2.5× clamping force before dispatch.

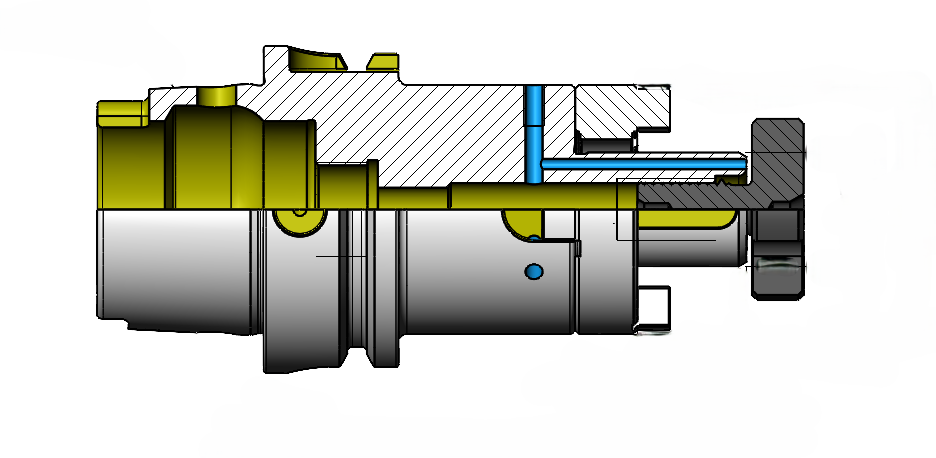

Key dimensions for 47HSKA100CSMA1665: a size of 100, a bore / tool ø of 16 mm, a body ø of 32 mm, a h of 27 mm, a gauge length of 65 mm, a pilot ø of 17 mm. Full specifications are listed in the table below; request DXF/STEP CAD files for exact geometry.
47HSKA100CSMA1665 belongs to the Combi Shell Mill Adapters (CSMA) series. Adjacent sizes and configurations in the same series include 47HSKA63CSMA4070, 47HSKA100CSMA2265, 47HSKA63CSMA3265, 47HSKA100CSMA2765 — compare their dimensions to select the correct HSK-A model for your spindle and tool diameter.
Specifications
| Ordering Code | 47HSKA100CSMA1665 |
|---|---|
| Product | Combi Shell Mill Adapters (CSMA) |
| Shank Type | HSK-A |
| Standard | ISO / DIN |
| Size | 100 |
| Bore / Tool Ø (d) | 16 mm |
| Body Ø (C) | 32 mm |
| H | 27 mm |
| Gauge Length (GPL) | 65 mm |
| Pilot Ø | 17 mm |
Frequently asked questions
What are the specifications of 47HSKA100CSMA1665?
47HSKA100CSMA1665 is a Combi Shell Mill Adapters (CSMA) with a HSK-A shank, conforming to ISO / DIN. Key specifications — Size: 100; Bore / Tool Ø (d): 16 mm; Body Ø (C): 32 mm; H: 27 mm; Gauge Length (GPL): 65 mm; Pilot Ø: 17 mm.
What is 47HSKA100CSMA1665?
47HSKA100CSMA1665 is the ordering code for a Combi Shell Mill Adapters (CSMA) from PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned.
What machines is 47HSKA100CSMA1665 compatible with?
47HSKA100CSMA1665 fits high-speed machining centres with HSK-A hollow-taper spindles (DIN 69893-1 / ISO 12164-1). Confirm your spindle taper and drawbar before ordering. HSK tapers are clamped by the spindle, so no pull stud is needed.
How do I order 47HSKA100CSMA1665?
Request a quote for 47HSKA100CSMA1665 from PTP CNC Toolings by phone (+91-9538456478), email (ptpcnc@ptpcnctoolings.com), or WhatsApp. CAD files (DXF/STEP) are available on request.
