JIS Pull Studs · Pull Stud shank
PSJIS5037

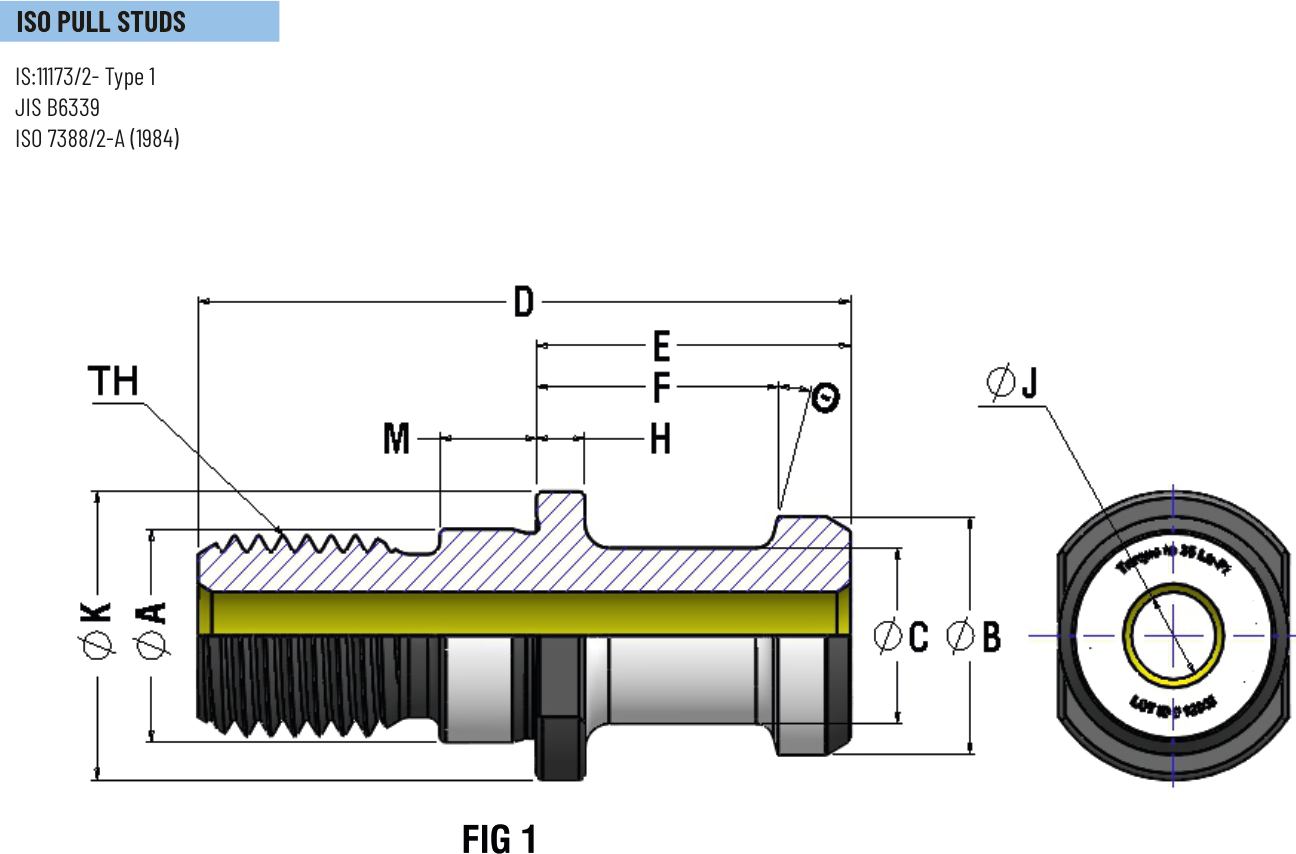

PSJIS5037 — JIS Pull Studs, Pull Stud shank (JIS B6339 · ISO 7388-3:2016(E)). Thread M24, Knob Ø (A) 25 mm, Length (B) 28 mm, Neck Ø (C) 21 mm, Overall Length (D) 74 mm. Precision-manufactured by PTP CNC Toolings, Belgaum, India. ISO 9001 certified, proof-tested at 2.5× clamping force. Request a quote and CAD files.
About PSJIS5037
PSJIS5037 is a JIS Pull Studs with a Pull Stud shank that retains a toolholder in the spindle taper per JIS B 6339, conforming to JIS B6339 · ISO 7388-3:2016(E). It is designed to fit the drawbar of a CNC machining-centre spindle. It is precision-manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned, and proof-tested at 2.5× clamping force before dispatch.
Key dimensions for PSJIS5037: a thread of M24, a knob ø of 25 mm, a length of 28 mm, a neck ø of 21 mm, a overall length of 74 mm, a e of 34 mm. Full specifications are listed in the table below; request DXF/STEP CAD files for exact geometry.
PSJIS5037 belongs to the JIS Pull Studs series. Adjacent sizes and configurations in the same series include PSJIS4013O, PSJIS5037C, PSJIS4013COOT, PSJIS5037CI — compare their dimensions to select the correct Pull Stud model for your spindle and tool diameter.
Specifications
| Ordering Code | PSJIS5037 |
|---|---|
| Product | JIS Pull Studs |
| Shank Type | Pull Stud |
| Standard | JIS B6339 · ISO 7388-3:2016(E) |
| Thread | M24 |
| Knob Ø (A) | 25 mm |
| Length (B) | 28 mm |
| Neck Ø (C) | 21 mm |
| Overall Length (D) | 74 mm |
| E | 34 mm |
| F | 25 mm |
| Flange Width (H) | 7 mm |
| K | 38 mm |
| Head Angle | 15° |
| Size | 50 |
Frequently asked questions
What are the specifications of PSJIS5037?
PSJIS5037 is a JIS Pull Studs with a Pull Stud shank, conforming to JIS B6339 · ISO 7388-3:2016(E). Key specifications — Thread: M24; Knob Ø (A): 25 mm; Length (B): 28 mm; Neck Ø (C): 21 mm; Overall Length (D): 74 mm; E: 34 mm.
What is PSJIS5037?
PSJIS5037 is the ordering code for a JIS Pull Studs from PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned.
What machines is PSJIS5037 compatible with?
PSJIS5037 fits the drawbar of a CNC machining-centre spindle. Confirm your spindle taper and drawbar before ordering.
How do I order PSJIS5037?
Request a quote for PSJIS5037 from PTP CNC Toolings by phone (+91-9538456478), email (ptpcnc@ptpcnctoolings.com), or WhatsApp. CAD files (DXF/STEP) are available on request.
