Shrink Fit Holders SFH — specifications

Shrink Fit Holders SFH for carbide cutters with h6 shank. Maximum concentricity and gripping force through thermal interference fit. Requires Heat Shrink Machine.

Standard:

MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A)

Shank types:

HSK-A, BT, SK / ISO

Manufacturer:

PTP CNC Toolings Pvt. Ltd., Belgaum, India

Ordering codes:

Full specification table for Shrink Fit Holders SFH
Ordering Code	Shank	Size	Bore / Tool Ø (d)	Gauge Length (GPL)	Screw Thread	Body Ø (C)	Spindle Taper	Body Ø	Nose Length	gplLong
47HSKA50SFH0680	HSK-A	50	6 mm	80 mm	M5	—	—	—	—	—
47HSKA50SFH0880	HSK-A	50	8 mm	80 mm	M6	—	—	—	—	—
47HSKA50SFH1085	HSK-A	50	10 mm	85 mm	M8	42 mm	—	—	—	—
47HSKA50SFH1290	HSK-A	50	12 mm	90 mm	M10	—	—	—	—	—
47HSKA50SFH1490	HSK-A	50	14 mm	90 mm	M10	—	—	—	—	—
47HSKA50SFH1695	HSK-A	50	16 mm	95 mm	M12	—	—	—	—	—
47HSKA50SFH1895	HSK-A	50	18 mm	95 mm	M12	—	—	—	—	—
47HSKA50SFH20100	HSK-A	50	20 mm	100 mm	M16	52 mm	—	—	—	—
47HSKA63SFH0680	HSK-A	63	6 mm	80 mm	M5	—	—	—	—	—
47HSKA63SFH0880	HSK-A	63	8 mm	80 mm	M6	—	—	—	—	—
47HSKA63SFH1085	HSK-A	63	10 mm	85 mm	M8	42 mm	—	—	—	—
47HSKA63SFH1290	HSK-A	63	12 mm	90 mm	M10	—	—	—	—	—
47HSKA63SFH1490	HSK-A	63	14 mm	90 mm	M10	—	—	—	—	—
47HSKA63SFH1695	HSK-A	63	16 mm	95 mm	M12	—	—	—	—	—
47HSKA63SFH1895	HSK-A	63	18 mm	95 mm	M12	—	—	—	—	—
47HSKA63SFH20100	HSK-A	63	20 mm	100 mm	M16	52 mm	—	—	—	—
47HSKA63SFH25115	HSK-A	63	25 mm	115 mm	M16	—	—	—	—	—
47HSKA63SFH32120	HSK-A	63	32 mm	120 mm	M16	—	—	—	—	—
47HSKA100SFH0685	HSK-A	100	6 mm	85 mm	M5	—	—	—	—	—
47HSKA100SFH0885	HSK-A	100	8 mm	85 mm	M6	—	—	—	—	—
47HSKA100SFH1090	HSK-A	100	10 mm	90 mm	M8	42 mm	—	—	—	—
47HSKA100SFH1295	HSK-A	100	12 mm	95 mm	M10	—	—	—	—	—
47HSKA100SFH1495	HSK-A	100	14 mm	95 mm	M10	—	—	—	—	—
47HSKA100SFH16100	HSK-A	100	16 mm	100 mm	M12	—	—	—	—	—
47HSKA100SFH18100	HSK-A	100	18 mm	100 mm	M12	—	—	—	—	—
47HSKA100SFH20105	HSK-A	100	20 mm	105 mm	M16	52 mm	—	—	—	—
47HSKA100SFH25115	HSK-A	100	25 mm	115 mm	M16	—	—	—	—	—
47HSKA100SFH32120	HSK-A	100	32 mm	120 mm	M16	—	—	—	—	—
47BT30SFH0680	BT	—	6 mm	80 mm	M5	27 mm	30	21 mm	36 mm	—
47ISO30SFH0680	SK / ISO	—	6 mm	80 mm	M5	27 mm	30	21 mm	36 mm	—
47BT30SFH0880	BT	—	8 mm	80 mm	M6	27 mm	30	21 mm	36 mm	—
47ISO30SFH0880	SK / ISO	—	8 mm	80 mm	M6	27 mm	30	21 mm	36 mm	—
47BT30SFH1080	BT	—	10 mm	80 mm	M8	32 mm	30	24 mm	42 mm	—
47ISO30SFH1080	SK / ISO	—	10 mm	80 mm	M8	32 mm	30	24 mm	42 mm	—
47BT30SFH1280	BT	—	12 mm	80 mm	M10	32 mm	30	24 mm	42 mm	—
47ISO30SFH1280	SK / ISO	—	12 mm	80 mm	M10	32 mm	30	24 mm	42 mm	—
47BT30SFH1480	BT	—	14 mm	80 mm	M10	34 mm	30	27 mm	50 mm	120, 160
47ISO30SFH1480	SK / ISO	—	14 mm	80 mm	M10	34 mm	30	27 mm	50 mm	120, 160
47BT30SFH1680	BT	—	16 mm	80 mm	M12	34 mm	30	27 mm	50 mm	—
47ISO30SFH1680	SK / ISO	—	16 mm	80 mm	M12	34 mm	30	27 mm	50 mm	—
47BT30SFH1880	BT	—	18 mm	80 mm	M12	42 mm	30	33 mm	52 mm	—
47ISO30SFH1880	SK / ISO	—	18 mm	80 mm	M12	42 mm	30	33 mm	52 mm	—
47BT30SFH2080	BT	—	20 mm	80 mm	M16	42 mm	30	33 mm	52 mm	—
47ISO30SFH2080	SK / ISO	—	20 mm	80 mm	M16	42 mm	30	33 mm	52 mm	—
47BT40SFH0690	BT	—	6 mm	90 mm	M5	27 mm	40	21 mm	36 mm	160, 220
47ISO40SFH0690	SK / ISO	—	6 mm	90 mm	M5	27 mm	40	21 mm	36 mm	160, 220
47BT40SFH0890	BT	—	8 mm	90 mm	M6	27 mm	40	21 mm	36 mm	160, 220
47ISO40SFH0890	SK / ISO	—	8 mm	90 mm	M6	27 mm	40	21 mm	36 mm	160, 220
47BT40SFH1090	BT	—	10 mm	90 mm	M8	32 mm	40	24 mm	42 mm	160, 220
47ISO40SFH1090	SK / ISO	—	10 mm	90 mm	M8	32 mm	40	24 mm	42 mm	160, 220
47BT40SFH1290	BT	—	12 mm	90 mm	M10	32 mm	40	24 mm	42 mm	160, 220
47ISO40SFH1290	SK / ISO	—	12 mm	90 mm	M10	32 mm	40	24 mm	42 mm	160, 220
47BT40SFH1490	BT	—	14 mm	90 mm	M10	34 mm	40	27 mm	50 mm	160, 220
47ISO40SFH1490	SK / ISO	—	14 mm	90 mm	M10	34 mm	40	27 mm	50 mm	160, 220
47BT40SFH1690	BT	—	16 mm	90 mm	M12	34 mm	40	27 mm	50 mm	160, 220
47ISO40SFH1690	SK / ISO	—	16 mm	90 mm	M12	34 mm	40	27 mm	50 mm	160, 220
47BT40SFH1890	BT	—	18 mm	90 mm	M12	42 mm	40	33 mm	52 mm	160, 220
47ISO40SFH1890	SK / ISO	—	18 mm	90 mm	M12	42 mm	40	33 mm	52 mm	160, 220
47BT40SFH2090	BT	—	20 mm	90 mm	M16	42 mm	40	33 mm	52 mm	160, 220
47ISO40SFH2090	SK / ISO	—	20 mm	90 mm	M16	42 mm	40	33 mm	52 mm	160, 220
47BT40SFH25100	BT	—	25 mm	100 mm	M16	53 mm	40	44 mm	58 mm	—
47ISO40SFH25100	SK / ISO	—	25 mm	100 mm	M16	53 mm	40	44 mm	58 mm	—
47BT40SFH32100	BT	—	32 mm	100 mm	M16	53 mm	40	44 mm	58 mm	—
47ISO40SFH32100	SK / ISO	—	32 mm	100 mm	M16	53 mm	40	44 mm	58 mm	—
47BT50SFH06100	BT	—	6 mm	100 mm	M5	27 mm	50	21 mm	36 mm	160, 220
47ISO50SFH06100	SK / ISO	—	6 mm	100 mm	M5	27 mm	50	21 mm	36 mm	160, 220
47BT50SFH08100	BT	—	8 mm	100 mm	M6	27 mm	50	21 mm	36 mm	160, 220
47ISO50SFH08100	SK / ISO	—	8 mm	100 mm	M6	27 mm	50	21 mm	36 mm	160, 220
47BT50SFH10100	BT	—	10 mm	100 mm	M8	32 mm	50	24 mm	42 mm	160, 220
47ISO50SFH10100	SK / ISO	—	10 mm	100 mm	M8	32 mm	50	24 mm	42 mm	160, 220
47BT50SFH12100	BT	—	12 mm	100 mm	M10	32 mm	50	24 mm	42 mm	160, 220
47ISO50SFH12100	SK / ISO	—	12 mm	100 mm	M10	32 mm	50	24 mm	42 mm	160, 220
47BT50SFH14100	BT	—	14 mm	100 mm	M10	34 mm	50	27 mm	50 mm	160, 220
47ISO50SFH14100	SK / ISO	—	14 mm	100 mm	M10	34 mm	50	27 mm	50 mm	160, 220
47BT50SFH16100	BT	—	16 mm	100 mm	M12	34 mm	50	27 mm	50 mm	160, 220
47ISO50SFH16100	SK / ISO	—	16 mm	100 mm	M12	34 mm	50	27 mm	50 mm	160, 220
47BT50SFH18100	BT	—	18 mm	100 mm	M12	42 mm	50	33 mm	52 mm	160, 220
47ISO50SFH18100	SK / ISO	—	18 mm	100 mm	M12	42 mm	50	33 mm	52 mm	160, 220
47BT50SFH20100	BT	—	20 mm	100 mm	M16	42 mm	50	33 mm	52 mm	160, 220
47ISO50SFH20100	SK / ISO	—	20 mm	100 mm	M16	42 mm	50	33 mm	52 mm	160, 220
47BT50SFH25110	BT	—	25 mm	110 mm	M16	53 mm	50	44 mm	58 mm	—
47ISO50SFH25110	SK / ISO	—	25 mm	110 mm	M16	53 mm	50	44 mm	58 mm	—
47BT50SFH32110	BT	—	32 mm	110 mm	M16	53 mm	50	44 mm	58 mm	—
47ISO50SFH32110	SK / ISO	—	32 mm	110 mm	M16	53 mm	50	44 mm	58 mm	—

Frequently asked questions

What is the Shrink Fit Holders SFH?

Shrink Fit Holders SFH (MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A)) is a precision CNC Tool Holders product manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned. Shrink Fit Holders SFH for carbide cutters with h6 shank. Maximum concentricity and gripping force through thermal interference fit. Requires Heat Shrink Machine.

Which shank types are available for Shrink Fit Holders SFH?

Shrink Fit Holders SFH is available in HSK-A, BT, SK / ISO shanks. Across these shanks there are 84 catalogue ordering codes to choose from.

What standard does the Shrink Fit Holders SFH conform to?

The Shrink Fit Holders SFH conforms to MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A). Every unit is MPT-tested (Magnetic Particle Testing) and proof-tested at 2.5× clamping force before dispatch.

Who manufactures the Shrink Fit Holders SFH and where?

Shrink Fit Holders SFH is manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned. Contact sales at +91-9538456478 or ptpcnc@ptpcnctoolings.com for pricing, DXF/STEP CAD files, and lead times.

+91 95384 56478 ptpcnc@ptpcnctoolings.com

Belgaum, India

HSK shank

Shrink Fit Holders SFH

MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A) · Cat. Pages 61-62

Also Made in Shanks: CAT ANSI/ASME B5.50 | ISO 12164-1 (DIN 69893-1) HSK | DIN 2080 - IS 2340

For Carbide Cutters with h6 Shank
Requires Heat Shrink Machine
Available at PTP CNC Plant-1

Shrink Fit Holders SFH

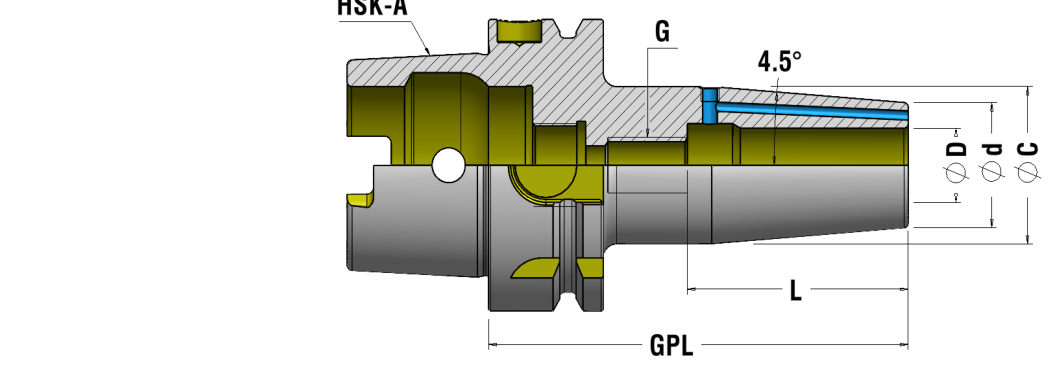

HSKTechnical Drawing

Ordering Codes — Shrink Fit Holders SFH (HSK-A)

Specifications

Shrink Fit Holders SFH

HSKTechnical Drawing

Ordering Codes — Shrink Fit Holders SFH (HSK-A)

Specifications

Ordering Code	Size	d	GPL	Thread	C	Stock
47HSKA50SFH0680	HSK-A 50	6	80	M5	---	—
47HSKA50SFH0880	HSK-A 50	8	80	M6	---	—
47HSKA50SFH1085	HSK-A 50	10	85	M8	42	—
47HSKA50SFH1290	HSK-A 50	12	90	M10	---	—
47HSKA50SFH1490	HSK-A 50	14	90	M10	---	—
47HSKA50SFH1695	HSK-A 50	16	95	M12	---	—
47HSKA50SFH1895	HSK-A 50	18	95	M12	---	—
47HSKA50SFH20100	HSK-A 50	20	100	M16	52	—
47HSKA63SFH0680	HSK-A 63	6	80	M5	---	—
47HSKA63SFH0880	HSK-A 63	8	80	M6	---	—
47HSKA63SFH1085	HSK-A 63	10	85	M8	42	—
47HSKA63SFH1290	HSK-A 63	12	90	M10	---	—
47HSKA63SFH1490	HSK-A 63	14	90	M10	---	—
47HSKA63SFH1695	HSK-A 63	16	95	M12	---	—
47HSKA63SFH1895	HSK-A 63	18	95	M12	---	—
47HSKA63SFH20100	HSK-A 63	20	100	M16	52	—
47HSKA63SFH25115	HSK-A 63	25	115	M16	---	—
47HSKA63SFH32120	HSK-A 63	32	120	M16	---	—
47HSKA100SFH0685	HSK-A 100	6	85	M5	---	—
47HSKA100SFH0885	HSK-A 100	8	85	M6	---	—
47HSKA100SFH1090	HSK-A 100	10	90	M8	42	—
47HSKA100SFH1295	HSK-A 100	12	95	M10	---	—
47HSKA100SFH1495	HSK-A 100	14	95	M10	---	—
47HSKA100SFH16100	HSK-A 100	16	100	M12	---	—
47HSKA100SFH18100	HSK-A 100	18	100	M12	---	—
47HSKA100SFH20105	HSK-A 100	20	105	M16	52	—
47HSKA100SFH25115	HSK-A 100	25	115	M16	---	—
47HSKA100SFH32120	HSK-A 100	32	120	M16	---	—
