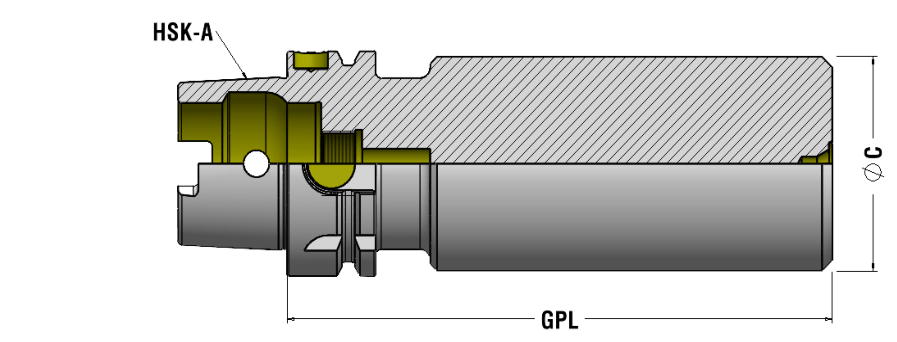

Full specification table for Boring Bar Blanks BBB
Ordering Code	Shank	Size	Bore / Tool Ø (d)	Gauge Length (GPL)	Spindle Taper
46HSKA50BBB3060	HSK-A	50	30 mm	60 mm	—
46HSKA50BBB3560	HSK-A	50	35 mm	60 mm	—
46HSKA50BBB4080	HSK-A	50	40 mm	80 mm	—
46HSKA50BBB45100	HSK-A	50	45 mm	100 mm	—
46HSKA50BBB50100	HSK-A	50	50 mm	100 mm	—
46HSKA50BBB55120	HSK-A	50	55 mm	120 mm	—
46HSKA50BBB60120	HSK-A	50	60 mm	120 mm	—
46HSKA63BBB3060	HSK-A	63	30 mm	60 mm	—
46HSKA63BBB3560	HSK-A	63	35 mm	60 mm	—
46HSKA63BBB4080	HSK-A	63	40 mm	80 mm	—
46HSKA63BBB45100	HSK-A	63	45 mm	100 mm	—
46HSKA63BBB50100	HSK-A	63	50 mm	100 mm	—
46HSKA63BBB55120	HSK-A	63	55 mm	120 mm	—
46HSKA63BBB60120	HSK-A	63	60 mm	120 mm	—
46HSKA63BBB65120	HSK-A	63	65 mm	120 mm	—
46HSKA63BBB70120	HSK-A	63	70 mm	120 mm	—
46HSKA63BBB80120	HSK-A	63	80 mm	120 mm	—
46HSKA63BBB85120	HSK-A	63	85 mm	120 mm	—
46HSKA100BBB4080	HSK-A	100	40 mm	80 mm	—
46HSKA100BBB45100	HSK-A	100	45 mm	100 mm	—
46HSKA100BBB50100	HSK-A	100	50 mm	100 mm	—
46HSKA100BBB55100	HSK-A	100	55 mm	100 mm	—
46HSKA100BBB60120	HSK-A	100	60 mm	120 mm	—
46HSKA100BBB65120	HSK-A	100	65 mm	120 mm	—
46HSKA100BBB70150	HSK-A	100	70 mm	150 mm	—
46HSKA100BBB75150	HSK-A	100	75 mm	150 mm	—
46HSKA100BBB80150	HSK-A	100	80 mm	150 mm	—
46HSKA100BBB85180	HSK-A	100	85 mm	180 mm	—
46HSKA100BBB90180	HSK-A	100	90 mm	180 mm	—
46HSKA100BBB95180	HSK-A	100	95 mm	180 mm	—
46BT30BBB030060	BT	—	30 mm	60 mm	30
46ISO30BBB030060	SK / ISO	—	30 mm	60 mm	30
46BT30BBB030120	BT	—	30 mm	120 mm	30
46ISO30BBB030120	SK / ISO	—	30 mm	120 mm	30
46BT30BBB030150	BT	—	30 mm	150 mm	30
46ISO30BBB030150	SK / ISO	—	30 mm	150 mm	30
46BT30BBB035060	BT	—	35 mm	60 mm	30
46ISO30BBB035060	SK / ISO	—	35 mm	60 mm	30
46BT30BBB035120	BT	—	35 mm	120 mm	30
46ISO30BBB035120	SK / ISO	—	35 mm	120 mm	30
46BT30BBB035150	BT	—	35 mm	150 mm	30
46ISO30BBB035150	SK / ISO	—	35 mm	150 mm	30
46BT30BBB040080	BT	—	40 mm	80 mm	30
46ISO30BBB040080	SK / ISO	—	40 mm	80 mm	30
46BT30BBB040150	BT	—	40 mm	150 mm	30
46ISO30BBB040150	SK / ISO	—	40 mm	150 mm	30
46BT30BBB040180	BT	—	40 mm	180 mm	30
46ISO30BBB040180	SK / ISO	—	40 mm	180 mm	30
46BT30BBB045100	BT	—	45 mm	100 mm	30
46ISO30BBB045100	SK / ISO	—	45 mm	100 mm	30
46BT30BBB045150	BT	—	45 mm	150 mm	30
46ISO30BBB045150	SK / ISO	—	45 mm	150 mm	30
46BT30BBB045180	BT	—	45 mm	180 mm	30
46ISO30BBB045180	SK / ISO	—	45 mm	180 mm	30
46BT30BBB050100	BT	—	50 mm	100 mm	30
46ISO30BBB050100	SK / ISO	—	50 mm	100 mm	30
46BT30BBB050150	BT	—	50 mm	150 mm	30
46ISO30BBB050150	SK / ISO	—	50 mm	150 mm	30
46BT30BBB050180	BT	—	50 mm	180 mm	30
46ISO30BBB050180	SK / ISO	—	50 mm	180 mm	30
46BT40BBB030060	BT	—	30 mm	60 mm	40
46ISO40BBB030060	SK / ISO	—	30 mm	60 mm	40
46BT40BBB030120	BT	—	30 mm	120 mm	40
46ISO40BBB030120	SK / ISO	—	30 mm	120 mm	40
46BT40BBB030150	BT	—	30 mm	150 mm	40
46ISO40BBB030150	SK / ISO	—	30 mm	150 mm	40
46BT40BBB035060	BT	—	35 mm	60 mm	40
46ISO40BBB035060	SK / ISO	—	35 mm	60 mm	40
46BT40BBB035120	BT	—	35 mm	120 mm	40
46ISO40BBB035120	SK / ISO	—	35 mm	120 mm	40
46BT40BBB035150	BT	—	35 mm	150 mm	40
46ISO40BBB035150	SK / ISO	—	35 mm	150 mm	40
46BT40BBB040080	BT	—	40 mm	80 mm	40
46ISO40BBB040080	SK / ISO	—	40 mm	80 mm	40
46BT40BBB040120	BT	—	40 mm	120 mm	40
46ISO40BBB040120	SK / ISO	—	40 mm	120 mm	40
46BT40BBB040150	BT	—	40 mm	150 mm	40
46ISO40BBB040150	SK / ISO	—	40 mm	150 mm	40
46BT40BBB045100	BT	—	45 mm	100 mm	40
46ISO40BBB045100	SK / ISO	—	45 mm	100 mm	40
46BT40BBB045150	BT	—	45 mm	150 mm	40
46ISO40BBB045150	SK / ISO	—	45 mm	150 mm	40
46BT40BBB045180	BT	—	45 mm	180 mm	40
46ISO40BBB045180	SK / ISO	—	45 mm	180 mm	40
46BT40BBB050100	BT	—	50 mm	100 mm	40
46ISO40BBB050100	SK / ISO	—	50 mm	100 mm	40
46BT40BBB050150	BT	—	50 mm	150 mm	40
46ISO40BBB050150	SK / ISO	—	50 mm	150 mm	40
46BT40BBB050180	BT	—	50 mm	180 mm	40
46ISO40BBB050180	SK / ISO	—	50 mm	180 mm	40
46BT40BBB055120	BT	—	55 mm	120 mm	40
46ISO40BBB055120	SK / ISO	—	55 mm	120 mm	40
46BT40BBB055180	BT	—	55 mm	180 mm	40
46ISO40BBB055180	SK / ISO	—	55 mm	180 mm	40
46BT40BBB055200	BT	—	55 mm	200 mm	40
46ISO40BBB055200	SK / ISO	—	55 mm	200 mm	40
46BT40BBB060120	BT	—	60 mm	120 mm	40
46ISO40BBB060120	SK / ISO	—	60 mm	120 mm	40
46BT40BBB060180	BT	—	60 mm	180 mm	40
46ISO40BBB060180	SK / ISO	—	60 mm	180 mm	40
46BT40BBB060200	BT	—	60 mm	200 mm	40
46ISO40BBB060200	SK / ISO	—	60 mm	200 mm	40
46BT40BBB063120	BT	—	63 mm	120 mm	40
46ISO40BBB063120	SK / ISO	—	63 mm	120 mm	40
46BT40BBB063150	BT	—	63 mm	150 mm	40
46ISO40BBB063150	SK / ISO	—	63 mm	150 mm	40
46BT40BBB063180	BT	—	63 mm	180 mm	40
46ISO40BBB063180	SK / ISO	—	63 mm	180 mm	40
46BT40BBB063200	BT	—	63 mm	200 mm	40
46ISO40BBB063200	SK / ISO	—	63 mm	200 mm	40
46BT40BBB063250	BT	—	63 mm	250 mm	40
46ISO40BBB063250	SK / ISO	—	63 mm	250 mm	40
46BT40BBB063300	BT	—	63 mm	300 mm	40
46ISO40BBB063300	SK / ISO	—	63 mm	300 mm	40
46BT40BBB080150	BT	—	80 mm	150 mm	40
46ISO40BBB080150	SK / ISO	—	80 mm	150 mm	40
46BT40BBB080200	BT	—	80 mm	200 mm	40
46ISO40BBB080200	SK / ISO	—	80 mm	200 mm	40
46BT40BBB080250	BT	—	80 mm	250 mm	40
46ISO40BBB080250	SK / ISO	—	80 mm	250 mm	40
46BT40BBB100120	BT	—	100 mm	120 mm	40
46ISO40BBB100120	SK / ISO	—	100 mm	120 mm	40
46BT40BBB100150	BT	—	100 mm	150 mm	40
46ISO40BBB100150	SK / ISO	—	100 mm	150 mm	40
46BT40BBB100200	BT	—	100 mm	200 mm	40
46ISO40BBB100200	SK / ISO	—	100 mm	200 mm	40
46BT40BBB100250	BT	—	100 mm	250 mm	40
46ISO40BBB100250	SK / ISO	—	100 mm	250 mm	40
46BT40BBB120120	BT	—	120 mm	120 mm	40
46ISO40BBB120120	SK / ISO	—	120 mm	120 mm	40
46BT40BBB120150	BT	—	120 mm	150 mm	40
46ISO40BBB120150	SK / ISO	—	120 mm	150 mm	40
46BT40BBB120200	BT	—	120 mm	200 mm	40
46ISO40BBB120200	SK / ISO	—	120 mm	200 mm	40
46BT40BBB120250	BT	—	120 mm	250 mm	40
46ISO40BBB120250	SK / ISO	—	120 mm	250 mm	40
46BT40BBB120300	BT	—	120 mm	300 mm	40
46ISO40BBB120300	SK / ISO	—	120 mm	300 mm	40
46BT50BBB040080	BT	—	40 mm	80 mm	50
46ISO50BBB040080	SK / ISO	—	40 mm	80 mm	50
46BT50BBB040150	BT	—	40 mm	150 mm	50
46ISO50BBB040150	SK / ISO	—	40 mm	150 mm	50
46BT50BBB040180	BT	—	40 mm	180 mm	50
46ISO50BBB040180	SK / ISO	—	40 mm	180 mm	50
46BT50BBB045100	BT	—	45 mm	100 mm	50
46ISO50BBB045100	SK / ISO	—	45 mm	100 mm	50
46BT50BBB045180	BT	—	45 mm	180 mm	50
46ISO50BBB045180	SK / ISO	—	45 mm	180 mm	50
46BT50BBB045220	BT	—	45 mm	220 mm	50
46ISO50BBB045220	SK / ISO	—	45 mm	220 mm	50
46BT50BBB050100	BT	—	50 mm	100 mm	50
46ISO50BBB050100	SK / ISO	—	50 mm	100 mm	50
46BT50BBB050180	BT	—	50 mm	180 mm	50
46ISO50BBB050180	SK / ISO	—	50 mm	180 mm	50
46BT50BBB050220	BT	—	50 mm	220 mm	50
46ISO50BBB050220	SK / ISO	—	50 mm	220 mm	50
46BT50BBB055100	BT	—	55 mm	100 mm	50
46ISO50BBB055100	SK / ISO	—	55 mm	100 mm	50
46BT50BBB055180	BT	—	55 mm	180 mm	50
46ISO50BBB055180	SK / ISO	—	55 mm	180 mm	50
46BT50BBB055220	BT	—	55 mm	220 mm	50
46ISO50BBB055220	SK / ISO	—	55 mm	220 mm	50
46BT50BBB060120	BT	—	60 mm	120 mm	50
46ISO50BBB060120	SK / ISO	—	60 mm	120 mm	50
46BT50BBB060180	BT	—	60 mm	180 mm	50
46ISO50BBB060180	SK / ISO	—	60 mm	180 mm	50
46BT50BBB060220	BT	—	60 mm	220 mm	50
46ISO50BBB060220	SK / ISO	—	60 mm	220 mm	50
46BT50BBB065120	BT	—	65 mm	120 mm	50
46ISO50BBB065120	SK / ISO	—	65 mm	120 mm	50
46BT50BBB065180	BT	—	65 mm	180 mm	50
46ISO50BBB065180	SK / ISO	—	65 mm	180 mm	50
46BT50BBB065220	BT	—	65 mm	220 mm	50
46ISO50BBB065220	SK / ISO	—	65 mm	220 mm	50
46BT50BBB070150	BT	—	70 mm	150 mm	50
46ISO50BBB070150	SK / ISO	—	70 mm	150 mm	50
46BT50BBB070200	BT	—	70 mm	200 mm	50
46ISO50BBB070200	SK / ISO	—	70 mm	200 mm	50
46BT50BBB070250	BT	—	70 mm	250 mm	50
46ISO50BBB070250	SK / ISO	—	70 mm	250 mm	50
46BT50BBB070300	BT	—	70 mm	300 mm	50
46ISO50BBB070300	SK / ISO	—	70 mm	300 mm	50
46BT50BBB080150	BT	—	80 mm	150 mm	50
46ISO50BBB080150	SK / ISO	—	80 mm	150 mm	50
46BT50BBB080200	BT	—	80 mm	200 mm	50
46ISO50BBB080200	SK / ISO	—	80 mm	200 mm	50
46BT50BBB080250	BT	—	80 mm	250 mm	50
46ISO50BBB080250	SK / ISO	—	80 mm	250 mm	50
46BT50BBB080300	BT	—	80 mm	300 mm	50
46ISO50BBB080300	SK / ISO	—	80 mm	300 mm	50
46BT50BBB080350	BT	—	80 mm	350 mm	50
46ISO50BBB080350	SK / ISO	—	80 mm	350 mm	50
46BT50BBB085180	BT	—	85 mm	180 mm	50
46ISO50BBB085180	SK / ISO	—	85 mm	180 mm	50
46BT50BBB085220	BT	—	85 mm	220 mm	50
46ISO50BBB085220	SK / ISO	—	85 mm	220 mm	50
46BT50BBB085280	BT	—	85 mm	280 mm	50
46ISO50BBB085280	SK / ISO	—	85 mm	280 mm	50
46BT50BBB085320	BT	—	85 mm	320 mm	50
46ISO50BBB085320	SK / ISO	—	85 mm	320 mm	50
46BT50BBB095180	BT	—	95 mm	180 mm	50
46ISO50BBB095180	SK / ISO	—	95 mm	180 mm	50
46BT50BBB095280	BT	—	95 mm	280 mm	50
46ISO50BBB095280	SK / ISO	—	95 mm	280 mm	50
46BT50BBB095320	BT	—	95 mm	320 mm	50
46ISO50BBB095320	SK / ISO	—	95 mm	320 mm	50
46BT50BBB120120	BT	—	120 mm	120 mm	50
46ISO50BBB120120	SK / ISO	—	120 mm	120 mm	50
46BT50BBB120150	BT	—	120 mm	150 mm	50
46ISO50BBB120150	SK / ISO	—	120 mm	150 mm	50
46BT50BBB120200	BT	—	120 mm	200 mm	50
46ISO50BBB120200	SK / ISO	—	120 mm	200 mm	50
46BT50BBB120250	BT	—	120 mm	250 mm	50
46ISO50BBB120250	SK / ISO	—	120 mm	250 mm	50
46BT50BBB120300	BT	—	120 mm	300 mm	50
46ISO50BBB120300	SK / ISO	—	120 mm	300 mm	50

Ordering Code

Shank

Size

Bore / Tool Ø (d)

Gauge Length (GPL)

Spindle Taper

46HSKA50BBB3060

HSK-A

30 mm

60 mm

—

46HSKA50BBB3560

HSK-A

35 mm

60 mm

—

46HSKA50BBB4080

HSK-A

40 mm

80 mm

—

46HSKA50BBB45100

HSK-A

45 mm

100 mm

—

46HSKA50BBB50100

HSK-A

50 mm

100 mm

—

46HSKA50BBB55120

HSK-A

55 mm

120 mm

—

46HSKA50BBB60120

HSK-A

60 mm

120 mm

—

46HSKA63BBB3060

HSK-A

30 mm

60 mm

—

46HSKA63BBB3560

HSK-A

35 mm

60 mm

—

46HSKA63BBB4080

HSK-A

40 mm

80 mm

—

46HSKA63BBB45100

HSK-A

45 mm

100 mm

—

46HSKA63BBB50100

HSK-A

50 mm

100 mm

—

46HSKA63BBB55120

HSK-A

55 mm

120 mm

—

46HSKA63BBB60120

HSK-A

60 mm

120 mm

—

46HSKA63BBB65120

HSK-A

65 mm

120 mm

—

46HSKA63BBB70120

HSK-A

70 mm

120 mm

—

46HSKA63BBB80120

HSK-A

80 mm

120 mm

—

46HSKA63BBB85120

HSK-A

85 mm

120 mm

—

46HSKA100BBB4080

HSK-A

100

40 mm

80 mm

—

46HSKA100BBB45100

HSK-A

100

45 mm

100 mm

—

46HSKA100BBB50100

HSK-A

100

50 mm

100 mm

—

46HSKA100BBB55100

HSK-A

100

55 mm

100 mm

—

46HSKA100BBB60120

HSK-A

100

60 mm

120 mm

—

46HSKA100BBB65120

HSK-A

100

65 mm

120 mm

—

46HSKA100BBB70150

HSK-A

100

70 mm

150 mm

—

46HSKA100BBB75150

HSK-A

100

75 mm

150 mm

—

46HSKA100BBB80150

HSK-A

100

80 mm

150 mm

—

46HSKA100BBB85180

HSK-A

100

85 mm

180 mm

—

46HSKA100BBB90180

HSK-A

100

90 mm

180 mm

—

46HSKA100BBB95180

HSK-A

100

95 mm

180 mm

—

46BT30BBB030060

—

30 mm

60 mm

46ISO30BBB030060

SK / ISO

—

30 mm

60 mm

46BT30BBB030120

—

30 mm

120 mm

46ISO30BBB030120

SK / ISO

—

30 mm

120 mm

46BT30BBB030150

—

30 mm

150 mm

46ISO30BBB030150

SK / ISO

—

30 mm

150 mm

46BT30BBB035060

—

35 mm

60 mm

46ISO30BBB035060

SK / ISO

—

35 mm

60 mm

46BT30BBB035120

—

35 mm

120 mm

46ISO30BBB035120

SK / ISO

—

35 mm

120 mm

46BT30BBB035150

—

35 mm

150 mm

46ISO30BBB035150

SK / ISO

—

35 mm

150 mm

46BT30BBB040080

—

40 mm

80 mm

46ISO30BBB040080

SK / ISO

—

40 mm

80 mm

46BT30BBB040150

—

40 mm

150 mm

46ISO30BBB040150

SK / ISO

—

40 mm

150 mm

46BT30BBB040180

—

40 mm

180 mm

46ISO30BBB040180

SK / ISO

—

40 mm

180 mm

46BT30BBB045100

—

45 mm

100 mm

46ISO30BBB045100

SK / ISO

—

45 mm

100 mm

46BT30BBB045150

—

45 mm

150 mm

46ISO30BBB045150

SK / ISO

—

45 mm

150 mm

46BT30BBB045180

—

45 mm

180 mm

46ISO30BBB045180

SK / ISO

—

45 mm

180 mm

46BT30BBB050100

—

50 mm

100 mm

46ISO30BBB050100

SK / ISO

—

50 mm

100 mm

46BT30BBB050150

—

50 mm

150 mm

46ISO30BBB050150

SK / ISO

—

50 mm

150 mm

46BT30BBB050180

—

50 mm

180 mm

46ISO30BBB050180

SK / ISO

—

50 mm

180 mm

46BT40BBB030060

—

30 mm

60 mm

46ISO40BBB030060

SK / ISO

—

30 mm

60 mm

46BT40BBB030120

—

30 mm

120 mm

46ISO40BBB030120

SK / ISO

—

30 mm

120 mm

46BT40BBB030150

—

30 mm

150 mm

46ISO40BBB030150

SK / ISO

—

30 mm

150 mm

46BT40BBB035060

—

35 mm

60 mm

46ISO40BBB035060

SK / ISO

—

35 mm

60 mm

46BT40BBB035120

—

35 mm

120 mm

46ISO40BBB035120

SK / ISO

—

35 mm

120 mm

46BT40BBB035150

—

35 mm

150 mm

46ISO40BBB035150

SK / ISO

—

35 mm

150 mm

46BT40BBB040080

—

40 mm

80 mm

46ISO40BBB040080

SK / ISO

—

40 mm

80 mm

46BT40BBB040120

—

40 mm

120 mm

46ISO40BBB040120

SK / ISO

—

40 mm

120 mm

46BT40BBB040150

—

40 mm

150 mm

46ISO40BBB040150

SK / ISO

—

40 mm

150 mm

46BT40BBB045100

—

45 mm

100 mm

46ISO40BBB045100

SK / ISO

—

45 mm

100 mm

46BT40BBB045150

—

45 mm

150 mm

46ISO40BBB045150

SK / ISO

—

45 mm

150 mm

46BT40BBB045180

—

45 mm

180 mm

46ISO40BBB045180

SK / ISO

—

45 mm

180 mm

46BT40BBB050100

—

50 mm

100 mm

46ISO40BBB050100

SK / ISO

—

50 mm

100 mm

46BT40BBB050150

—

50 mm

150 mm

46ISO40BBB050150

SK / ISO

—

50 mm

150 mm

46BT40BBB050180

—

50 mm

180 mm

46ISO40BBB050180

SK / ISO

—

50 mm

180 mm

46BT40BBB055120

—

55 mm

120 mm

46ISO40BBB055120

SK / ISO

—

55 mm

120 mm

46BT40BBB055180

—

55 mm

180 mm

46ISO40BBB055180

SK / ISO

—

55 mm

180 mm

46BT40BBB055200

—

55 mm

200 mm

46ISO40BBB055200

SK / ISO

—

55 mm

200 mm

46BT40BBB060120

—

60 mm

120 mm

46ISO40BBB060120

SK / ISO

—

60 mm

120 mm

46BT40BBB060180

—

60 mm

180 mm

46ISO40BBB060180

SK / ISO

—

60 mm

180 mm

46BT40BBB060200

—

60 mm

200 mm

46ISO40BBB060200

SK / ISO

—

60 mm

200 mm

46BT40BBB063120

—

63 mm

120 mm

46ISO40BBB063120

SK / ISO

—

63 mm

120 mm

46BT40BBB063150

—

63 mm

150 mm

46ISO40BBB063150

SK / ISO

—

63 mm

150 mm

46BT40BBB063180

—

63 mm

180 mm

46ISO40BBB063180

SK / ISO

—

63 mm

180 mm

46BT40BBB063200

—

63 mm

200 mm

46ISO40BBB063200

SK / ISO

—

63 mm

200 mm

46BT40BBB063250

—

63 mm

250 mm

46ISO40BBB063250

SK / ISO

—

63 mm

250 mm

46BT40BBB063300

—

63 mm

300 mm

46ISO40BBB063300

SK / ISO

—

63 mm

300 mm

46BT40BBB080150

—

80 mm

150 mm

46ISO40BBB080150

SK / ISO

—

80 mm

150 mm

46BT40BBB080200

—

80 mm

200 mm

46ISO40BBB080200

SK / ISO

—

80 mm

200 mm

46BT40BBB080250

—

80 mm

250 mm

46ISO40BBB080250

SK / ISO

—

80 mm

250 mm

46BT40BBB100120

—

100 mm

120 mm

46ISO40BBB100120

SK / ISO

—

100 mm

120 mm

46BT40BBB100150

—

100 mm

150 mm

46ISO40BBB100150

SK / ISO

—

100 mm

150 mm

46BT40BBB100200

—

100 mm

200 mm

46ISO40BBB100200

SK / ISO

—

100 mm

200 mm

46BT40BBB100250

—

100 mm

250 mm

46ISO40BBB100250

SK / ISO

—

100 mm

250 mm

46BT40BBB120120

—

120 mm

46ISO40BBB120120

SK / ISO

—

120 mm

46BT40BBB120150

—

120 mm

150 mm

46ISO40BBB120150

SK / ISO

—

120 mm

150 mm

46BT40BBB120200

—

120 mm

200 mm

46ISO40BBB120200

SK / ISO

—

120 mm

200 mm

46BT40BBB120250

—

120 mm

250 mm

46ISO40BBB120250

SK / ISO

—

120 mm

250 mm

46BT40BBB120300

—

120 mm

300 mm

46ISO40BBB120300

SK / ISO

—

120 mm

300 mm

46BT50BBB040080

—

40 mm

80 mm

46ISO50BBB040080

SK / ISO

—

40 mm

80 mm

46BT50BBB040150

—

40 mm

150 mm

46ISO50BBB040150

SK / ISO

—

40 mm

150 mm

46BT50BBB040180

—

40 mm

180 mm

46ISO50BBB040180

SK / ISO

—

40 mm

180 mm

46BT50BBB045100

—

45 mm

100 mm

46ISO50BBB045100

SK / ISO

—

45 mm

100 mm

46BT50BBB045180

—

45 mm

180 mm

46ISO50BBB045180

SK / ISO

—

45 mm

180 mm

46BT50BBB045220

—

45 mm

220 mm

46ISO50BBB045220

SK / ISO

—

45 mm

220 mm

46BT50BBB050100

—

50 mm

100 mm

46ISO50BBB050100

SK / ISO

—

50 mm

100 mm

46BT50BBB050180

—

50 mm

180 mm

46ISO50BBB050180

SK / ISO

—

50 mm

180 mm

46BT50BBB050220

—

50 mm

220 mm

46ISO50BBB050220

SK / ISO

—

50 mm

220 mm

46BT50BBB055100

—

55 mm

100 mm

46ISO50BBB055100

SK / ISO

—

55 mm

100 mm

46BT50BBB055180

—

55 mm

180 mm

46ISO50BBB055180

SK / ISO

—

55 mm

180 mm

46BT50BBB055220

—

55 mm

220 mm

46ISO50BBB055220

SK / ISO

—

55 mm

220 mm

46BT50BBB060120

—

60 mm

120 mm

46ISO50BBB060120

SK / ISO

—

60 mm

120 mm

46BT50BBB060180

—

60 mm

180 mm

46ISO50BBB060180

SK / ISO

—

60 mm

180 mm

46BT50BBB060220

—

60 mm

220 mm

46ISO50BBB060220

SK / ISO

—

60 mm

220 mm

46BT50BBB065120

—

65 mm

120 mm

46ISO50BBB065120

SK / ISO

—

65 mm

120 mm

46BT50BBB065180

—

65 mm

180 mm

46ISO50BBB065180

SK / ISO

—

65 mm

180 mm

46BT50BBB065220

—

65 mm

220 mm

46ISO50BBB065220

SK / ISO

—

65 mm

220 mm

46BT50BBB070150

—

70 mm

150 mm

46ISO50BBB070150

SK / ISO

—

70 mm

150 mm

46BT50BBB070200

—

70 mm

200 mm

46ISO50BBB070200

SK / ISO

—

70 mm

200 mm

46BT50BBB070250

—

70 mm

250 mm

46ISO50BBB070250

SK / ISO

—

70 mm

250 mm

46BT50BBB070300

—

70 mm

300 mm

46ISO50BBB070300

SK / ISO

—

70 mm

300 mm

46BT50BBB080150

—

80 mm

150 mm

46ISO50BBB080150

SK / ISO

—

80 mm

150 mm

46BT50BBB080200

—

80 mm

200 mm

46ISO50BBB080200

SK / ISO

—

80 mm

200 mm

46BT50BBB080250

—

80 mm

250 mm

46ISO50BBB080250

SK / ISO

—

80 mm

250 mm

46BT50BBB080300

—

80 mm

300 mm

46ISO50BBB080300

SK / ISO

—

80 mm

300 mm

46BT50BBB080350

—

80 mm

350 mm

46ISO50BBB080350

SK / ISO

—

80 mm

350 mm

46BT50BBB085180

—

85 mm

180 mm

46ISO50BBB085180

SK / ISO

—

85 mm

180 mm

46BT50BBB085220

—

85 mm

220 mm

46ISO50BBB085220

SK / ISO

—

85 mm

220 mm

46BT50BBB085280

—

85 mm

280 mm

46ISO50BBB085280

SK / ISO

—

85 mm

280 mm

46BT50BBB085320

—

85 mm

320 mm

46ISO50BBB085320

SK / ISO

—

85 mm

320 mm

46BT50BBB095180

—

95 mm

180 mm

46ISO50BBB095180

SK / ISO

—

95 mm

180 mm

46BT50BBB095280

—

95 mm

280 mm

46ISO50BBB095280

SK / ISO

—

95 mm

280 mm

46BT50BBB095320

—

95 mm

320 mm

46ISO50BBB095320

SK / ISO

—

95 mm

320 mm

46BT50BBB120120

—

120 mm

46ISO50BBB120120

SK / ISO

—

120 mm

46BT50BBB120150

—

120 mm

150 mm

46ISO50BBB120150

SK / ISO

—

120 mm

150 mm

46BT50BBB120200

—

120 mm

200 mm

46ISO50BBB120200

SK / ISO

—

120 mm

200 mm

46BT50BBB120250

—

120 mm

250 mm

46ISO50BBB120250

SK / ISO

—

120 mm

250 mm

46BT50BBB120300

—

120 mm

300 mm

46ISO50BBB120300

SK / ISO

—

120 mm

300 mm

Frequently asked questions

What is the Boring Bar Blanks BBB?

Boring Bar Blanks BBB (MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A)) is a precision CNC Tool Holders product manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned. Boring Bar Blanks BBB with hard, wear-resistant shank and tough, machinable tool side (HRc 28-32). For custom boring bar manufacturing.

Which shank types are available for Boring Bar Blanks BBB?

Boring Bar Blanks BBB is available in HSK-A, BT, SK / ISO shanks. Across these shanks there are 216 catalogue ordering codes to choose from.

What standard does the Boring Bar Blanks BBB conform to?

The Boring Bar Blanks BBB conforms to MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A). Every unit is MPT-tested (Magnetic Particle Testing) and proof-tested at 2.5× clamping force before dispatch.

Who manufactures the Boring Bar Blanks BBB and where?

Boring Bar Blanks BBB is manufactured by PTP CNC Toolings Pvt. Ltd. — a precision tool-holder manufacturer in Belgaum, Karnataka, India, established 1985, ISO 9001 certified and IATF aligned. Contact sales at +91-9538456478 or ptpcnc@ptpcnctoolings.com for pricing, DXF/STEP CAD files, and lead times.

+91 95384 56478 ptpcnc@ptpcnctoolings.com

Belgaum, India

HSK shank

Boring Bar Blanks BBB

MAS BT (ISO 7388-2-J), DIN 69871 (ISO 7388-1-A) · Cat. Pages 65-66

Also Made in Shanks: CAT ANSI/ASME B5.50 | ISO 12164-1 (DIN 69893-1) HSK | DIN 2080 - IS 2340

Hard Wear Resistant Shank
Tough and Machinable Tool Side HRc 28-32

Boring Bar Blanks BBB

HSKTechnical Drawing

Ordering Codes — Boring Bar Blanks BBB (HSK-A)

Specifications

Boring Bar Blanks BBB

HSKTechnical Drawing

Ordering Codes — Boring Bar Blanks BBB (HSK-A)

Specifications

Ordering Code	Size	d	GPL	Stock
46HSKA50BBB3060	HSK-A 50	30	60	—
46HSKA50BBB3560	HSK-A 50	35	60	—
46HSKA50BBB4080	HSK-A 50	40	80	—
46HSKA50BBB45100	HSK-A 50	45	100	—
46HSKA50BBB50100	HSK-A 50	50	100	—
46HSKA50BBB55120	HSK-A 50	55	120	—
46HSKA50BBB60120	HSK-A 50	60	120	—
46HSKA63BBB3060	HSK-A 63	30	60	—
46HSKA63BBB3560	HSK-A 63	35	60	—
46HSKA63BBB4080	HSK-A 63	40	80	—
46HSKA63BBB45100	HSK-A 63	45	100	—
46HSKA63BBB50100	HSK-A 63	50	100	—
46HSKA63BBB55120	HSK-A 63	55	120	—
46HSKA63BBB60120	HSK-A 63	60	120	—
46HSKA63BBB65120	HSK-A 63	65	120	—
46HSKA63BBB70120	HSK-A 63	70	120	—
46HSKA63BBB80120	HSK-A 63	80	120	—
46HSKA63BBB85120	HSK-A 63	85	120	—
46HSKA100BBB4080	HSK-A 100	40	80	—
46HSKA100BBB45100	HSK-A 100	45	100	—
46HSKA100BBB50100	HSK-A 100	50	100	—
46HSKA100BBB55100	HSK-A 100	55	100	—
46HSKA100BBB60120	HSK-A 100	60	120	—
46HSKA100BBB65120	HSK-A 100	65	120	—
46HSKA100BBB70150	HSK-A 100	70	150	—
46HSKA100BBB75150	HSK-A 100	75	150	—
46HSKA100BBB80150	HSK-A 100	80	150	—
46HSKA100BBB85180	HSK-A 100	85	180	—
46HSKA100BBB90180	HSK-A 100	90	180	—
46HSKA100BBB95180	HSK-A 100	95	180	—
